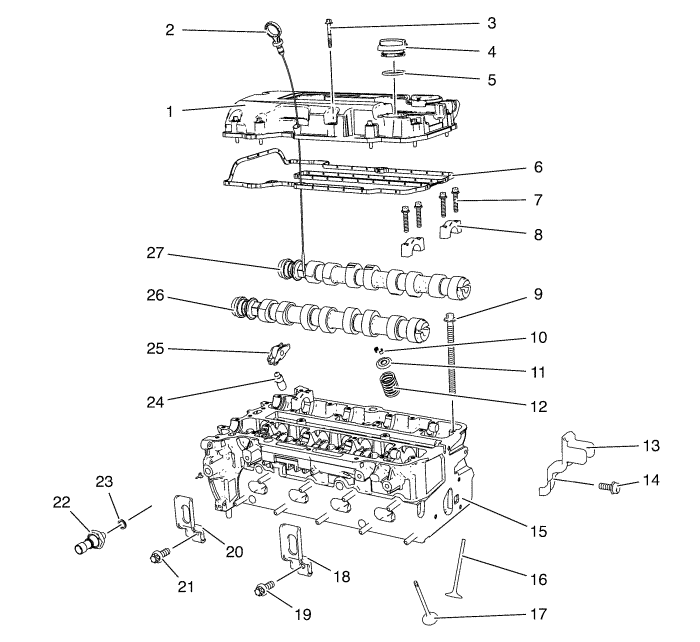

| (1) | Camshaft Cover |
| (2) | Oil Level Indicator |
| (3) | Camshaft Cover Bolt |
| (4) | Oil Filler Cap |
| (5) | Oil Filler Cap Seal Ring |
| (6) | Camshaft Cover Gasket |
| (7) | Camshaft Bearing Cap Bolt |
| (8) | Camshaft Bearing Cap |
| (9) | Cylinder Head Bolt |
| (10) | Valve Keys |
| (11) | Valve Spring Retainer |
| (12) | Valve Spring |
| (13) | Engine Lift Bracket Left Side |
| (14) | Engine Lift Bracket Bolt |
| (15) | Cylinder Head |
| (16) | Inlet Valve |
| (17) | Exhaust Valve |
| (18) | Engine Lift Bracket |
| (19) | Engine Lift Bracket Bolt |
| (20) | Engine Lift Bracket |
| (21) | Engine Lift Bracket Bolt |
| (22) | Oil Pressure Indicator Switch |
| (23) | Oil Pressure Indicator Switch Seal Ring |
| (24) | Hydraulic Valve Clearance Adjuster |
| (25) | Hydraulic Valve Clearance Adjuster Arm |
| (26) | Exhaust Camshaft |
| (27) | Intake Camshaft |
