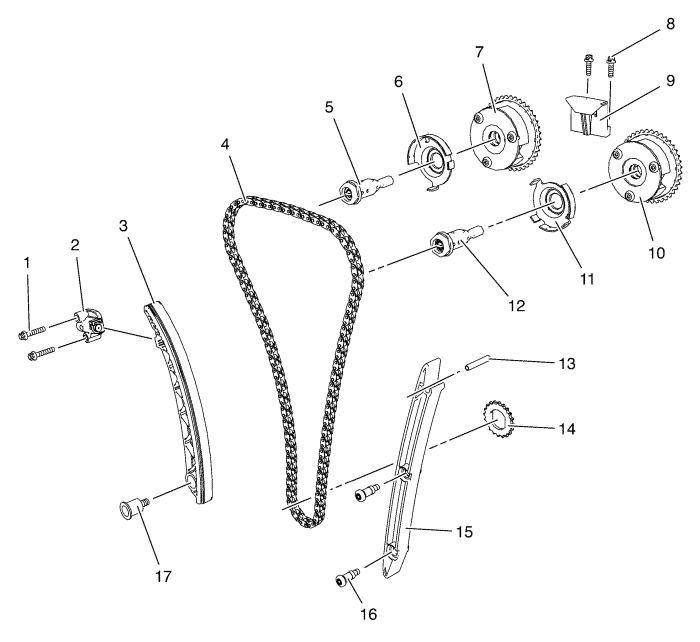

| (1) | Timing Chain Tensioner Bolt |
| (2) | Timing Chain Tensioner |
| (3) | Timing Chain Tensioner Shoe |
| (4) | Camshaft Timing Chain |
| (5) | Intake Camshaft Sprocket Bolt (With Actuator) |
| (6) | Intake Camshaft Position Sensor Exciter Wheel |
| (7) | Intake Camshaft Sprocket (With Position Actuator) |
| (8) | Upper Timing Chain Guide Bolt |
| (9) | Upper Timing Chain Guide |
| (10) | Exhaust Camshaft Sprocket (With Position Actuator) |
| (11) | Exhaust Camshaft Position Sensor Exciter Wheel |
| (12) | Exhaust Camshaft Sprocket Bolt (With Actuator) |
| (13) | Timing Chain Guide Pivot Pin |
| (14) | Crankshaft Sprocket |
| (15) | Timing Chain Guide Right Side |
| (16) | Timing Chain Guide Bolt |
| (17) | Timing Chain Tensioner Shoe Bolt |
