Cruze |
||||||||
|
|
|
|||||||

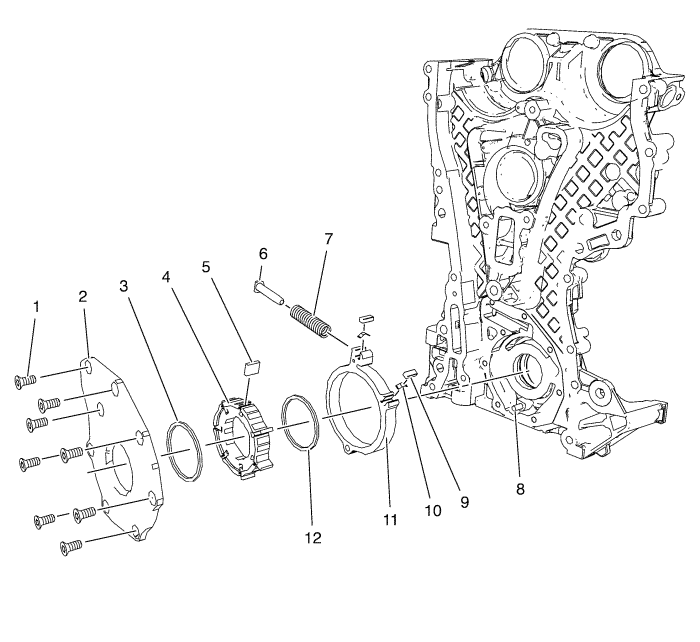

| (1) | Oil Pump Cover Bolt |
| (2) | Oil Pump Cover |
| (3) | Oil Pump Vane Ring |
| (4) | Oil Pump Vane Rotor |
| (5) | Oil Pump Vane |
| (6) | Oil Pump Slide Spring Pin |
| (7) | Oil Pump Slide Spring |
| (8) | Oil Pump Slide Pivot Pin |
| (9) | Oil Pump Slide Seal |
| (10) | Oil Pump Slide Seal Spring |
| (11) | Oil Pump Slide |
| (12) | Oil Pump Vane Ring |
