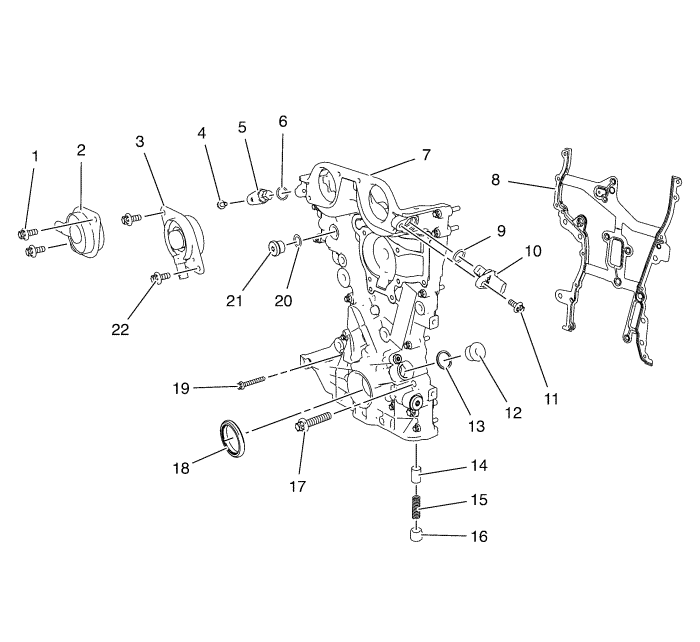

| (1) | Camshaft Position Actuator Solenoid Valve Bolt |
| (2) | Intake Camshaft Position Actuator Solenoid Valve |
| (3) | Exhaust Camshaft Position Actuator Solenoid Valve |
| (4) | Intake Camshaft Position Sensor Bolt |
| (5) | Intake Camshaft Position Sensor |
| (6) | Intake Camshaft Position Sensor Seal Ring |
| (7) | Engine Front Cover |
| (8) | Engine Front Cover Gasket |
| (9) | Exhaust Camshaft Position Sensor Seal Ring |
| (10) | Exhaust Camshaft Position Sensor |
| (11) | Exhaust Camshaft Position Sensor Bolt |
| (12) | Engine Front Cover Oil Gallery Plug |
| (13) | Engine Front Cover Oil Gallery Plug Seal Ring |
| (14) | Oil Pressure Relief Valve Piston |
| (15) | Oil Pressure Relief Valve Spring |
| (16) | Oil Pressure Relief Valve Plug |
| (17) | Engine Front Cover Bolt (M10) |
| (18) | Crankshaft Front Oil Seal |
| (19) | Engine Front Cover Bolt (M6) |
| (20) | Water Drain Plug Seal Ring |
| (21) | Water Drain Plug |
| (22) | Exhaust Camshaft Position Actuator Solenoid Valve Bolt |
