X80L Accessory Power Receptacle - Rear Console (KC7)

2216903

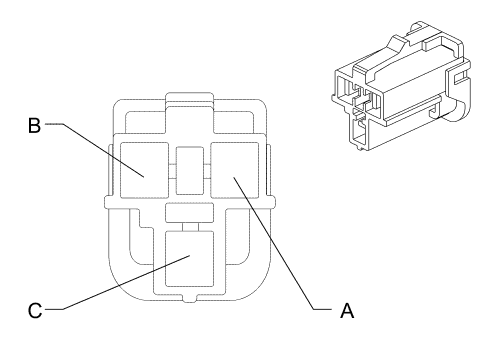

Connector Part Information

Harness: Console
OEM: 12176836
Service: 15305923
Description: 3-Way F Metri-Pack 280 Series (GY)

Terminal Part Information

Terminated Lead: 13575721
Release Tool: -38125-553
Diagnostic Test Probe: J-35616-4A (PU)

X80L Accessory Power Receptacle - Rear Console (KC7)

Pin	Wire	Circuit	Function
A	1 VT	801	Retained Accessory Power Fuse Supply Voltage
A	1 VT	801	Retained Accessory Power Fuse Supply Voltage
C	1 BK	50	Ground
C	1 BK	50	Ground
