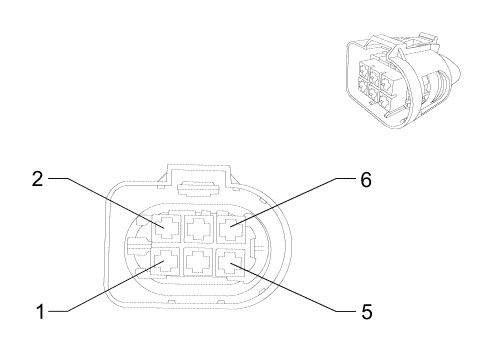

Connector Part Information

• Harness: Body
• OEM: 09401630
• Service: Pending
• Description: 6-Way Female (BK)

Terminal Part Information

• Terminated Lead: 13578910
• Release Tool: J-38125-12A
• Diagnostic Test Probe: J-35616-35 (VT)

1

2.5 BK

50

Ground

2

0.5 BN

6305

Brake Vacuum Switch Signal

5

2.5 RD/VT

40

Battery Positive Voltage
