Connector Part Information

• Harness: Forward Lamp
• OEM: 9133087
• Service: Pending

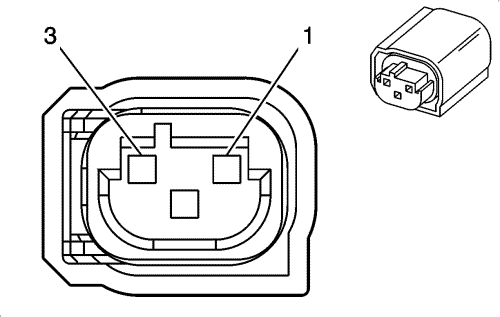

• Description: 3-Way F 0.64 Micro Quadlok Series, Sealed (GY)

Terminal Part Information

• Terminated Lead: 13575567
• Release Tool: J-38125-12A
• Diagnostic Test Probe: J-35616-64B (L-BU)

1

0.5 VT/D-GN

39

Ignition Voltage

2

0.5 BK

50

Ground

3

0.5 VT/WH

5203

Air Quality Sensor Signal
