Cruze |
||||||||
|
|
|
|||||||

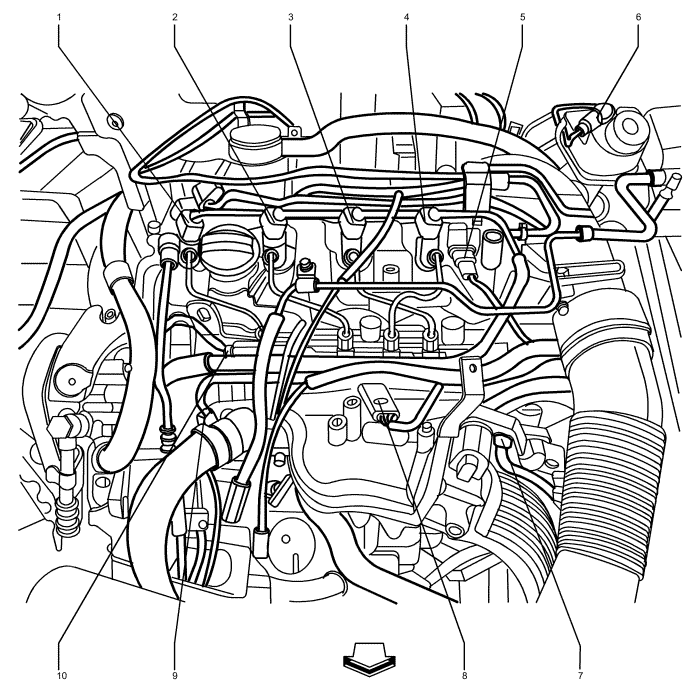

| (1) | Q17A Fuel Injector 1 |
| (2) | Q17B Fuel Injector 2 |
| (3) | Q17C Fuel Injector 3 |
| (4) | Q17D Fuel Injector 4 |
| (5) | B23 Camshaft Position Sensor |
| (6) | B20 Brake Fluid Level Switch |
| (7) | Q38 Throttle Body |
| (8) | B111 Turbocharger Boost Sensor |
| (9) | B34 Engine Coolant Temperature Sensor |
| (10) | B47B Fuel Rail Pressure Sensor |
