Cruze |
||||||||
|
|
|
|||||||

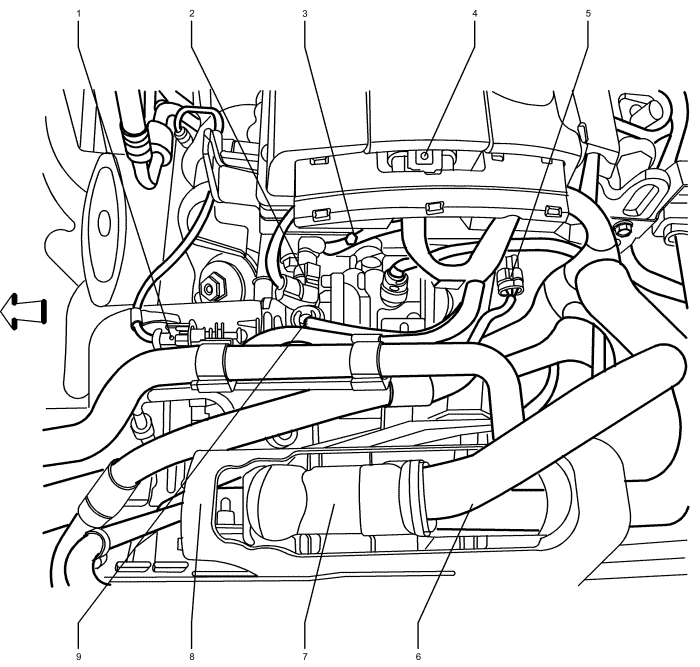

| (1) | B52A Heated Oxygen Sensor 1 |
| (2) | B23E Camshaft Position Sensor - Exhaust |
| (3) | G112 |
| (4) | T8 Ignition Coil |
| (5) | B23F Camshaft Position Sensor - Intake |
| (6) | Engine Control Module X2 |
| (7) | Engine Control Module X1 |
| (8) | K20 Engine Control Module |
| (9) | E41 Engine Coolant Thermostat Heater |
