Cruze |
||||||||
|
|
|
|||||||

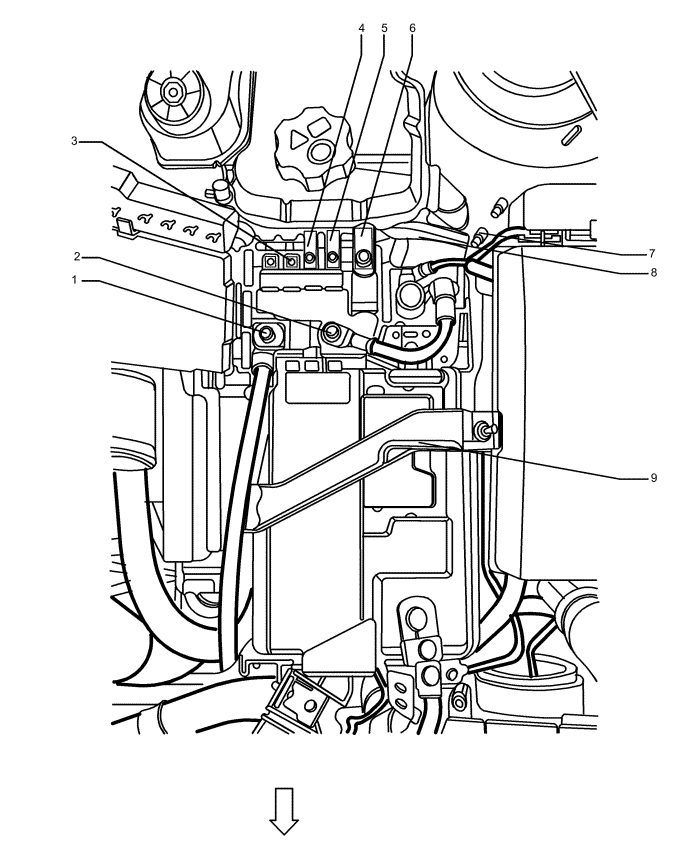

| (1) | X50D Fuse Block - Battery X5 |
| (2) | X50D Fuse Block - Battery X1 |
| (3) | X50D Fuse Block - Battery X6 |
| (4) | X50D Fuse Block - Battery X4 |
| (5) | X50D Fuse Block - Battery X3 |
| (6) | X50D Fuse Block - Battery X2 |
| (7) | G122 Engine Compartment - Front Left |
| (8) | X50D Fuse Block - Battery |
| (9) | C1 Battery |
