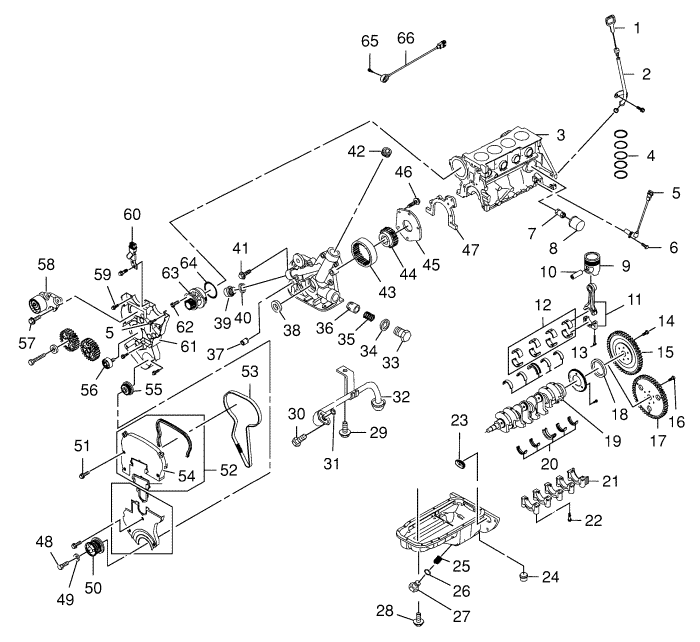

| (1) | Oil Level Indicator |
| (2) | Oil Level Indicator Tube |
| (3) | Engine Block |
| (4) | Piston Rings |
| (5) | Crankshaft Position Sensor |
| (6) | Crankshaft Position Sensor Bolt |
| (7) | Oil Filter Adapter |
| (8) | Oil Filter |
| (9) | Piston |
| (10) | Gudgeon pin |
| (11) | Connecting Rod |
| (12) | Big end bearing |
| (13) | Connecting Rod Bolt |
| (14) | Flywheel Bolt |
| (15) | Engine Flywheel |
| (16) | Automatic Transmission Flex Plate Bolt |
| (17) | Automatic Transmission Flex Plate |
| (18) | Crankshaft Rear Oil Seal |
| (19) | Crankshaft |
| (20) | Crankshaft Bearing |
| (21) | Crankshaft Bearing Cap |
| (22) | Crankshaft Bearing Cap Bolt |
| (23) | Cylinder Block Cap |
| (24) | Grommet |
| (25) | Sump Drain Plug Thread Insert |
| (26) | Sump Drain Plug Gasket |
| (27) | Sump Drain Plug |
| (28) | Sump Bolt |
| (29) | Oil Pump Suction Pipe Bolt |
| (30) | Oil Pump Suction Pipe Bolt |
| (31) | Oil Pump Suction Pipe Sealing |
| (32) | Oil Pump Suction Pipe |
| (33) | Oil Pressure Relief Valve Bore Plug |
| (34) | Oil Pressure Relief Valve Gasket |
| (35) | Oil Pressure Relief Valve Spring |
| (36) | Oil Pressure Relief Valve |
| (37) | Sleeve |
| (38) | Crankshaft Front Oil Seal |
| (39) | Engine Oil Pressure Indicator Switch |
| (40) | Engine Oil Pressure Indicator Switch Terminal Washer |
| (41) | Oil Pump Housing |
| (42) | Bolt Plug |
| (43) | Oil Pump Outer Rotor |
| (44) | Oil Pump Inner Rotor |
| (45) | Oil Pump Cover |
| (46) | Oil Pump Bolt |
| (47) | Oil Pump Housing Gasket |
| (48) | Crankshaft Pulley Bolt |
| (49) | Crankshaft Pulley Bolt Washer |
| (50) | Crankshaft Pulley |
| (51) | Timing Belt Upper Cover Bolt |
| (52) | Timing Belt Front Upper Cover Seal |
| (53) | Timing Belt |
| (54) | Timing Belt Front Upper Cover |
| (55) | Crankshaft Sprocket |
| (56) | Timing Belt Idler Pulley |
| (57) | Timing Belt Tensioner Bolt |
| (58) | Timing Belt Tensioner |
| (59) | Timing Belt Rear Cover Bolt |
| (60) | Camshaft Position Sensor |
| (61) | Timing Belt Rear Cover |
| (62) | Water Pump Bolt |
| (63) | Water Pump |
| (64) | Water Pump Gasket |
| (65) | Knock Sensor Bolt |
| (66) | Knock Sensor |
