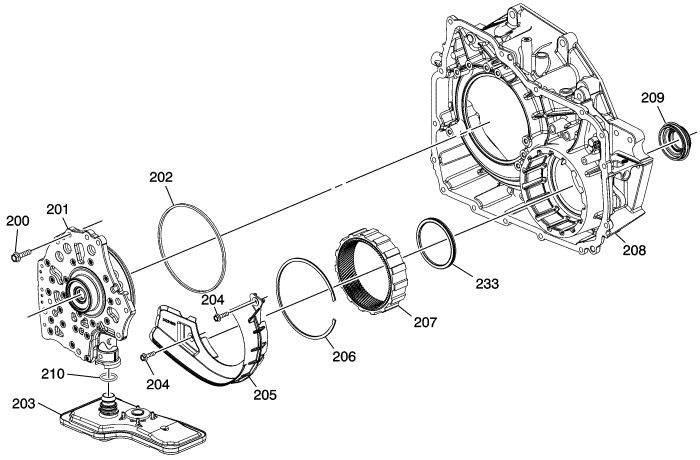

Cruze |
||||||||
|
|
|
|||||||
| (200) | A/Trans Fluid Pump Bolt |
| (201) | A/Trans Fluid Pump Assembly |
| (202) | Torque Converter and Differential Housing Seal |
| (203) | A/Trans Fluid Filter Assembly |
| (204) | Front Differential Carrier Baffle Bolt |
| (205) | Front Differential Carrier Baffle |
| (206) | Front Differential Ring Gear Retainer |
| (207) | Front Differential Ring Gear |
| (208) | Torque Converter and Differential Housing |
| (209) | Front Wheel Drive Shaft Oil Seal Assembly |
| (210) | A/Trans Fluid Filter Seal |
| (233) | Front Differential Carrier Bearing Assembly |
