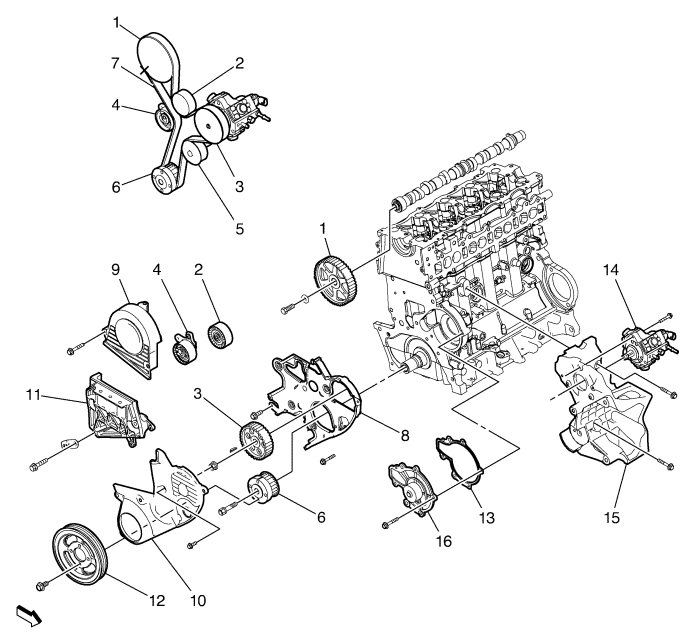

Cruze |
||||||||
|
|
|
|||||||
| (1) | Camshaft Drive Sprocket |
| (2) | Timing Belt Idler Pulley |
| (3) | Fuel Injection Pump Drive Pulley |
| (4) | Timing Belt Tensioner |
| (5) | Water Pump Drive Pulley |
| (6) | Crankshaft Sprocket |
| (7) | Timing Belt |
| (8) | Timing Belt Rear Cover |
| (9) | Timing Belt Upper Front Cover |
| (10) | Timing Belt Lower Front Cover |
| (11) | Engine Mount Bracket |
| (12) | Crankshaft Pulley |
| (13) | Water Pump Gasket |
| (14) | Fuel Injection Pump |
| (15) | Generator and Air Conditioning Compressor Bracket |
| (16) | Water Pump |
