Cruze |
||||||||
|
|
|
|||||||

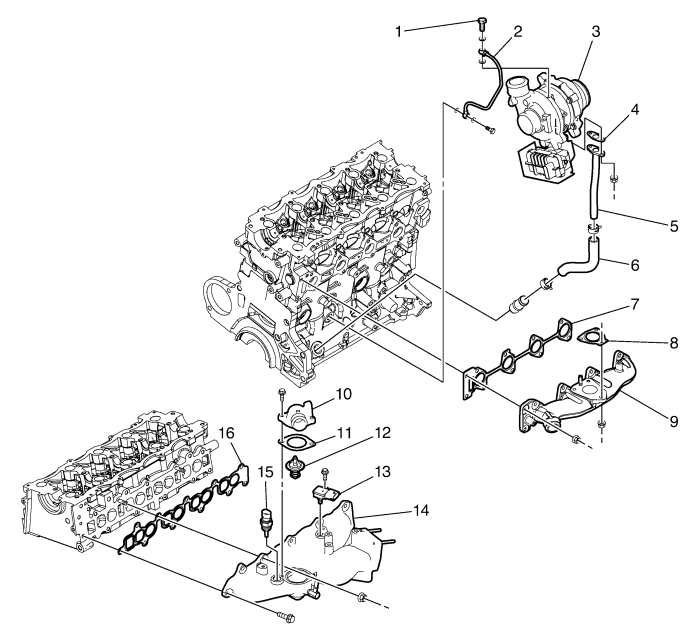

| (1) | Turbocharger Oil Inlet Pipe Bolt |
| (2) | Turbocharger Oil Inlet Pipe |
| (3) | Turbocharger |
| (4) | Turbocharger Oil Outlet Pipe Gasket |
| (5) | Turbocharger Oil Outlet Pipe |
| (6) | Turbocharger Oil Outlet Hose |
| (7) | Exhaust Manifold Gasket |
| (8) | Turbocharger Gasket |
| (9) | Exhaust Manifold |
| (10) | Thermostat Housing |
| (11) | Thermostat Housing Gasket |
| (12) | Thermostat |
| (13) | Intake Manifold Absolute Pressure Sensor |
| (14) | Inlet Manifold |
| (15) | Coolant Temperature Sensor |
| (16) | Inlet Manifold Gasket |
