Cruze |
||||||||
|
|
|
|||||||

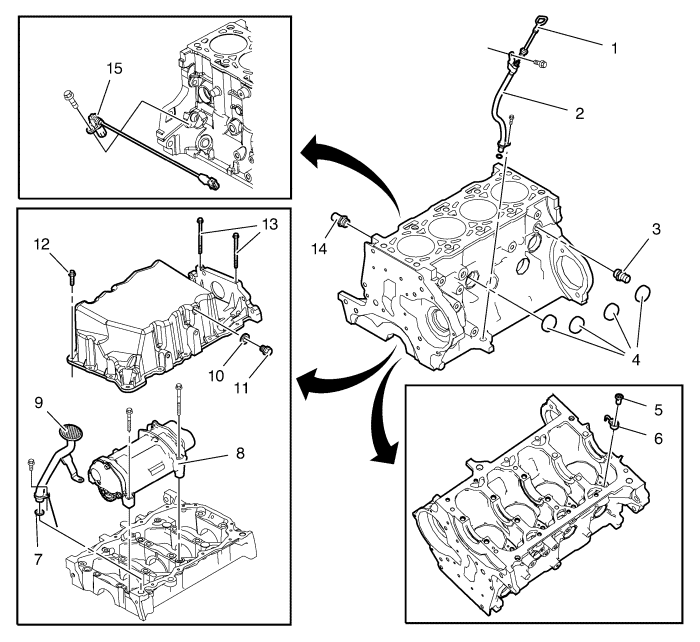

| (1) | Oil Level Indicator |
| (2) | Oil Level Indicator Tube |
| (3) | Coolant Adapter |
| (4) | Plug |
| (5) | Piston Oil Nozzle Tube Bolt |
| (6) | Piston Oil Nozzle Tube |
| (7) | O-Ring |
| (8) | Crankshaft Balancer |
| (9) | Oil Pump Suction Pipe |
| (10) | Oil Drain Plug Washer |
| (11) | Oil Drain Plug |
| (12) | Sump Bolt |
| (13) | Sump Bolt |
| (14) | Coolant Adapter |
| (15) | Crankshaft Position Sensor |
