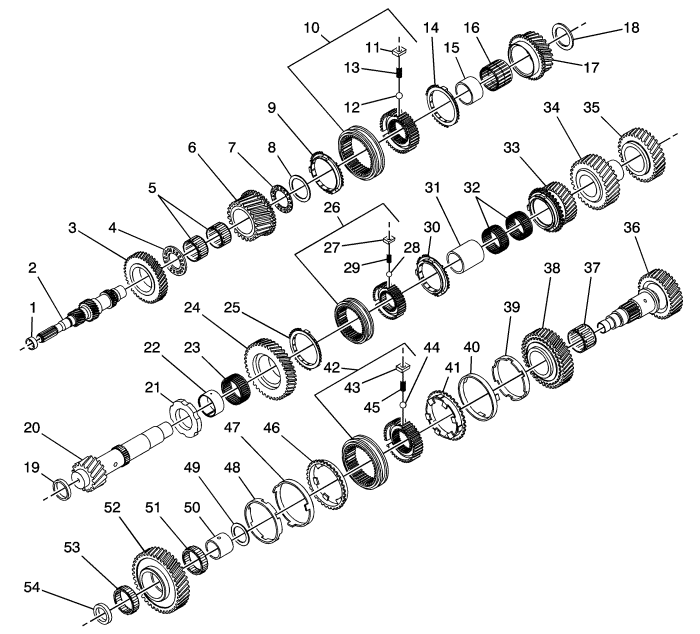

| (1) | Sleeve Bearing |
| (2) | Input Shaft |
| (3) | 5th Gear |
| (4) | Thrust Bearing |
| (5) | Needle Bearing |
| (6) | 3rd Speed Gear |
| (7) | Thrust Bearing |
| (8) | Thrust Washer |
| (9) | 3rd Gear Blocking Ring |
| (10) | 3rd/4th Synchroniser Assembly |
| (11) | Synchroniser Key |
| (12) | Ball |
| (13) | Compression Spring |
| (14) | 4th Gear Blocking Ring |
| (15) | Bearing Collar |
| (16) | Needle Bearing |
| (17) | 4th Speed Gear |
| (18) | Thrust Washer |
| (19) | Bearing Blocker Ring |
| (20) | Output Shaft |
| (21) | Thrust Washer |
| (22) | Bearing Collar |
| (23) | Needle Bearing |
| (24) | Reverse Gear |
| (25) | Reverse Blocking Gear |
| (26) | 5th/Reverse Synchroniser Assembly |
| (27) | Synchroniser Key |
| (28) | Ball |
| (29) | Compressing Spring |
| (30) | 5th Gear Blocking Ring |
| (31) | Bearing Collar |
| (32) | Needle Bearing |
| (33) | 5th Speed Gear |
| (34) | 3rd Gear |
| (35) | 4th Gear |
| (36) | Interm Shaft |
| (37) | Needle Bearing |
| (38) | 2nd Speed Gear |
| (39) | 2nd Gear Inner Core |
| (40) | 2nd Gear Blocking Ring |
| (41) | 2nd Gear Outer Cone |
| (42) | 1st/2nd Synchroniser Assembly |
| (43) | Synchroniser Key |
| (44) | Ball |
| (45) | Compression Spring |
| (46) | 1st Gear Outer Cone |
| (47) | 1st Gear Blocking Ring |
| (48) | 1st Gear Inner Cone |
| (49) | Thrust Washer |
| (50) | Bearing Collar |
| (51) | Roller Bearing |
| (52) | 1st Speed Gear |
| (53) | Roller Bearing |
| (54) | Thrust Washer |
