Cruze |
||||||||
|
|
|
|||||||

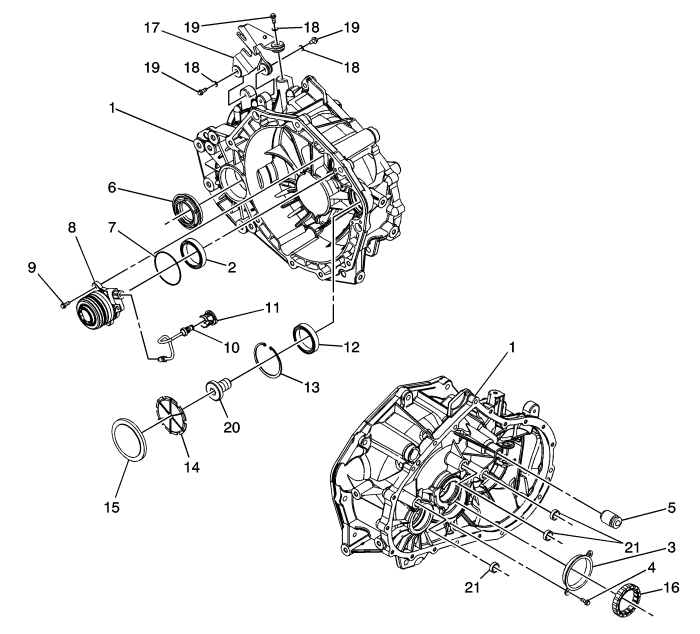

| (1) | Clutch Housing |
| (2) | Roller Bearing |
| (3) | Outer Roller Bearing |
| (4) | Bolt |
| (5) | Manual Shaft Detent |
| (6) | Front Wheel Drive Shaft Seal Ring |
| (7) | O-Ring |
| (8) | Clutch Actuator Cylinder |
| (9) | Bolt |
| (10) | Clutch Actuator Cylinder Pipe |
| (11) | Bushing |
| (12) | Groove Ball Bearing |
| (13) | Ring |
| (14) | Oil Pipe |
| (15) | Sealing Plug |
| (16) | Roller Bearing |
| (17) | Cable Bracket |
| (18) | Washer |
| (19) | Bolt |
| (20) | Retainer Plug |
| (21) | Bushing |
