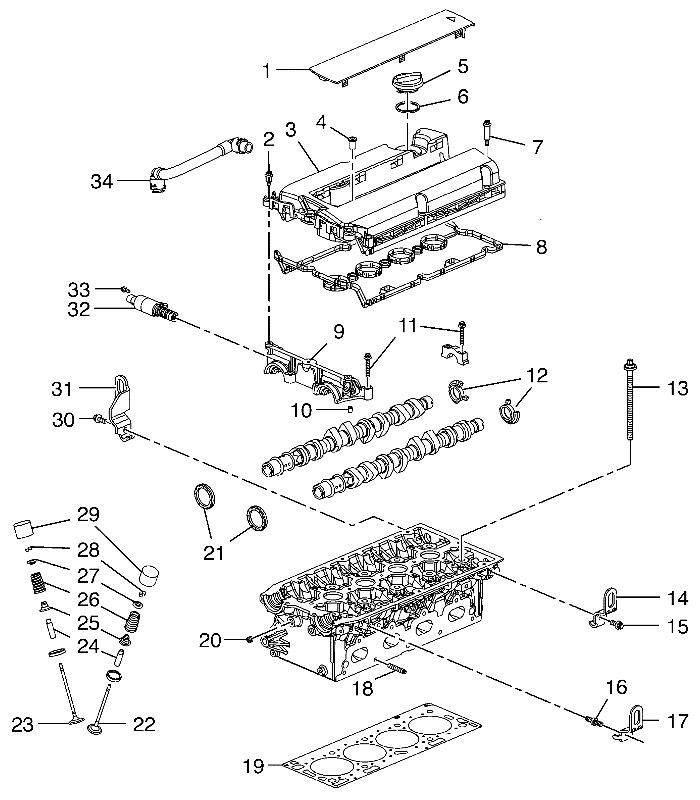

| (1) | DIS Ignition Module Cover |
| (2) | Camshaft Cover Bolt |
| (3) | Camshaft Cover |
| (4) | Plug |
| (5) | Oil Fill In Cover |
| (6) | Oil Fill In Cover Gasket |
| (7) | Camshaft Cover Bolt |
| (8) | Camshaft Cover Gasket |
| (9) | Camshaft Front Bearing Cap |
| (10) | Plug |
| (11) | Camshaft Bearing Cap Bolt |
| (12) | Camshaft Position Sensor Exciter |
| (13) | Cylinder Head Bolt |
| (14) | Engine Lift Bracket Front Right |
| (15) | Engine Lift Bracket Front Right Bolt |
| (16) | Engine Lift Bracket Front Right Stud |
| (17) | Engine Lift Bracket Front Right |
| (18) | Exhaust Manifold Stud |
| (19) | Cylinder Head Gasket |
| (20) | Plug |
| (21) | Camshaft Front Oil Seal |
| (22) | Exhaust Valve |
| (23) | Inlet Valve |
| (24) | Valve Guide |
| (25) | Valve Stem Oil Seal |
| (26) | Valve Spring |
| (27) | Valve Spring Retainer |
| (28) | Valve Key |
| (29) | Tappet |
| (30) | Engine Lift Bracket Rear Left |
| (31) | Engine Lift Bracket Rear Left Bolt |
| (32) | Camshaft Position Actuator |
| (33) | Camshaft Position Actuator Screw |
| (34) | Positive Crankcase Ventilation Pipe |
