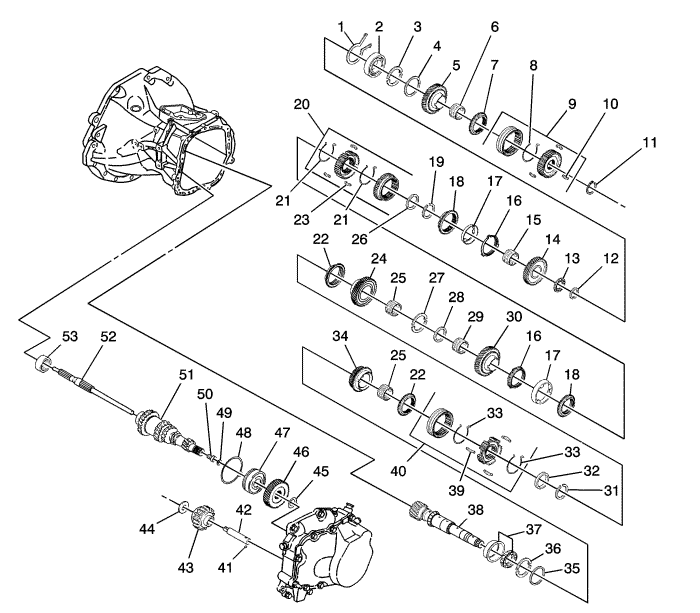

| (1) | Retaining Ring |
| (2) | Groove Ball Bearing |
| (3) | Washer |
| (4) | Retaining Ring |
| (5) | 5th Gear |
| (6) | Needle Cage |
| (7) | Synchroniser Ring |
| (8) | 5th Synchroniser Spring |
| (9) | 5th Shift Sleeve |
| (10) | 5th Synchroniser Key |
| (11) | Retaining Ring |
| (12) | Main Shaft Disc |
| (13) | Needle Cage |
| (14) | 1st Gear |
| (15) | Needle Cage |
| (16) | Inside Synchroniser Ring |
| (17) | Intermediate Ring |
| (18) | Outside Synchroniser Ring |
| (19) | Circlip |
| (20) | Sliding Gear |
| (21) | 1st and 2nd Synchroniser Spring |
| (22) | Synchroniser Ring |
| (23) | 1st and 2nd Synchroniser Key |
| (24) | 3rd Gear |
| (25) | Needle Cage |
| (26) | Washer |
| (27) | Washer |
| (28) | Washer Retaining Ring |
| (29) | Needle Cage |
| (30) | 2nd Gear |
| (31) | Circlip |
| (32) | Washer |
| (33) | 3rd and 4th Synchroniser Spring |
| (34) | 4th Gear |
| (35) | Washer Retaining Ring |
| (36) | Washer |
| (37) | Roller Bearing |
| (38) | Transmission Main Shaft |
| (39) | Synchroniser Key |
| (40) | Shift Sleeve |
| (41) | Ball |
| (42) | Reverse Idler Gear Shaft |
| (43) | Reverse Idler Gear |
| (44) | Washer |
| (45) | Retaining Ring |
| (46) | Cluster 5th Gear |
| (47) | Groove Ball Bearing |
| (48) | Cluster Bearing Ring |
| (49) | Retaining Ring |
| (50) | Bolt |
| (51) | Input Shaft Cluster Gear |
| (52) | Input Shaft |
| (53) | Needle Sleeve |
