Warning: Refer to Exhaust Service Warning in the Preface section.

Warning: Refer to Protective Goggles and Glove Warning in the Preface section.

Preliminary Procedure

Remove the turbocharger. Refer to Turbocharger Replacement .

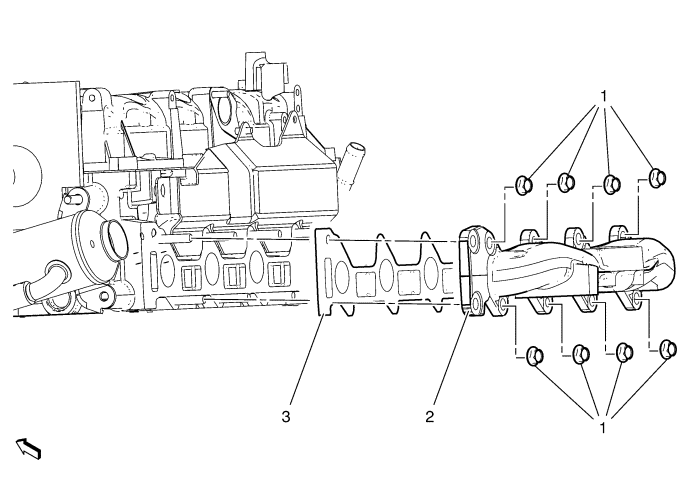

1

Exhaust Manifold Nuts (Qty: 8).

Caution: Refer to Fastener Caution in the Preface section.

Tighten
33 N·m (25 lb ft)

2

Exhaust Manifold

3

Exhaust Manifold Gasket
