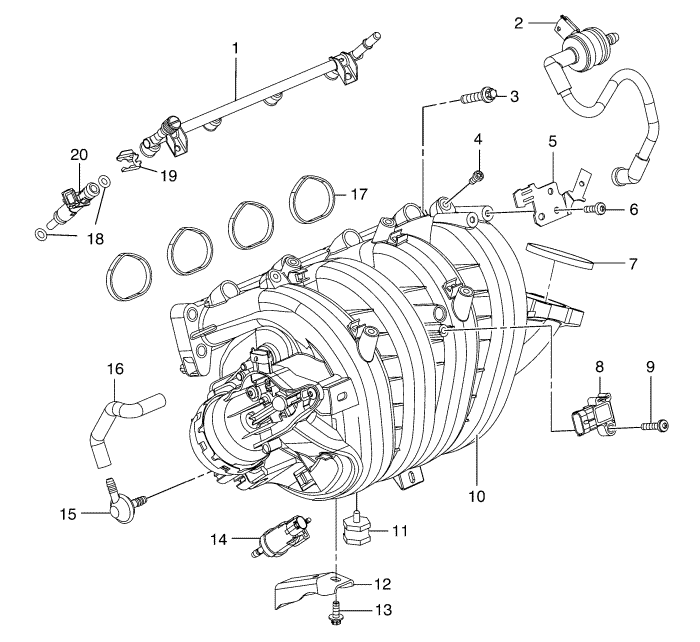

| (1) | Fuel Injection Fuel Rail |
| (2) | Pipe Assembly Fuel Evaporation Control |
| (3) | Inlet Manifold Bolt |
| (4) | Fuel Injection Fuel Rail Bolt |
| (5) | Fuel Evaporation Control Bracket |
| (6) | Fuel Evaporation Control Bracket Bolt |
| (7) | Throttle Body Seal |
| (8) | MAP Sensor |
| (9) | MAP Sensor Bolt |
| (10) | Inlet Manifold |
| (11) | Inlet Manifold Mount |
| (12) | Inlet Manifold Bracket |
| (13) | Inlet Manifold Bracket Bolt |
| (14) | Inlet Manifold Runner Control Valve |
| (15) | Non Return Valve |
| (16) | Non Return Valve Hose |
| (17) | Manifold to Cylinder Head Gasket |
| (18) | Fuel Injector Seal |
| (19) | Spring Clip |
| (20) | Fuel Injector |
