Cruze |
||||||||
|
|
|
|||||||

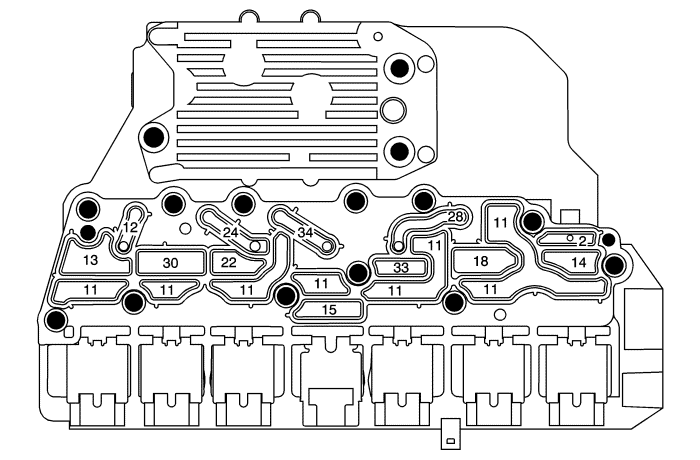

| (2) | Line |
| (11) | Actuator Feed Limit |
| (12) | PS3 |
| (13) | PCS Line |
| (14) | PCS R1/456 Clutch |
| (15) | Shift Solenoid |
| (18) | PCS 35 Reverse Clutch |
| (22) | PCS 1234 Clutch |
| (24) | PS2 |
| (28) | PS4 |
| (30) | PCS 26 Clutch |
| (33) | PCS TCC |
| (34) | PS1 |
