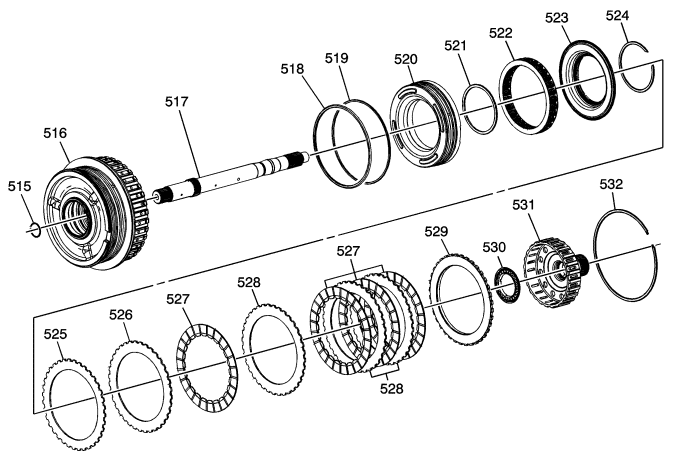

| (515) | Turbine Shaft Retainer Ring |
| (516) | 3-5-Reverse and 4-5-6 Clutch Housing Assembly |
| (517) | Turbine Shaft |
| (518) | 4-5-6 Clutch Piston Outer Seal |
| (519) | 4-5-6 Clutch Piston Outer Seal |
| (520) | 4-5-6 Clutch Piston |
| (521) | 4-5-6 Clutch Piston Inner Seal |
| (522) | 4-5-6 Clutch Piston Return Spring Assembly |
| (523) | 4-5-6 Clutch Piston Fluid Dam Assembly |
| (524) | 4-5-6 Clutch Piston Fluid Dam Retainer Ring |
| (525) | 4-5-6 Clutch (Waved) Plate |
| (526) | 4-5-6 Clutch Apply Plate |
| (527) | 4-5-6 Clutch (w/Friction Material) Plate Assembly |
| (528) | 4-5-6 Clutch Plate |
| (529) | 4-5-6 Clutch Backing Plate |
| (530) | Reaction Carrier Hub Thrust Bearing Assembly |
| (531) | Reaction Carrier Hub Assembly |
| (532) | 4-5-6 Clutch Backing Plate Retainer Ring |
