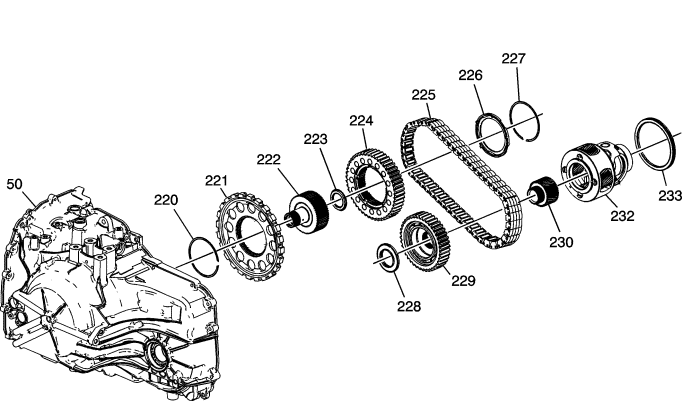

Cruze |
||||||||
|
|
|
|||||||
| (50) | A/Trans Case |
| (220) | Park Gear Retainer Ring |
| (221) | Park Gear |
| (222) | Output Carrier Transfer Drive Gear Hub |
| (223) | Drive Sprocket Bearing Assembly |
| (224) | Drive Sprocket |
| (225) | Drive Link Assembly |
| (226) | Drive Sprocket Thrust Washer |
| (227) | Drive Sprocket Retainer Ring |
| (228) | Driven Sprocket Bearing Assembly |
| (229) | Driven Sprocket |
| (230) | Final Drive Sun Gear |
| (232) | Differential Carrier Assembly |
| (233) | Front Differential Carrier Bearing Assembly |
