SECTION 9R

BODY & ACCESSORIES (BODY FRONT END)

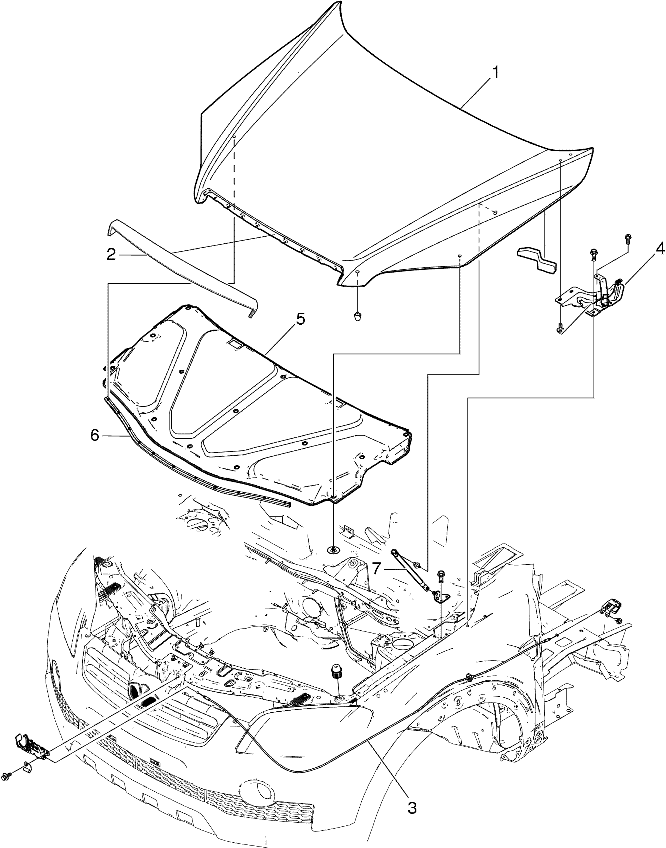

C179R01
Display graphicTranslations of text in graphics


BODY FRONT END - HOOD PANEL (973)

NO.
OPERATION DESCRIPTION
OPERATION CODE
MODEL
C100
C105
1
PANNEL, HOOD - REPLACE
9730100
0.5
0.5
PANNEL, HOOD - ALIGN
9730300
0.3
0.3
2
MOLDING, HOOD - REPLACE
9730400
0.3
—
3
CABLE, HOOD LATCH - REPLACE
9730500
0.4
0.4
4
HINGE, HOOD - REPLACE
.
.
.
Right
9731100
1.3
1.3
Left
9731200
1.3
1.3
Both
9731300
1.6
1.6
5
INSULATION, ENGINE HOOD - REPLACE
9731700
0.3
0.3
6
WEATHER STRIP, HOOD - REPLACE
9731900
0.2
0.2
7
SPRING, HOOD GAS - REPLACE
.
.
.
Right
9732100
0.2
0.2
Left
9732110
0.2
0.2
Both
9732120
0.3
0.3

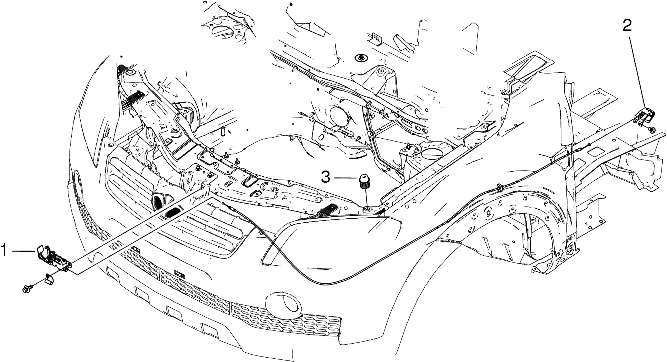

C179R02
Display graphicTranslations of text in graphics


BODY FRONT END - FRONT PANEL (974)

NO.
OPERATION DESCRIPTION
OPERATION CODE
MODEL
C100
C105
1
LATCH, HOOD - REPLACE
9740100
0.3
0.3
2
HANDLE, HOOD LATCH RELEASE - REPLACE
9740200
0.3
0.3
3
BUMPERS, HOOD - REPLACE
9740500
0.2
0.2

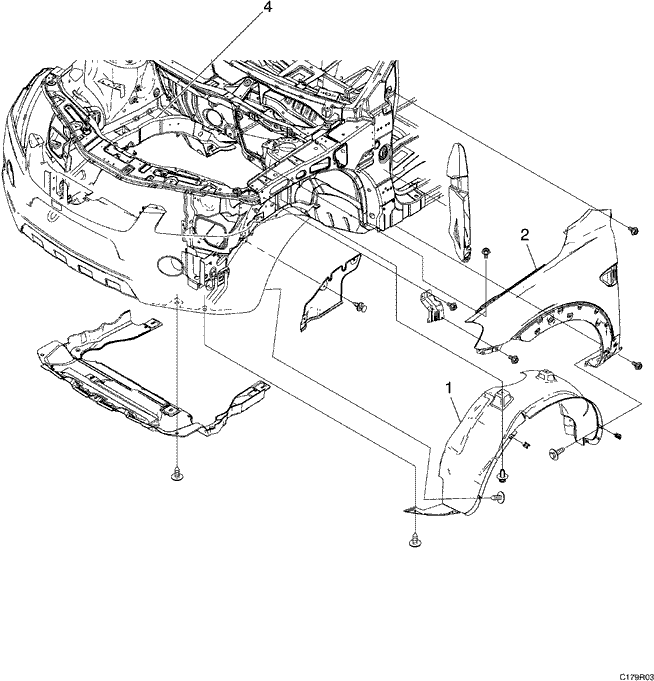

C179R03
Display graphicTranslations of text in graphics


BODY FRONT END - FENDER PANEL (975)

NO.
OPERATION DESCRIPTION
OPERATION CODE
MODEL
C100
C105
1
SKIRT, FRONT FENDER INNER - REPLACE
.
.
.
Right
9750100
0.3
0.3
Left
9750200
0.3
0.3
2
FENDER, FRONT - REPLACE
.
.
.
Right
9750400
1.3
1.3
Left
9750500
1.3
1.3
FENDER, FRONT - ALIGN
.
.
.
Right
9750700
0.3
0.3
Left
9750800
0.3
0.3
3
TRAY, BATTERY - REPLACE
9751100
0.4
0.4
4
PANEL, WHEELHOUSE - REPLACE
.
.
.
Right
9751300
4.7
4.7
Left
9751400
4.7
4.7

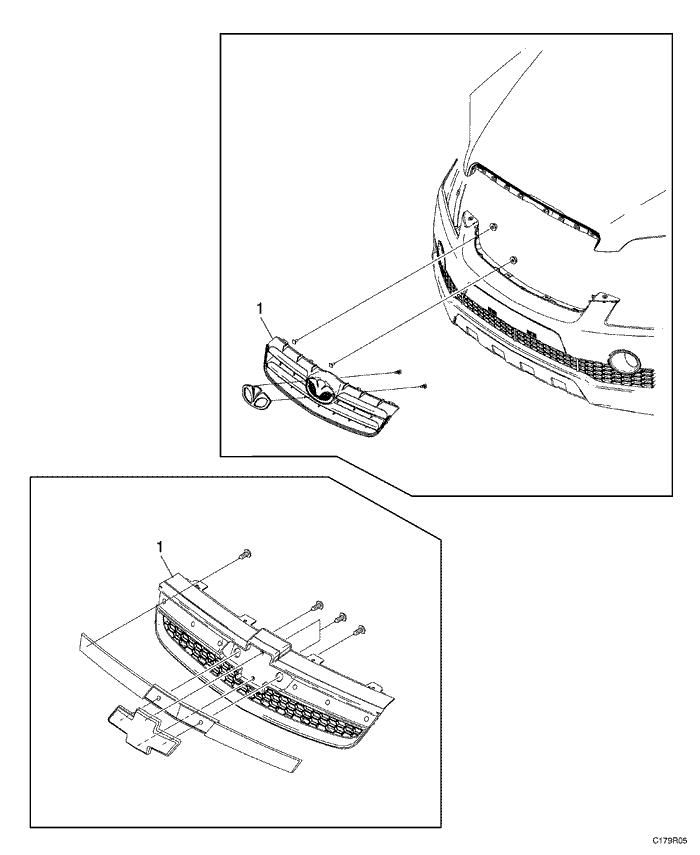

C179R04
Display graphicTranslations of text in graphics


BODY FRONT END - DASH PANEL & COWL (976)

NO.
OPERATION DESCRIPTION
OPERATION CODE
MODEL
C100
C105
1
PANEL, AIR INLET GRILLE - REPLACE
9760100
0.4
0.4
2
PANEL, DASH ASSEMBLY - REPLACE
9760200
3.7
3.7
3
WEATHER STRIP, AIR INLET GRILLE - REPLACE
9760900
0.2
0.2

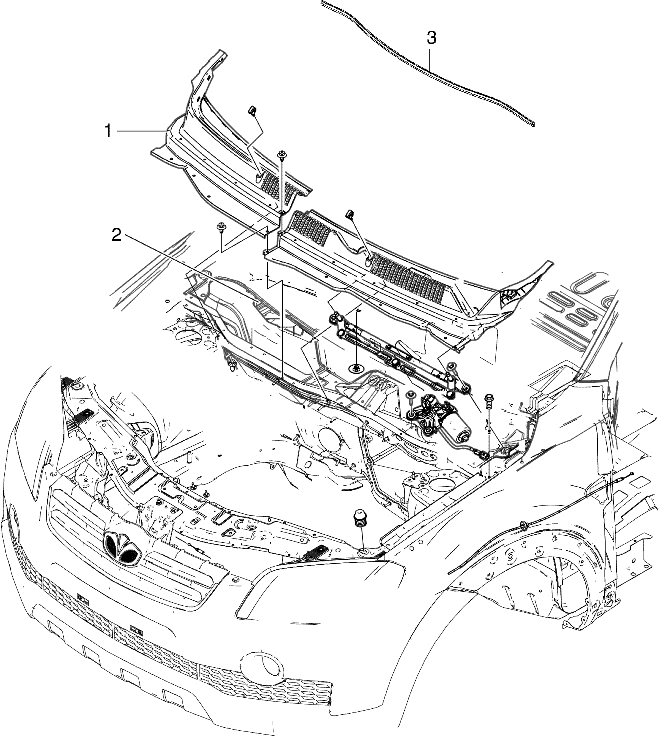

C179R05
Display graphicTranslations of text in graphics


BODY FRONT END - GRILLE (977)

NO.
OPERATION DESCRIPTION
OPERATION CODE
MODEL
C100
C105
1
GRILLE ASSEMBLY - REPLACE
9770100
0.4
0.4
