Service Manual2007 Captiva BODY & ACCESSORIES (INTERIOR TRIM)

SECTION 9G

BODY & ACCESSORIES (INTERIOR TRIM)

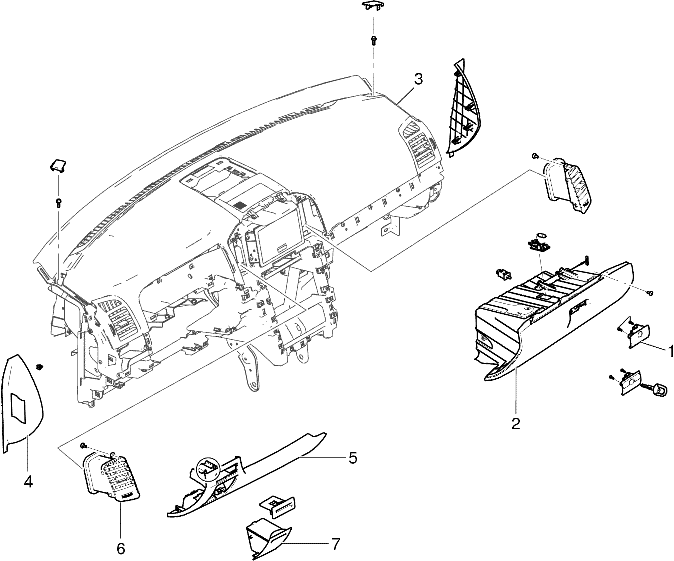

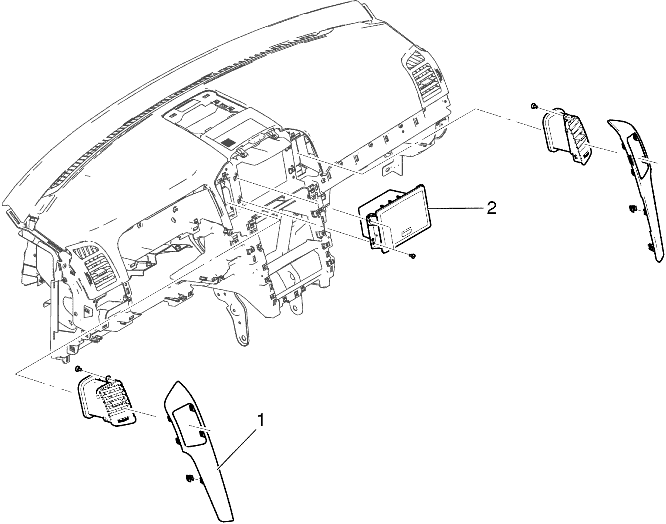

INTERIOR TRIM - INSTRUMENT PANEL (931)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	. LOCK, COMPARTMENT I/P - REPLACE	9310100	0.2	0.2
2	. BOX, GLOVE - REPLACE	9310700	0.2	0.2
3	. PANEL, INSTRUMENT ASSEMBLY - REPLACE	9310900	3.2	3.2
4	. PANEL, KICK PAD - REPLACE	.	.	.
	Right	9311100	0.2	0.2
	Left	9311200	0.2	0.2
5	. COVER, INSTRUMENT LOWER - REPLACE	9311400	0.2	0.2
6	. NOZZLE, VENTILATION CENTER - REPLACE	.	.	.
	Right	9311800	0.2	0.2
	Left	9311810	0.2	0.2
7	. BOX, COIN - REPLACE	9313000	0.2	0.2

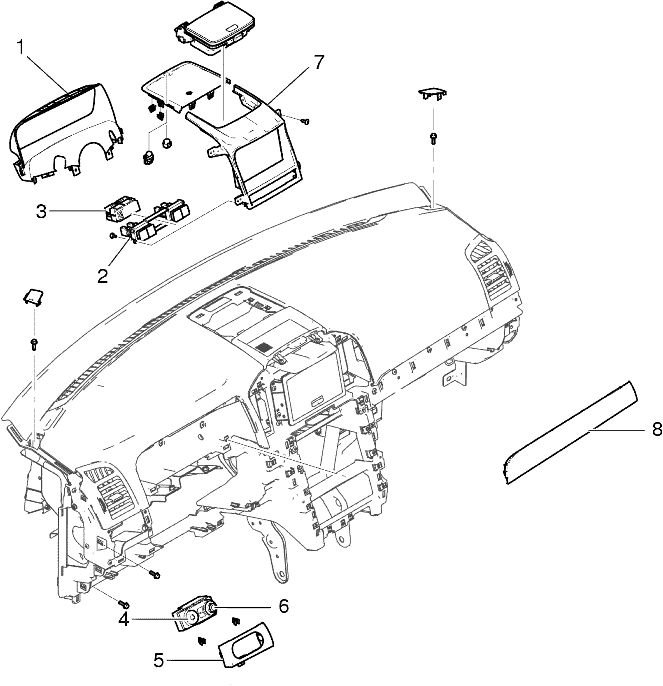

INTERIOR TRIM - MOLDING & SWITCH (932)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	. PLATE I/P CLUSTER TRIM - REPLACE	9320100	0.3	0.3
2	. SWITCH ASSY - REPLACE	.	.	.
	Hazard Warning	9320300	0.2	0.2
	Fog Lamp	9320400	0.2	0.2
	Rear Defogger	9320450	0.3	0.3
3	. CLOCK - REPLACE	9320600	0.2	0.2
4	. SWITCH, ELECTRIC REMOTE MIRROR - REPLACE	9320800	0.2	0.2
5	. HOUSING, SWICH - REPLACE	9321100	0.2	0.2
6	. SWITCH, HEAD LAMP LEVELING - REPLACE	9321500	0.2	0.2
7	. MOLDING, CENTER UPPER I/P - REPLACE	9322800	0.3	0.3
8	. MOLDING, INSTRUMENT PANEL GARNISH - REPLACE	9323000	0.3	0.3

INTERIOR TRIM - INSTRUMENT & PARTS (933)

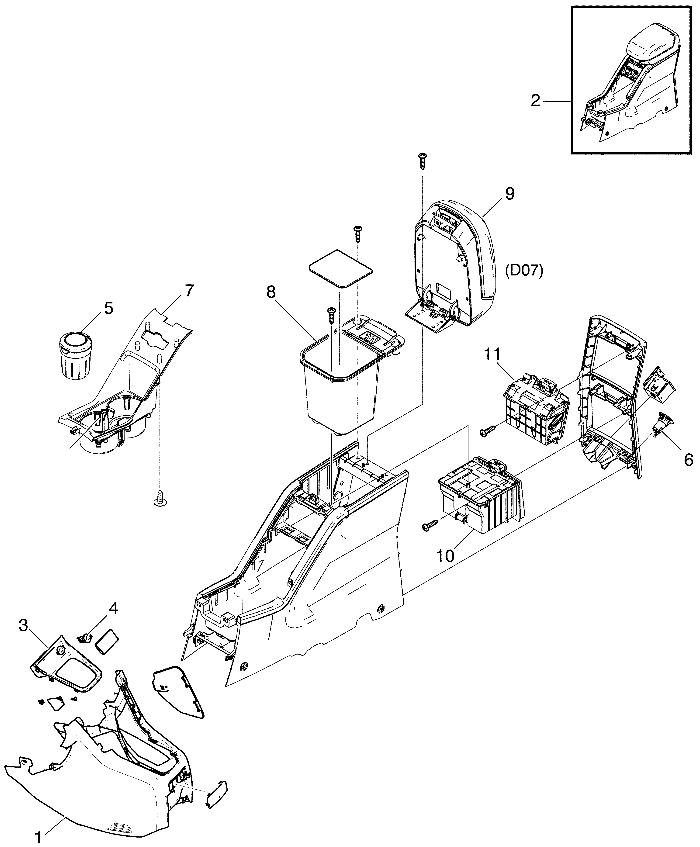

INTERIOR TRIM - CONSOLE (934)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	. CONSOLE ASSEMBLY, FRONT - REPLACE	.	.	.
	Auto	9340100	0.9	0.9
	Manual	9340200	0.9	0.9
2	. CONSOLE ASSEMBLY, REAR - REPLACE	.	.	.
	Auto	9340400	0.4	0.4
	Manual	9340500	0.4	0.4
3	. HOUSING, CIGARETTE LIGHTER - REPLACE	9340700	0.2	0.2
4	. LIGHTER, CIGARETTE - REPLACE	9340900	0.2	0.2
5	. ASHTRAY, F/FLR CNSL - REPLACE	9341400	0.2	0.2
6	. JACK, EXTRA POWER SUPPLY - REPLACE	9341700	0.4	0.4
7	. COVER, CONSOLE - REPLACE	9342400	0.2	0.2
8	. BOX,REAR CONSOLE - REPLACE	9342500	0.2	0.2
9	. LID,REAR CONSOLE - REPLACE	9342600	0.2	0.2
10	. HOLDER CUP REAR CONSOLE - REPLACE	9342800	0.5	0.5
11	. TRAY, REAR CONSOLE - REPLACE	9342900	0.5	0.5

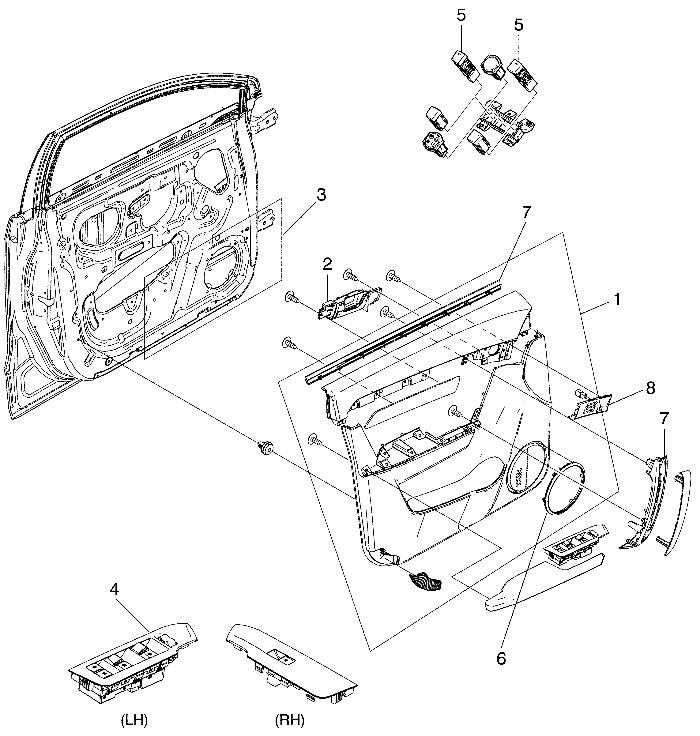

INTERIOR TRIM - FRONT DOOR TRIM (935)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	. TRIM ASSEMBLY, FRONT DOOR - REPLACE	.	.	.
	Right	9350100	0.4	0.4
	Left	9350200	0.4	0.4
	Both	9350300	0.7	0.7
2	. HANDLE, FRONT DOOR INSIDE - REPLACE	.	.	.
	Right	9350500	0.6	0.6
	Left	9350600	0.6	0.6
	Both	9350700	1.1	1.1
3	. SEAL, FRONT DOOR TRIM - REPLACE	9350800	0.4	0.4
4	. SWITCH, WINDOW LIFTER MAIN - REPLACE	9351300	0.4	0.4
	Passenger	9351310	0.4	0.4
	. SWITCH, TAILGATE GLASS OPEN - REPLACE	9351320	0.4	0.4
5	. SWITCH, HEATING MAT - REPLACE	.	.	.
	Right	9351400	0.2	0.2
	Left	9351410	0.2	0.2
	Both	9351420	0.2	0.2
6	. GRILLE, FRONT SPEAKER - REPLACE	.	.	.
	Right	9351800	0.4	0.4
	Left	9351900	0.4	0.4
	Both	9352000	0.7	0.7
7	. HANDLE, GRIP FRONT INNER - REPLACE	.	.	.
	Right	9352700	0.5	0.4
	Left	9352800	0.5	0.5
	Both	9352810	0.9	0.9
8	. TWEETER, FRONT DR SPEAKER - REPLACE	.	.	.
	Right	9353600	0.5	0.5
	Left	9353700	0.5	0.5
	Both	9353800	0.9	0.9

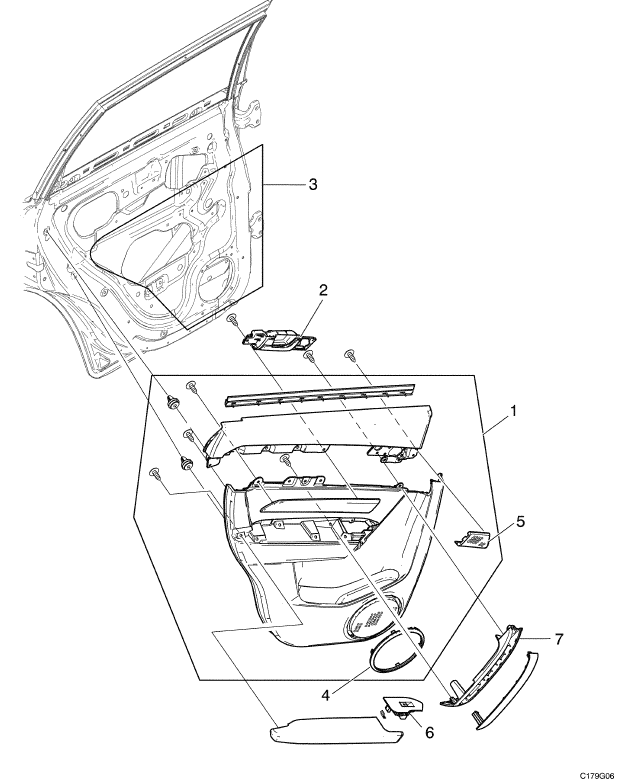

INTERIOR TRIM - REAR DOOR TRIM (936)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	. TRIM ASSEMBLY, REAR DOOR - REPLACE	.	.	.
	Right	9360300	0.4	0.4
	Left	9360400	0.4	0.4
	Both	9360500	0.7	0.7
2	. HANDLE, REAR DOOR INSIDE - REPLACE	.	.	.
	Right	9360700	0.6	0.6
	Left	9360800	0.6	0.6
	Both	9360900	1.1	1.1
3	. SEAL, REAR DOOR TRIM - REPLACE	9361100	0.4	0.4
4	. GRILLE, REAR SPEAKER - REPLACE	.	.	.
	Right	9361200	0.4	0.4
	Left	9361210	0.4	0.4
	Both	9361220	0.7	0.7
5	. TWEETER, REAR DR SPEAKER - REPLACE	.	.	.
	Right	9361600	0.4	0.4
	Left	9361610	0.4	0.4
	Both	9361620	0.7	0.7
6	. SWITCH, WINDOW LIFTER MAIN REAR - REPLACE	.	.	.
	Right	9361700	0.5	0.5
	Left	9361800	0.5	0.5
	Both	9361900	0.9	0.9
7	. HANDLE, GRIP REAR INNER - REPLACE	.	.	.
	Right	9363800	0.5	0.5
	Left	9363810	0.5	0.5
	Both	9363820	0.9	0.9

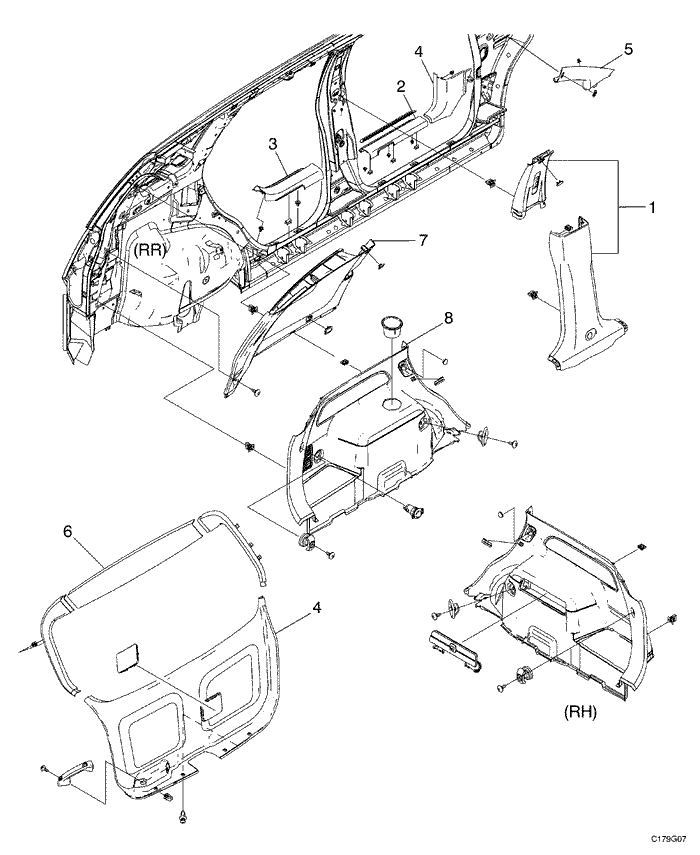

INTERIOR TRIM - PILLAR TRIM (938)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	. TRIM, CENTER PILLAR - REPLACE	.	.	.
	Upper Right	9380100	0.4	0.4
	Lower Right	9380200	0.3	0.3
	. TRIM, CENTER PILLAR - REPLACE	.	.	.
	Upper Left	9380400	0.4	0.4
	Lower Left	9380500	0.3	0.3
2	. COVER, ROCKER PANEL FRONT - REPLACE	.	.	.
	Right	9380700	0.3	0.3
	Left	9380800	0.3	0.3
3	. COVER, ROCKER PANEL REAR - REPLACE	.	.	.
	Right	9381100	0.2	0.2
	Left	9381200	0.2	0.2
4	. TRIM, TAILGATE - REPLACE	9381500	0.3	0.3
5	. MOLDING, WINDSHELD GARNISH - REPLACE	.	.	.
	Right	9381600	0.3	0.3
	Left	9381620	0.3	0.3
	Both	9381630	0.5	0.5
6	. COVER, TAILGATE UPPER TRIM - REPLACE	9381700	0.2	0.2
7	. TRIM, QUARTER SIDE UPPER - REPLACE	.	.	.
	Right	9382810	0.7	0.7
	Left	9382820	0.7	0.7
	Both	9382830	1.2	1.2
8	. TRIM, QUARTER SIDE LOWER - REPLACE	.	.	.
	Right	9382840	0.5	0.5
	Left	9382850	0.5	0.5
	Both	9382860	0.8	0.8

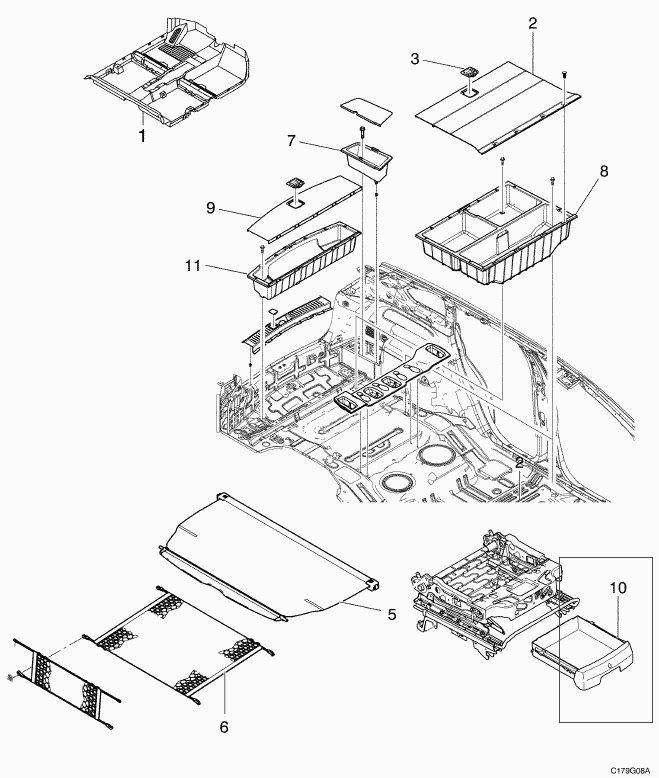

INTERIOR TRIM - FLOOR CARPET (939)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	. CARPET, ONE PIECE FLOOR - REPLACE	9390100	2.3	2.3
2	. COVER, LOAD FLOOR COMPARTMENT - REPLACE	9390300	0.2	0.2
3	. HANDLE, LOAD FLR COVER - REPLACE	9390310	0.2	0.2
4	. COVER, SPARE TIRE - REPLACE	9390500	-	0.2
5	. SHELF, LOAD, COMPARTMENT - REPLACE	9390700	0.2	0.2
6	. NET, LOAD COMPARTMENT - REPLACE	9390900	0.2	0.2
7	. BOX, LOAD COMPARTMENT SIDE - REPLACE	9391100	0.2	0.2
8	. COMPARTMENT, LOAD FLOOR - REPLACE	9391200	0.2	-
9	. COVER, REAR FLOOR DEPOSITBOX - REPLACE	9392100	0.2	0.2
10	. TRAY, FRONT SEAT STORAGE - REPLACE	9392000	0.2	0.2
11	. DEPOSIT BOX, TOOL KIT - REPLACE	9392900	0.2	0.2
