Service Manual2006 Captiva BODY & ACCESSORIES (LIGHTING SYSTEM)

SECTION 9B

BODY & ACCESSORIES (LIGHTING SYSTEM)

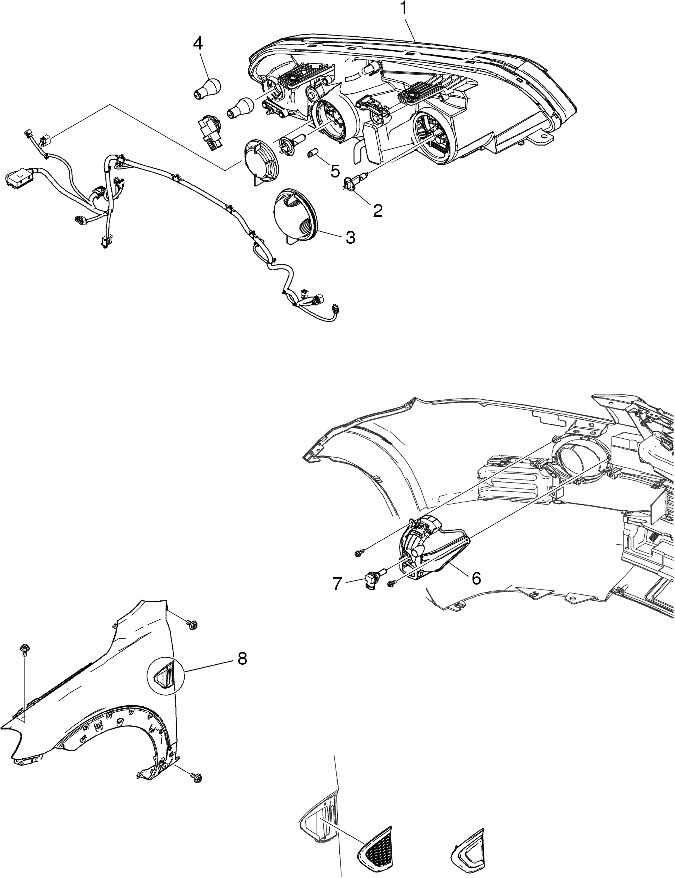

LIGHTING SYSTEM - FRONT LAMP (916/917)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	HEADLAMP/COMPOSITE ASSEMBLY - REPLACE	.	.	.
	Right	9160100	0.4	0.4
	Left	9160200	0.4	0.4
	Both	9160300	0.5	0.5
2	BULB, COMPOSITE HEADLAMP - REPLACE	.	.	.
	Right	9160400	0.4	0.4
	Left	9160500	0.4	0.4
	Both	9160600	0.5	0.5
3	CAP, HEADLAMP - REPLACE	.	.	.
	Right	9160800	0.4	0.4
	Left	9160900	0.4	0.4
4	BULB, TURN SIGNAL - REPLACE	.	.	.
	Right	9161100	0.4	0.4
	Left	9170100	0.4	0.4
	Both	9170200	0.5	0.5
5	BULB, POSTION - REPLACE	.	.	.
	Right	9161300	0.4	0.4
	Left	9170300	0.4	0.4
	Both	9170400	0.5	0.5
6	LAMP, FOG - REPLACE	.	.	.
	Right	9161500	1.0	1.0
	Left	9170500	1.0	1.0
	Both	9170600	1.0	1.0
7	BULB LAMP, FOG - REPLACE	.	.	.
	Right	9161700	0.4	0.4
	Left	9170700	0.4	0.4
	Both	9170800	0.5	0.5

LIGHTING SYSTEM - FRONT LAMP (916/917)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
8	LAMP, TURN SIGNAL SIDE - REPLACE	.	.	.
	Right	9162100	0.4	0.4
	Left	9171200	0.4	0.4
	Both	9171300	0.5	0.5
9	BULB, TURN SIGNAL SIDE LAMP - REPLACE	.	.	.
	Right	9162200	0.4	0.4
	Left	9171400	0.4	0.4
	Both	9171500	0.5	0.5

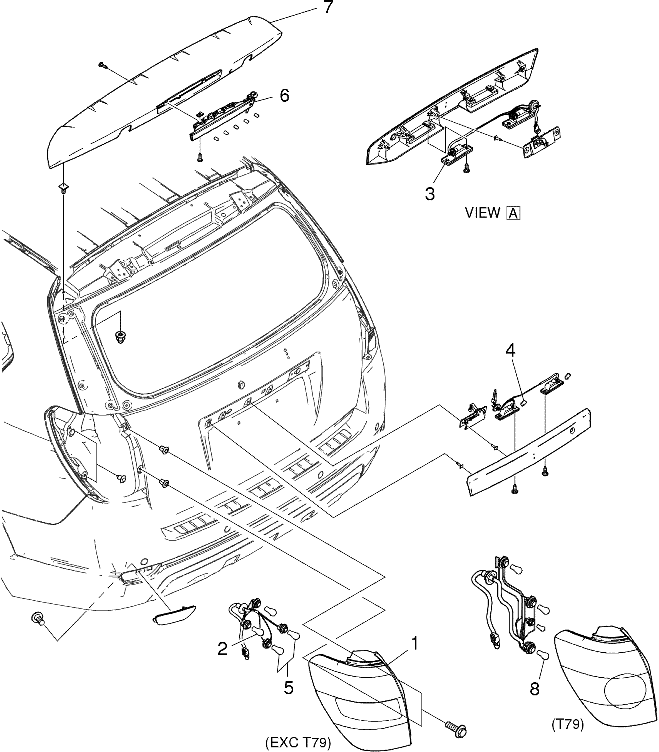

LIGHTING SYSTEM - REAR LAMP (918)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	LAMP, REAR COMBINATION - REPLACE	.	.	.
	Right	9180100	0.2	0.2
	Left	9180200	0.2	0.2
	Both	9180300	0.3	0.3
2	BULB, COMBINATION LAMP - REPLACE	.	.	.
	Right	9180500	0.2	0.2
	Left	9180600	0.2	0.2
	Both	9180700	0.3	0.3
3	LAMP, LICENSE - REPLACE	9180800	0.2	0.2
4	BULB LAMP, LICENSE - REPLACE	9180900	0.2	0.2
5	BULB, BACK-UP LAMP - REPLACE	9181100	0.2	0.2
5	BULB TURN SIGNAL - REPLACE	9181200	0.2	0.2
6	LAMP, HIGH MOUNTED STOP - REPLACE	9181700	0.4	0.4
7	APPLIQUE, LIFTGATE UPPER - REPLACE	9181800	0.4	0.4
8	BULB, REAR FOG LAMP - REPLACE	9182700	0.2	0.2
