Service Manual2006 Captiva RESTRAINTS S. I. R (SUPPLEMENTAL INFLATABLE RESTRAINTS)

SECTION 8B

RESTRAINTS S. I. R (SUPPLEMENTAL INFLATABLE RESTRAINTS)

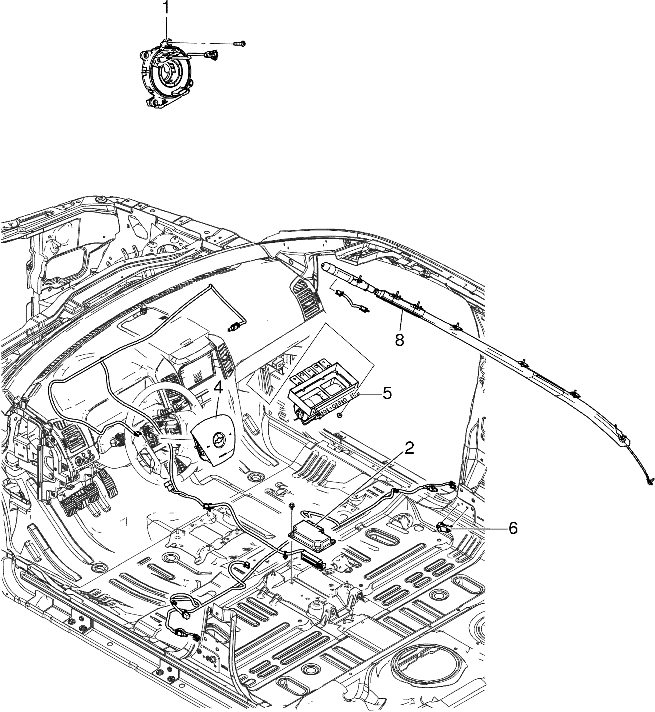

S. R. S (SUPPLEMENTAL INFLATABLE RESTRAINTS) - AIR BAG SYSTEM (832)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	. COIL, SRS - REPLACE	8320100	0.6	0.6
2	. SDM, AIR BAG - REPLACE	8320300	0.6	0.6
2	INC : REPROGRAM	.	.	.
3	. SDM, AIR BAG - REPROGRAM ONLY	8320400	0.3	0.3
4	. MODULE, STEERING WHEEL INFLATOR - REPLACE	8320700	0.2	0.2
5	. MODULE, PASSENGER INFLATABLE CUSHION - REPLACE	8320900	3.4	3.4
6	. SENSOR, SIDE AIR BAG - REPLACE	.	.	.
	Right	8321000	0.3	0.3
	Left	8321100	0.3	0.3
	Both	8321200	0.5	0.5
7	. MODULE, SIDE AIR BAG - REPLACE	.	.	.
	Right	8321300	0.4	0.4
	Left	8321400	0.4	0.4
	Both	8321500	0.7	0.7
8	. CURTAIN, SIDE AIR BAG - REPLACE	.	.	.
	Right	8321600	2.2	2.2
	Left	8321700	2.2	2.2
	Both	8321800	2.5	2.5

S. R. S (SUPPLEMENTAL INFLATABLE RESTRAINTS) - IMMOBILIZER (833)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105

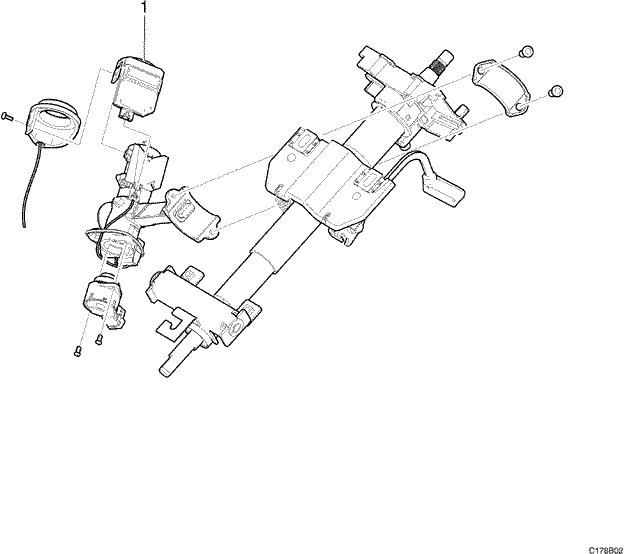

1	. VEHICLE THEFT MODULE - REPLACE	8330500	0.8	0.8
1	INC : REPROGRAM	.	.	.
2	. VEHICLE THEFT DETERRENT(IMMOBILIZER) - REPROGRAM ONLY	8330600	0.5	0.5
