SECTION 4D

BRAKE (FRONT BRAKES)

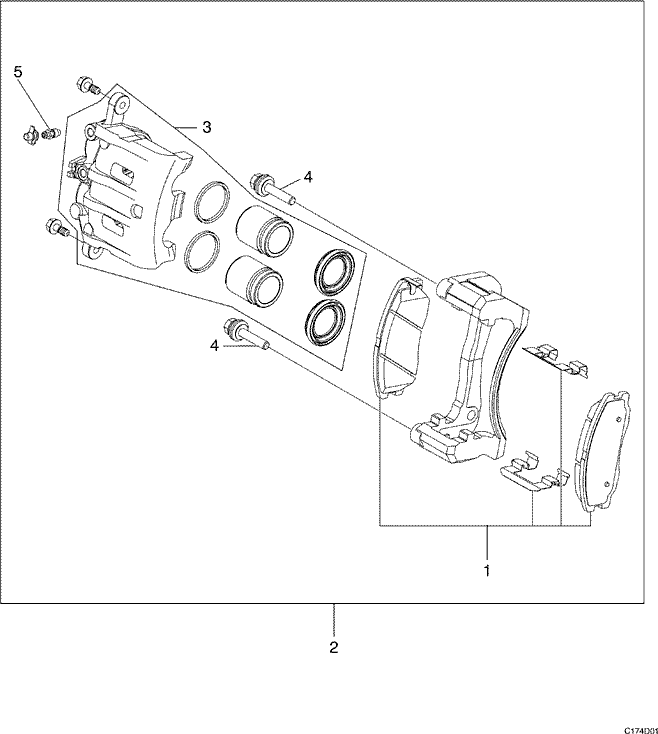

C174D01

Display graphic

Translations of text in graphics

FRONT BRAKES - FRONT BRAKE (445)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C	.
1	. PAD KIT, FRT DISC BRAKE - REPLACE	.	.	.
	Right	4450100	0.4	.
	Left	4450110	0.4	.
	Both	4450120	0.6	.
2	. BRAKE CALIPER ASSEMBLY, FRT - REPLACE	.	.	.
	Right Front	4450300	0.6	.
	Left Front	4450400	0.6	.
	Both Front	4450500	1.0	.
3	. HOUSING KIT, FRT BRAKE CALIPER - REPLACE	4451000	0.6	.
4	. PIN KIT, FRT BRAKE CALIPER GUIDE - REPLACE	.	.	.
	Right	4451100	0.5	.
	Left	4451200	0.5	.
	Both	4451300	0.8	.
5	. VALVE KIT, FRT BRAKE CALIPER BLEEDER - REPLACE	4451500	0.2	.

C : C-100
