SECTION 4B

BRAKE (MASTER CYLINDER & POWER BOOSTER)

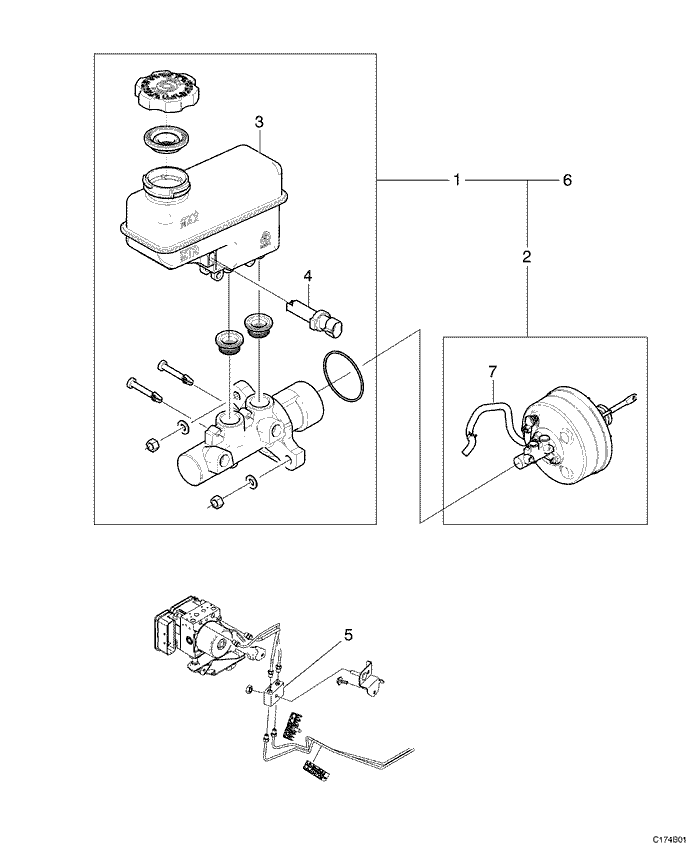

C174B01

Display graphic

Translations of text in graphics

MASTER CYLINDER & POWER BOOSTER - MASTER CYLINDER & BOOSTER (431)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C	.
1	. CYLINDER, BRAKE MASTER - REPLACE	.	.	.
	OH	4310100	—	.
	Replace	4310200	1.1	.
	. BRAKE SYSTEM - BLEED	4310400	0.4	.
2	. BOOSTER, VACUUM POWER BRAKE - REPLACE	4310600	1.6	.
3	. RESERVOIR KIT, BRAKE MASTER CYLINDER - REPLACE	4310800	0.6	.
4	. SWITCH, BRAKE RESERVOIR - REPLACE	4311100	0.2	.
5	. VALVE, BRAKE PROPORTIONER - REPLACE	4311300	0.7	.
6	. CYLINDER ASS'Y, BRAKE MASTER - REPLACE	4311500	1.6	.
7	. HOSE, BRAKE BOOSTER VACUUM - REPLACE	4312100	0.2	.

C : C-100
