Service Manual2006 Captiva BRAKE (HYDRAULIC BRAKE)

SECTION 4A

BRAKE (HYDRAULIC BRAKE)

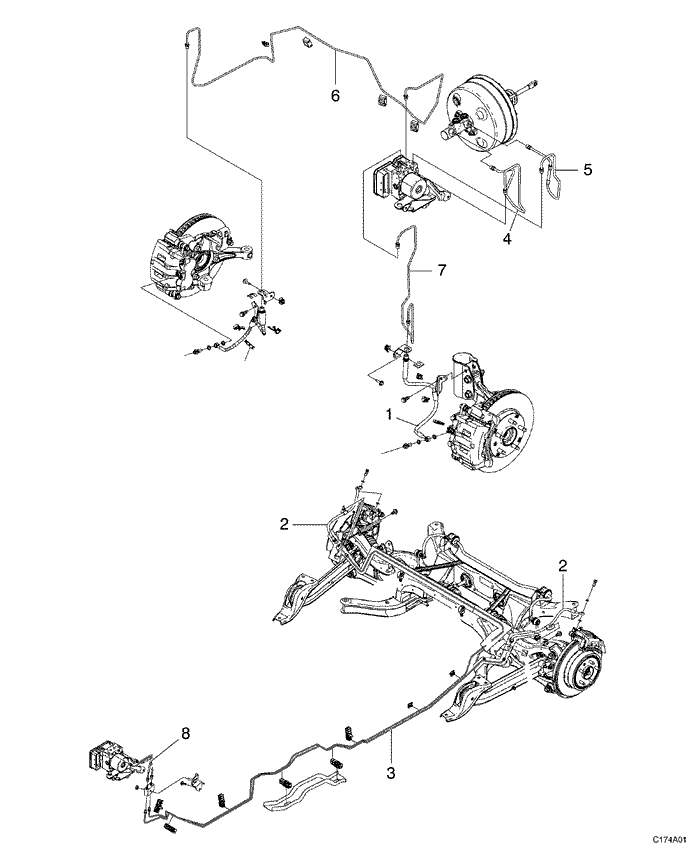

HYDRAULIC BRAKE – BRAKE PIPE (425)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C	.
1	. HOSE, FRONT BRAKE – REPLACE	.	.	.
	Right	4250100	0.6	.
	Left	4250200	0.6	.
	Both	4250300	1.0	.
2	. HOSE, REAR BRAKE – REPLACE	.	.	.
	Right	4250400	0.6	.
	Left	4250500	0.6	.
	Both	4250600	1.0	.
3	. PIPE, REAR BRAKE (JUNCTION BLOCK TO HOSE – RR) – REPLACE	.	.	.
	Right	4250800	2.8	.
	Left	4251100	2.8	.
	Both	4251300	3.0	.
4	. PIPE, BRAKE PRESS MODULATOR VALVE FRONT – REPLACE	4251500	1.2	.
5	. PIPE, BRAKE PRESS MODULATOR VALVE REAR – REPLACE	4251600	1.2	.
6	. PIPE, FRONT BRAKE – REPLACE - RIGHT	4251900	1.7	.
7	. PIPE, FRONT BRAKE – REPLACE - LEFT	4252100	1.5	.
8	. PIPE, BRAKE MODULATOR TO JUNCTION BLOCK – REPLACE	.	.	.
	Right Rear	4252400	1.2	.
	Left Rear	4252500	1.2	.

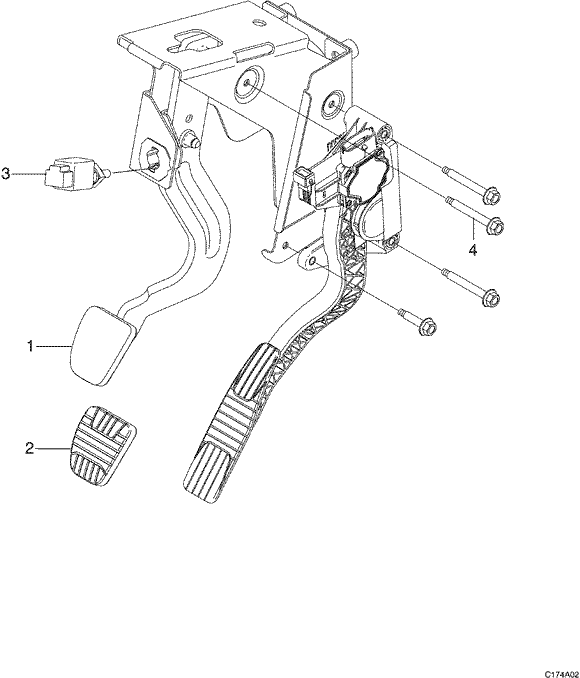

HYDRAULIC BRAKE – BRAKE PEDAL and MOUNT (428)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C	.
1	. PEDAL AND/OR BUSHING, BRAKE – REPLACE	4280100	0.4	.
2	. PAD, BRAKE PEDAL – REPLACE	4280500	0.2	.
3	. SWITCH, STOP LAMP – REPLACE	4280700	0.2	.
4	. SHAFT, BRAKE PEDAL – REPLACE	4280900	0.4	.
