Captiva

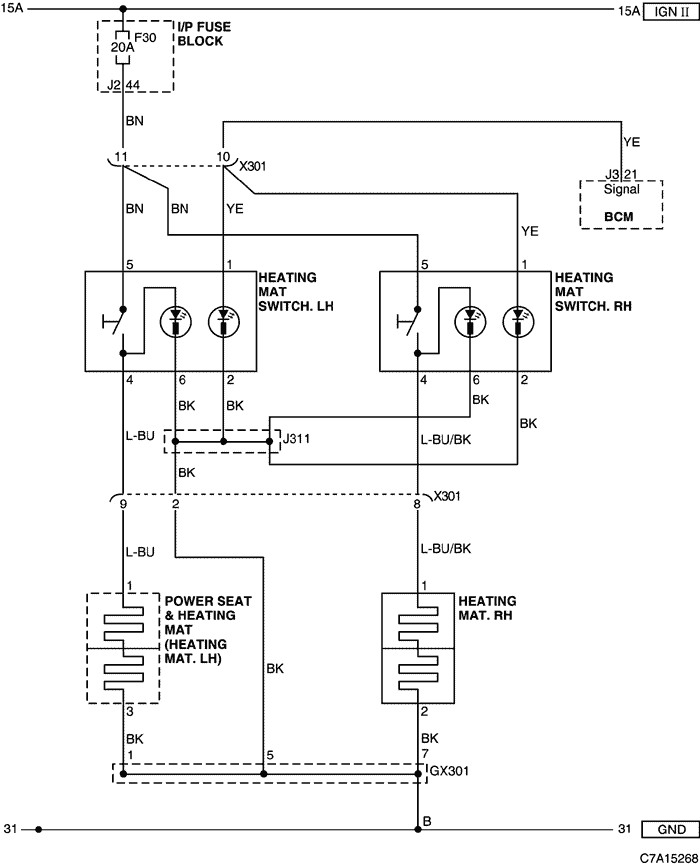

39. HEATING MAT CIRCUIT

a. CONNECTOR INFORMATION

CONNECTOR NO (PIN NO, COLOR)	CONNECTING WIRING HARNESS	CONNECTOR POSITION
X301 (12 Pin, Colorless)	Console - Body	Below the floor console
GX301 (Black/Gray)	Body	Under the right seat cushion

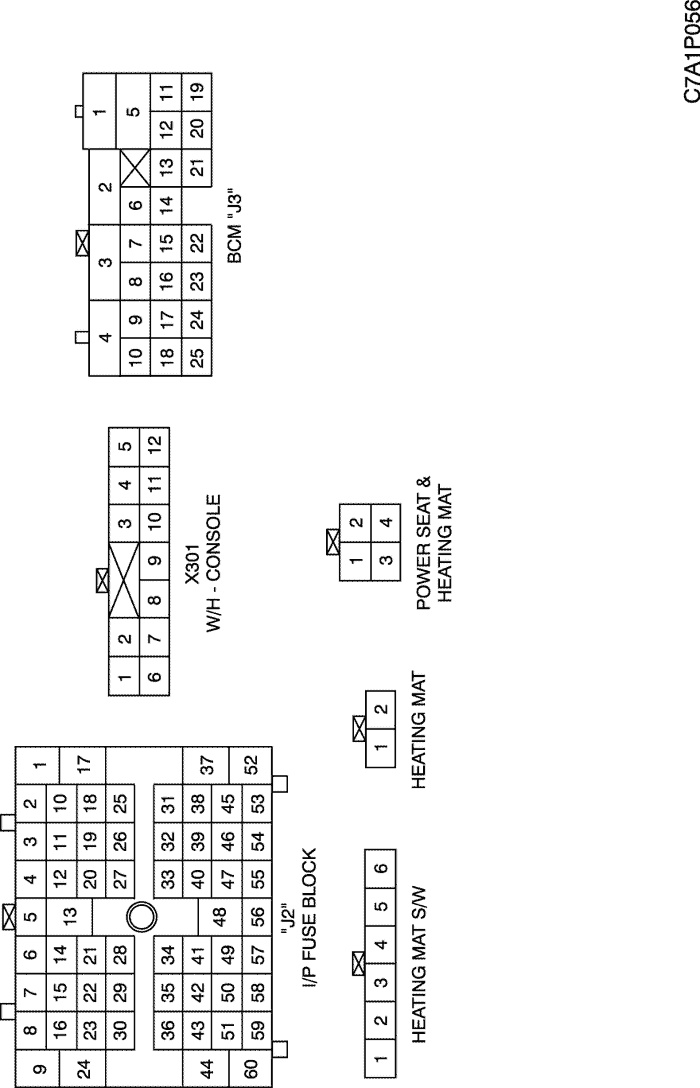

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

c. POSITION OF CONNECTORS AND GROUNDS

W/H INSTRUMENT PANEL

W/H CONSOLE

W/H BODY
