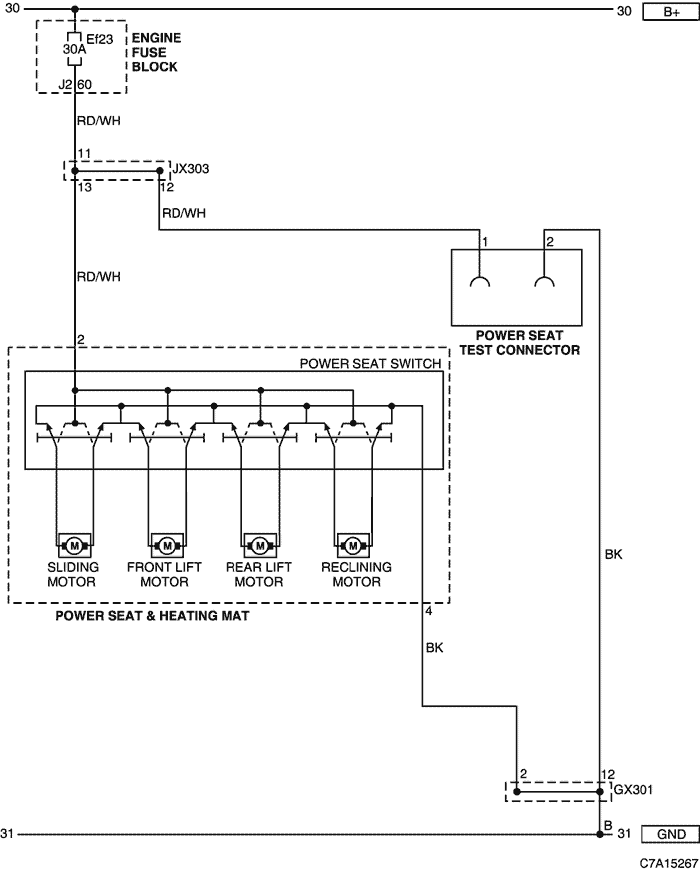

38. POWER SEAT SYSTEM CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)		CONNECTING WIRING HARNESSCONNECTOR POSITION
GX301 (Black/Gray)BodyUnder the right seat cushion

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics

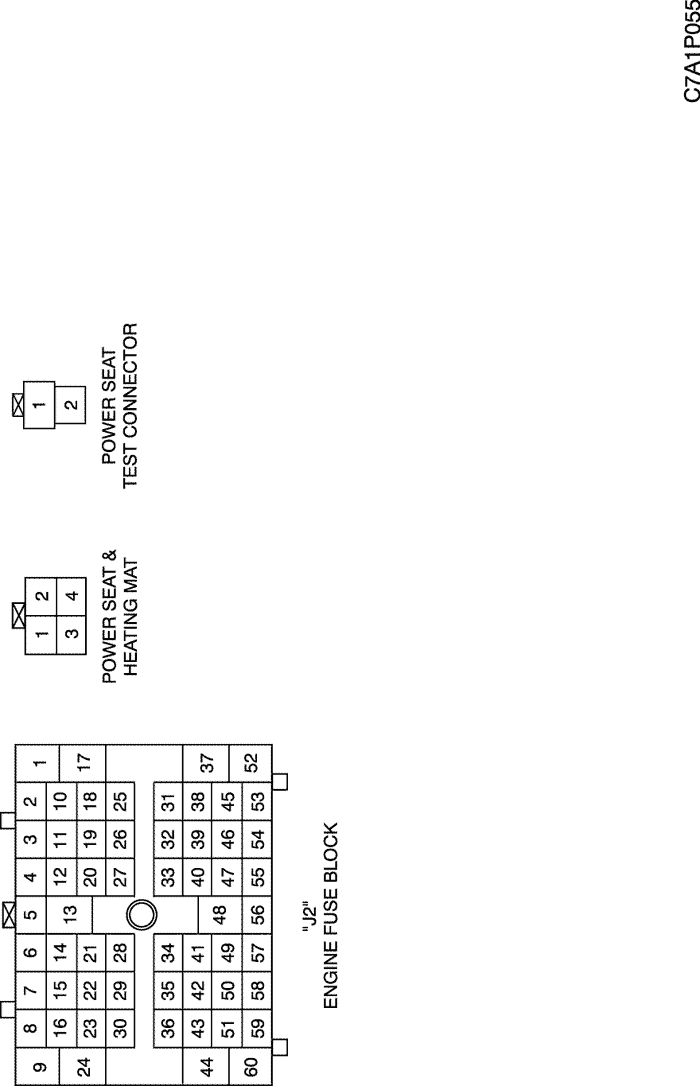

c. POSITION OF CONNECTORS AND GROUNDS

W/H BODY

Display graphicTranslations of text in graphics


d. SPLICE PACK

JX303 (BLACK/BROWN)

Display graphicTranslations of text in graphics
