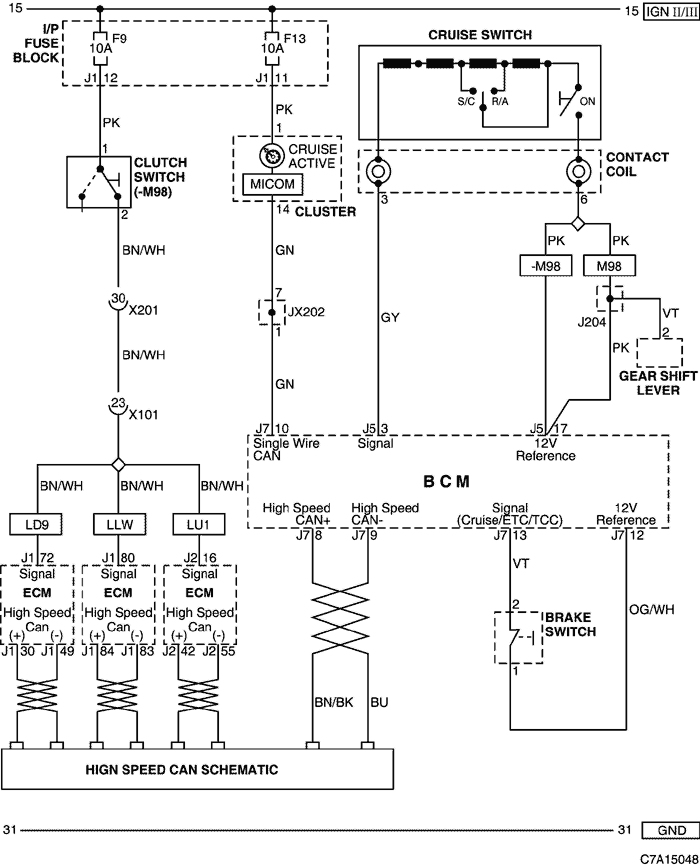

36. CRUISE CONTROL SYSTEM CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)		CONNECTING WIRING HARNESSCONNECTOR POSITION
X101 (36 Pin, Black)Engine - BodyBehind the Engine Fuse Block
X201 (92 Pin, Black)Body - I.PBelow to the "A" pillar

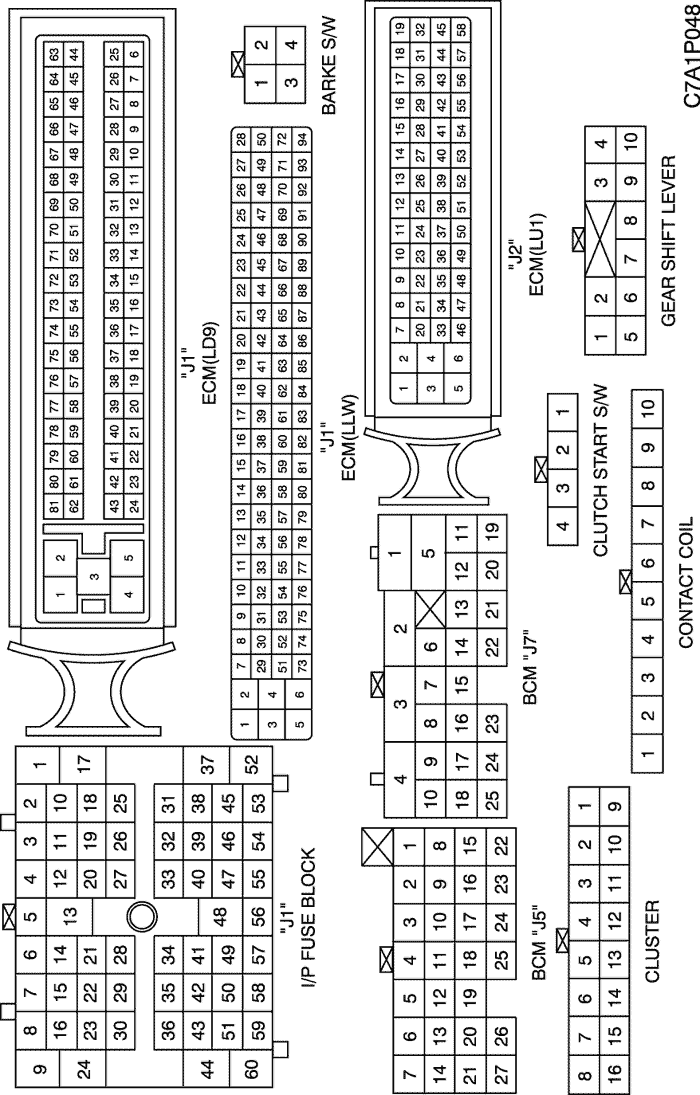

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H INSTRUMENT PANEL

Display graphicTranslations of text in graphics


W/H BODY

Display graphicTranslations of text in graphics


d. SPLICE PACK

JX202 (BLACK/PINK)

Display graphicTranslations of text in graphics
