26. DOOR LOCKING SYSTEM CIRCUIT

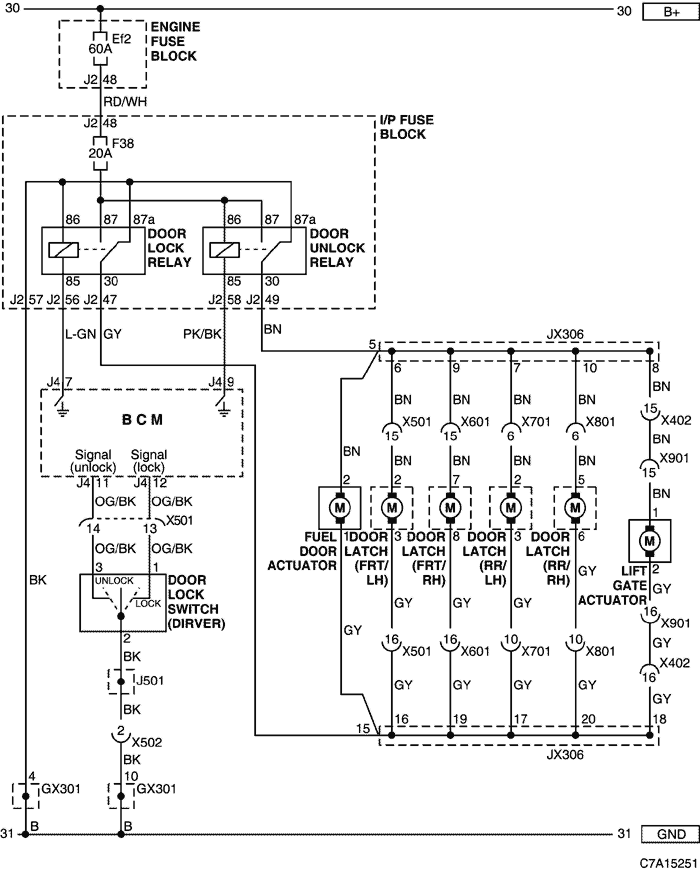

1) ACTUATOR CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
X402 (20 Pin, Colorless)Lift Gate - BodyBehind the left "C" pillar
X501 (18 Pin, Gray)Body - Front LH DoorUnder the left "A" Pillar
X601 (18 Pin, Gray)Body - Front RH DoorUnder the right "A" Pillar
X701 (15 Pin, Colorless)Body - Rear LH DoorUnder the left "B" Pillar
X801 (15 Pin, Colorless)Body - Rear RH DoorUnder the right "B" Pillar
X901(14 Pin, Colorless)Lift Gate - Lift Gate JPRBehind the "2nd" Seat
GX301 (Black/Gray)BodyUnder the right seat cushion

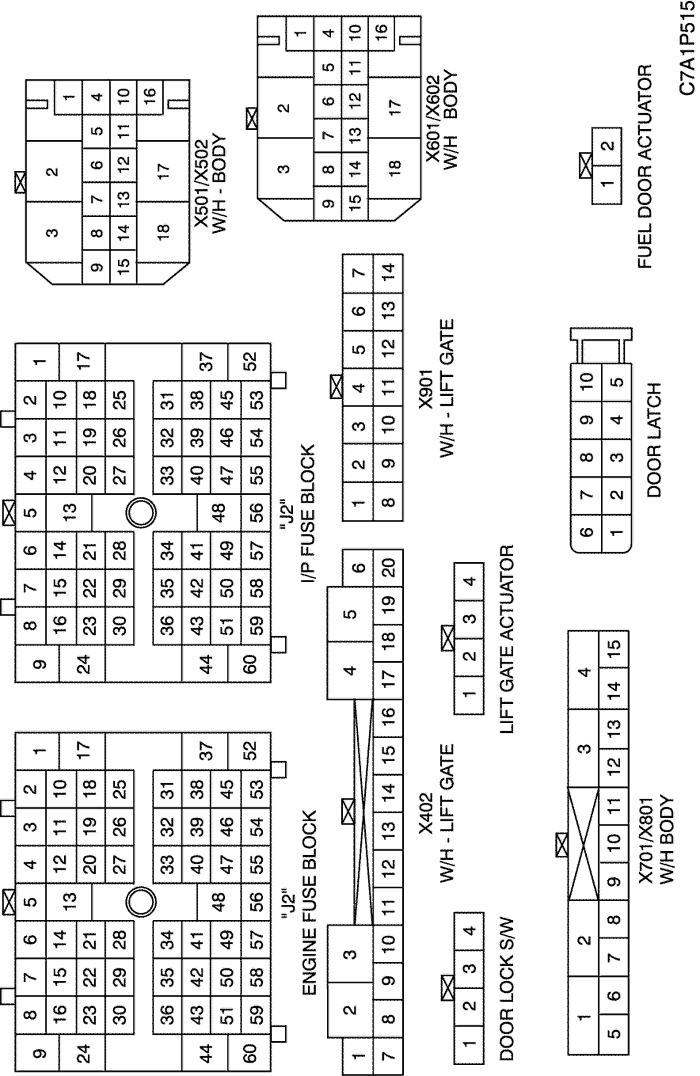

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H FRONT DOOR

Display graphicTranslations of text in graphics


W/H REAR DOOR

Display graphicTranslations of text in graphics


W/H INSTRUMENT PANEL

Display graphicTranslations of text in graphics


d. SPLICE PACK

JX306 (BLACK/BLUE)

Display graphicTranslations of text in graphics

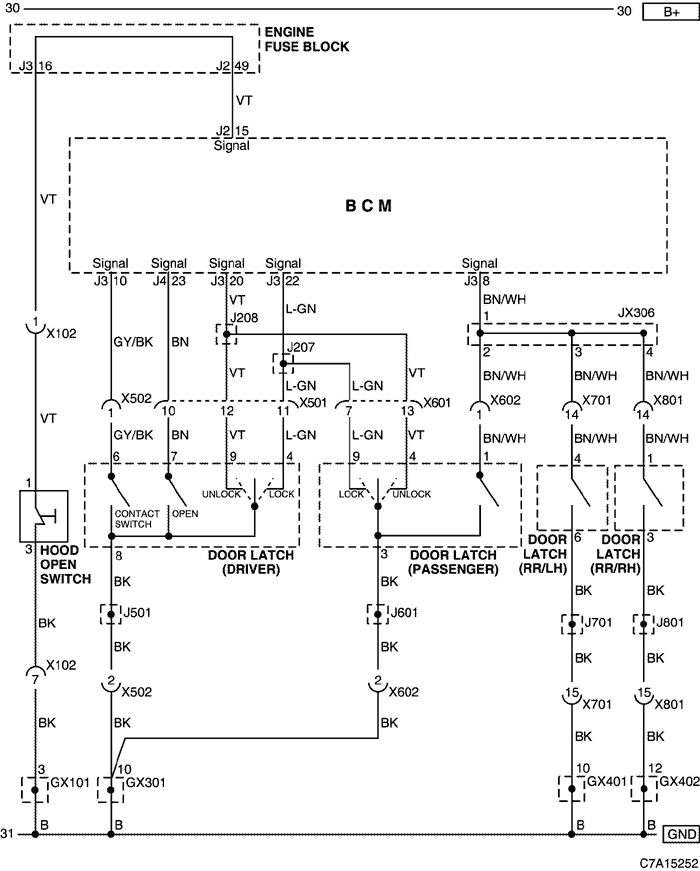

2) LATCH CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
X102 (12 Pin, Black)Front JPR - FrontBehind the left side Head Lamp
X501 (18 Pin, Gray)Body - Front LH DoorUnder the left "A" Pillar
X502 (18 Pin, Colorless)Body - Front LH DoorUnder the left "A" Pillar
X601 (18 Pin, Gray)Body - Front RH DoorUnder the right "A" Pillar
X602 (18 Pin, Colorless)Body - Front RH DoorUnder the right "A" Pillar
X701 (15 Pin, Colorless)Body - Rear LH DoorUnder the left "B" Pillar
X801 (15 Pin, Colorless)Body - Rear RH DoorUnder the right "B" Pillar
GX101 (Black/Gray)FrontBehind the left HeadLamp
GX301 (Black/Gray)BodyUnder the right seat cushion
GX401 (Black/Gray)BodyRight the luggage compartment
GX402 (Black/Gray)BodyRight the luggage compartment

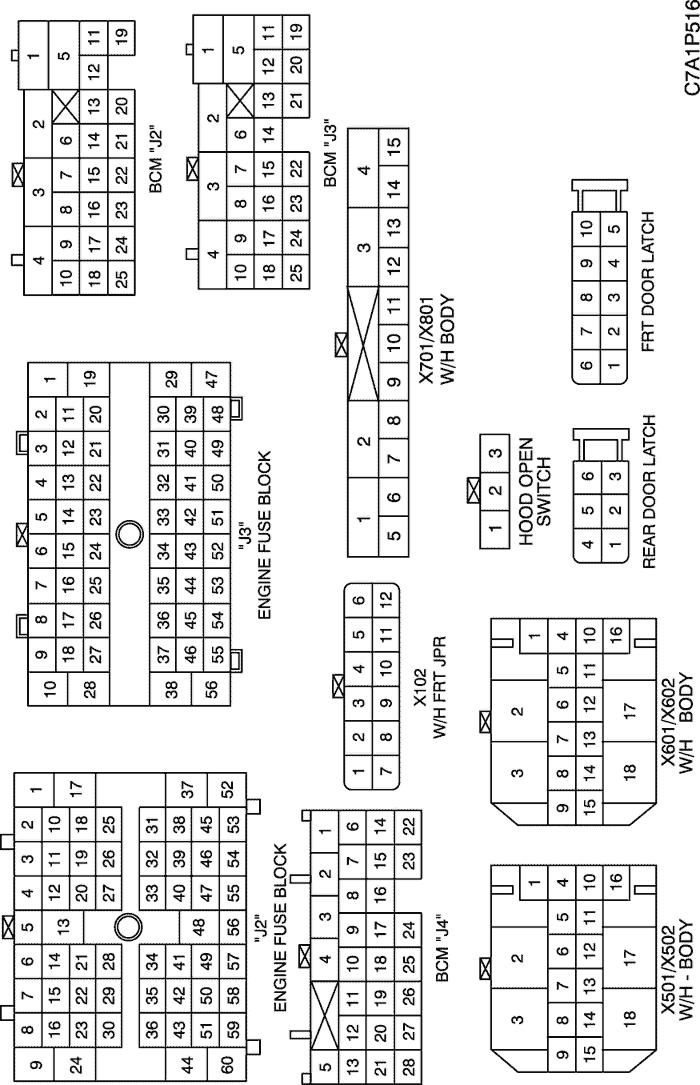

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H FRONT

Display graphicTranslations of text in graphics


W/H FRONT DOOR

Display graphicTranslations of text in graphics


W/H REAR DOOR

Display graphicTranslations of text in graphics


d. SPLICE PACK

JX306 (BLACK/BLUE)

Display graphicTranslations of text in graphics

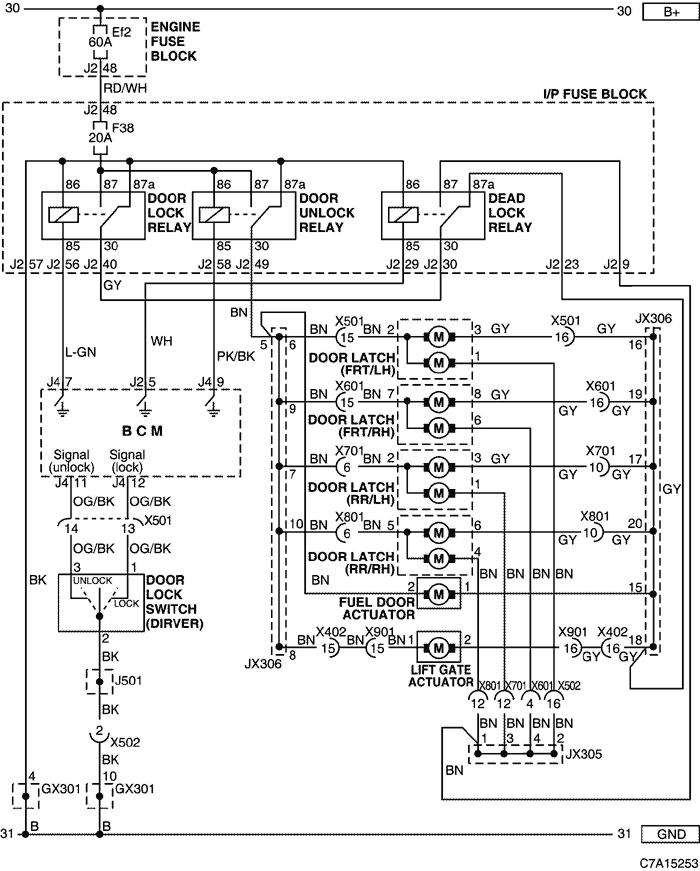

3) DEAD LOCK CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
X201 (92 Pin, Black)Body - I.PBelow to the "A" pillar
X402 (20 Pin, Colorless)Lift Gate - BodyBehind the left "C" pillar
X501 (18 Pin, Gray)Body - Front LH DoorUnder the left "A" Pillar
X502 (18 Pin, Colorless)Body - Front LH DoorUnder the left "A" Pillar
X601 (18 Pin, Gray)Body - Front RH DoorUnder the right "A" Pillar
X701 (15 Pin, Colorless)Body - Rear LH DoorUnder the left "B" Pillar
X801 (15 Pin, Colorless)Body - Rear RH DoorUnder the right "B" Pillar
X901(14 Pin, Colorless)Lift Gate - Lift Gate JPRBehind the "2nd" Seat
GX301 (Black/Gray)BodyUnder the right seat cushion

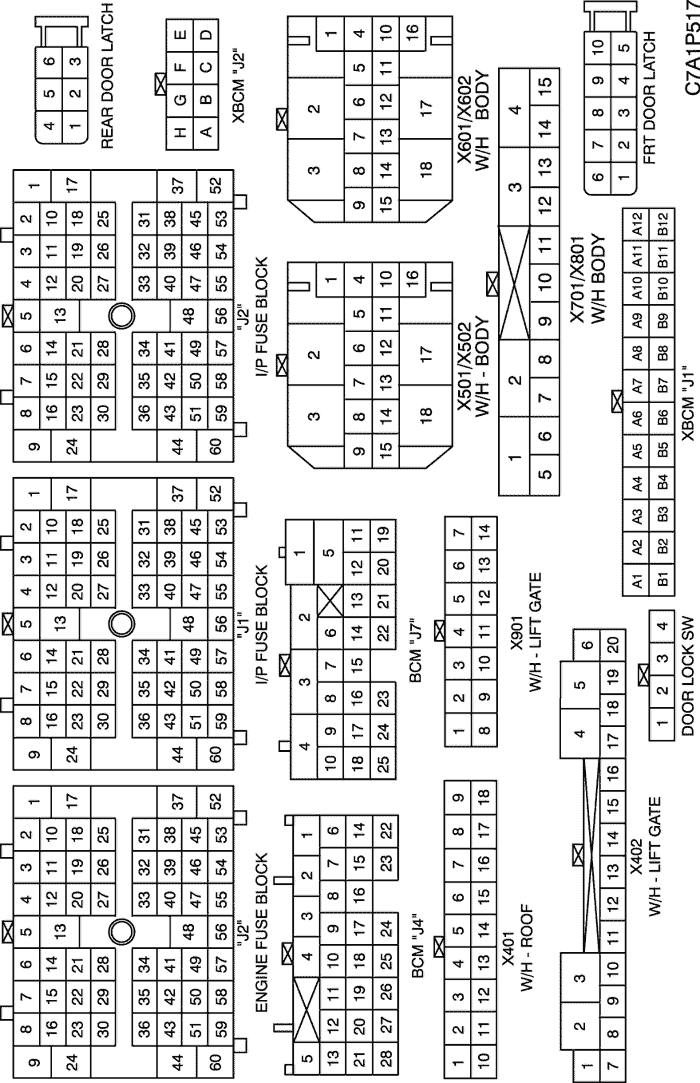

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H FRONT DOOR

Display graphicTranslations of text in graphics


W/H REAR DOOR

Display graphicTranslations of text in graphics


d. SPLICE PACK

JX305 (BLACK)

Display graphicTranslations of text in graphics


JX306 (BLACK/BLUE)

Display graphicTranslations of text in graphics
