SECTION 5

ELECTRICAL WIRING DIAGRAMS



1. STARTING & CHARGING SYSTEM

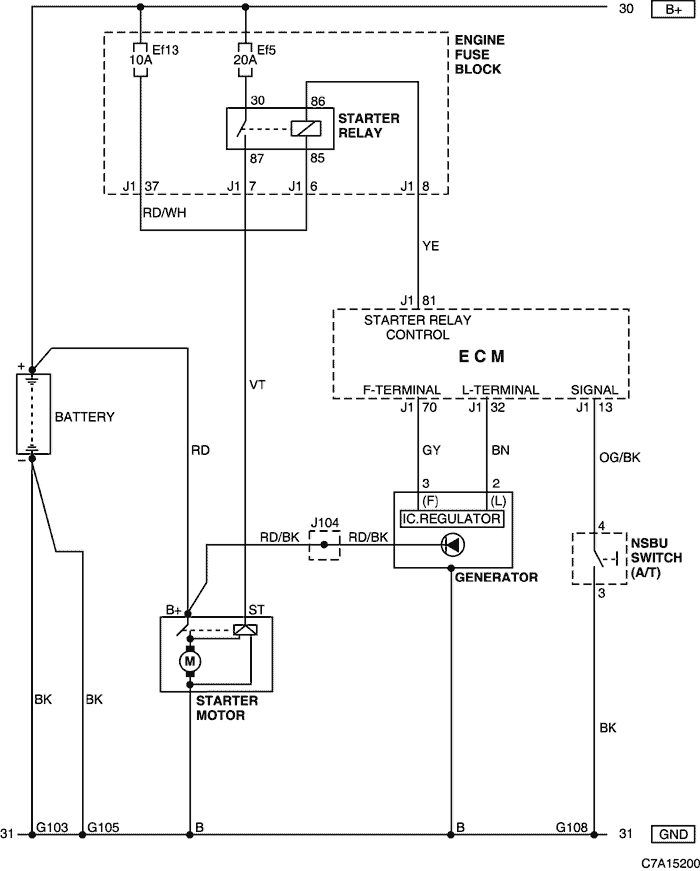

1) BATTERY, STARTER MOTOR, GENERATOR & NSBU SWITCH CIRCUIT : FAM II 2.4D (LD9)

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
G103BatteryBehind the Engine Fuse Block
G105BatteryOn the Cylinder Block
G108Engine (FAM II)On the Cylinder Block

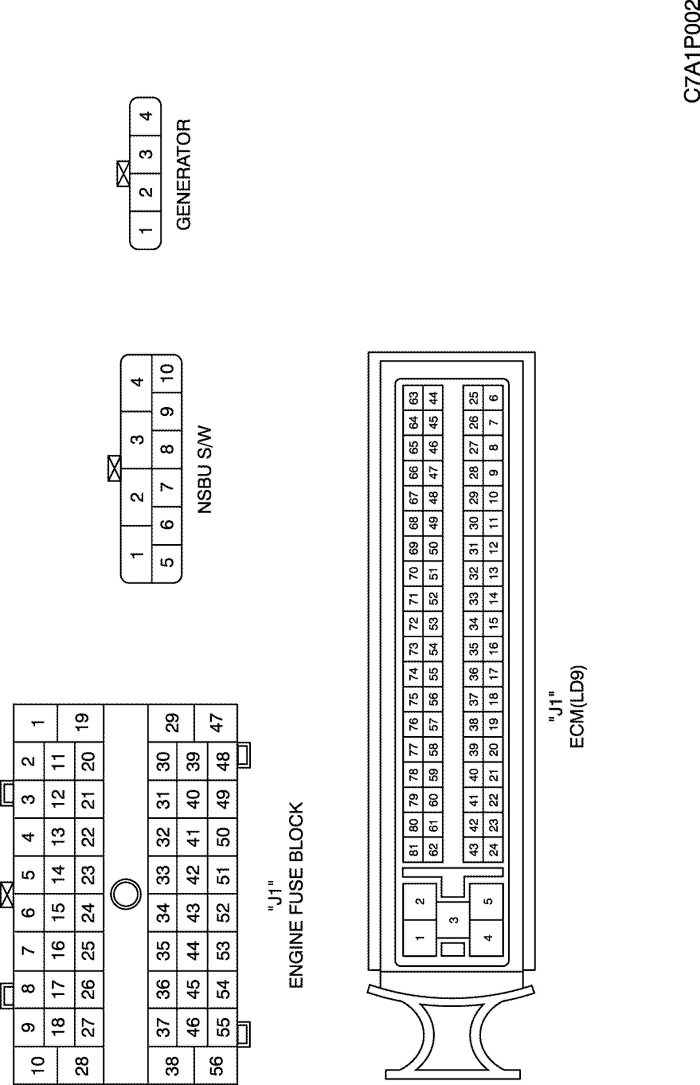

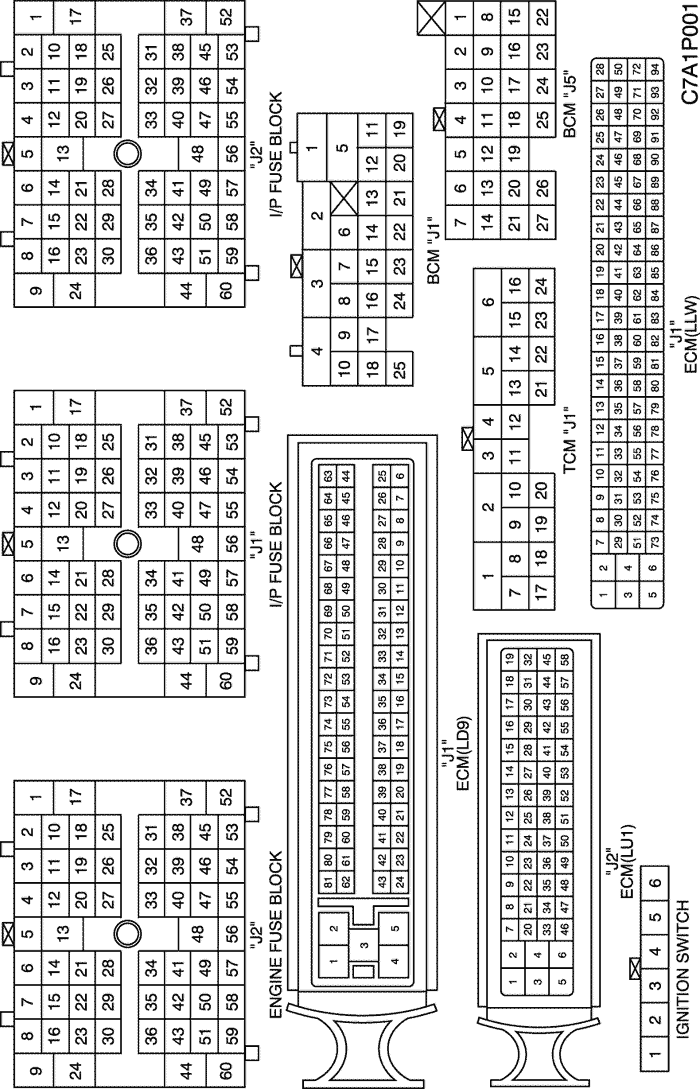

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H ENGINE (LD9)

Display graphicTranslations of text in graphics


2) BATTERY, STARTER MOTOR, GENERATOR & NSBU SWITCH CIRCUIT ; 2.0 DIESEL (LLW)

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
G103BatteryBehind the Engine Fuse Block
G105BatteryOn the Cylinder Block
G112 (Black/Gray)Engine (DSL)On the Cylinder Block

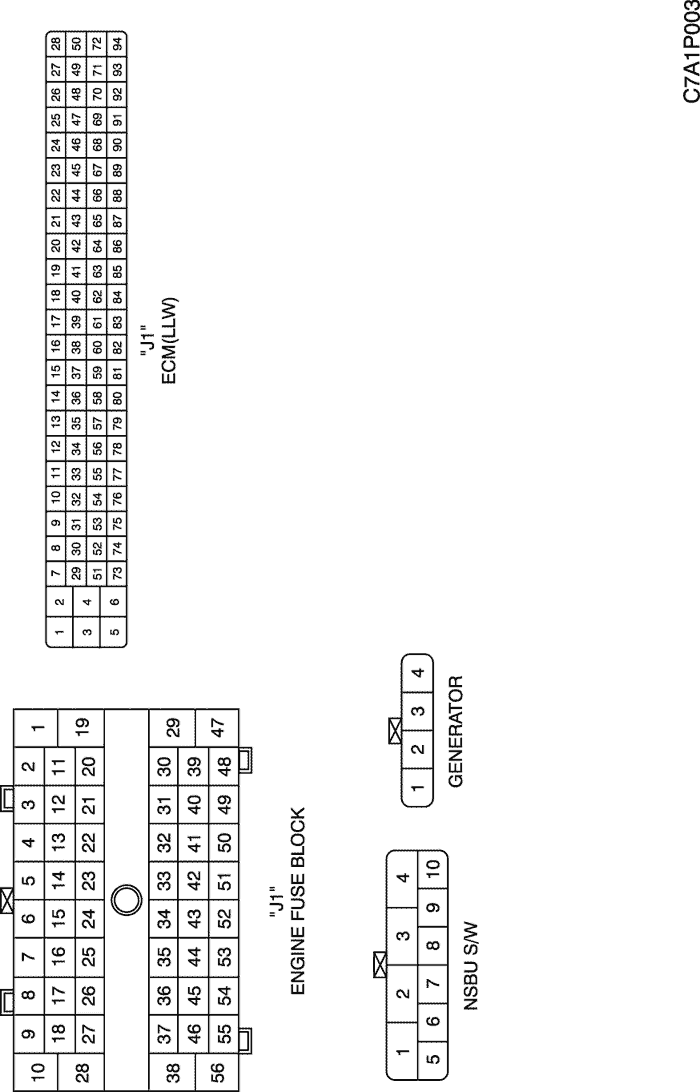

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H ENGINE (LLW)

Display graphicTranslations of text in graphics

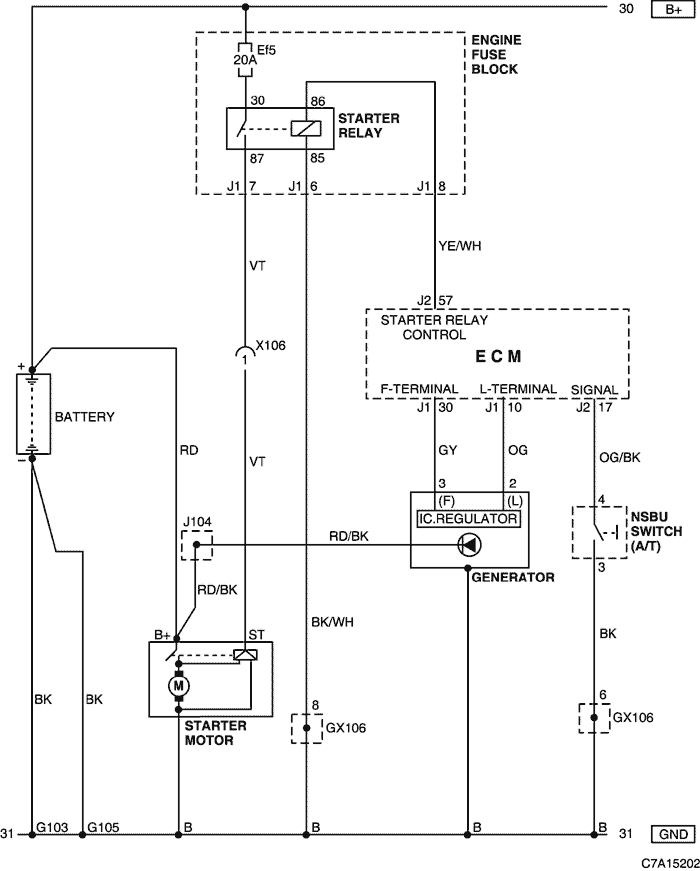

3) BATTERY, STARTER MOTOR, GENERATOR & NSBU SWITCH CIRCUIT : HFV6 3.2 (LU1)

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
X106 (7 Pin, Black)Engine - Fuel Injector (HVF6)Upper the Cylinder Head
G103BatteryBehind the Engine Fuse Block
G105BatteryOn the Cylinder Block
GX106 (Black/Gray)Engine (DSL/HFV6)Upper the Cylinder Head

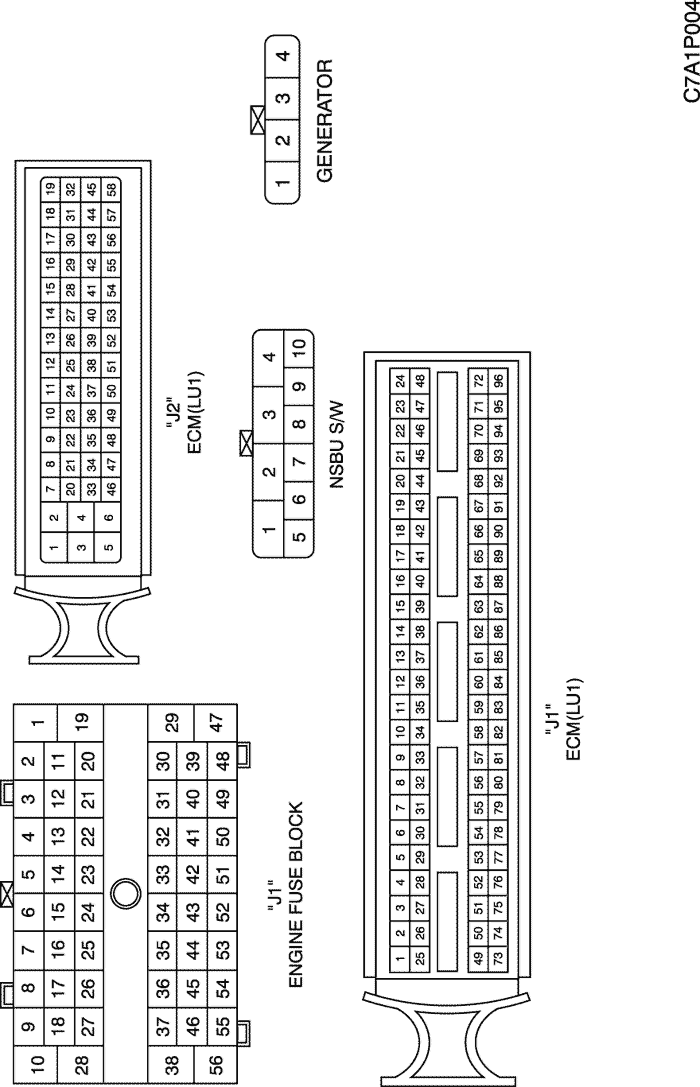

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H ENGINE (LUI)

Display graphicTranslations of text in graphics

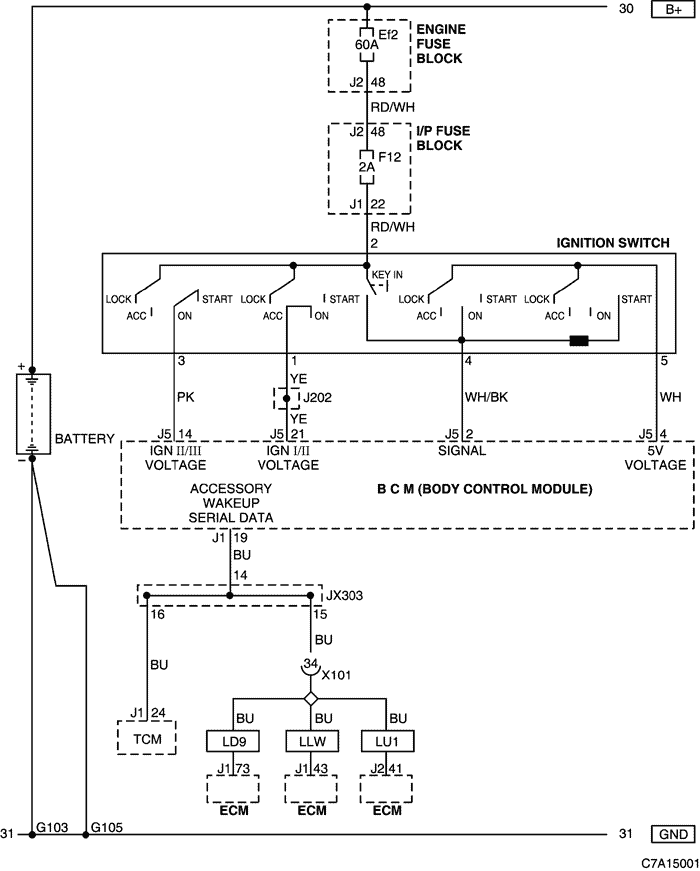

4) IGNITION SWITCH CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
X101 (36 Pin, Black)Engine - BodyBehind the Engine Fuse Block
G103BatteryBehind the Engine Fuse Block
G105BatteryOn the Cylinder Block

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H INSTRUMENT PANEL

Display graphicTranslations of text in graphics


d. SPLICE PACK

JX303

Display graphicTranslations of text in graphics

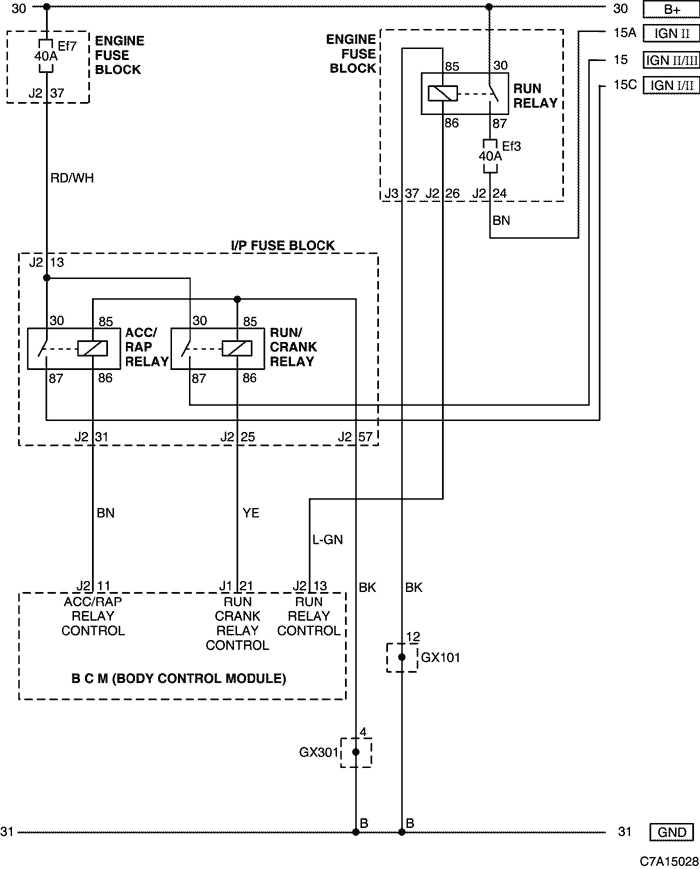

5) POWER MODE CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESSCONNECTOR POSITION
X101 (36 Pin, Black)Engine - BodyBehind the Engine Fuse Block
GX301 (Black/Gray)BodyUnder the right seat cushion

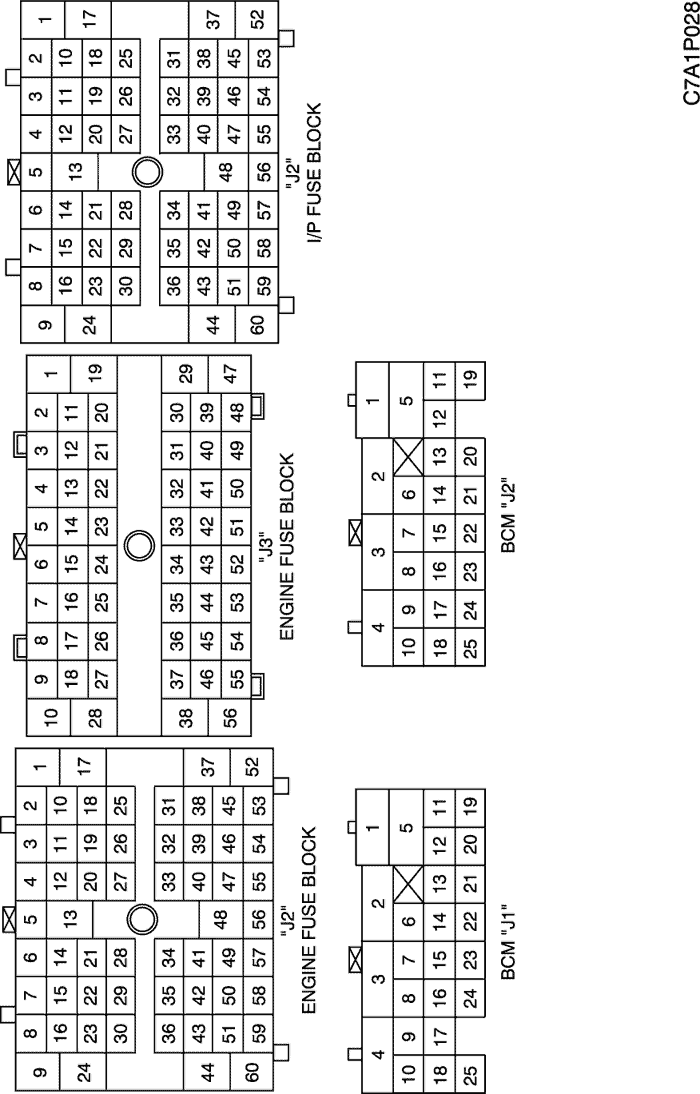

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

W/H BODY

Display graphicTranslations of text in graphics
