SECTION 3

WIRING DIAGRAM FOR POWER SUPPLIES



1. IGNITION SWITCH CIRCUIT

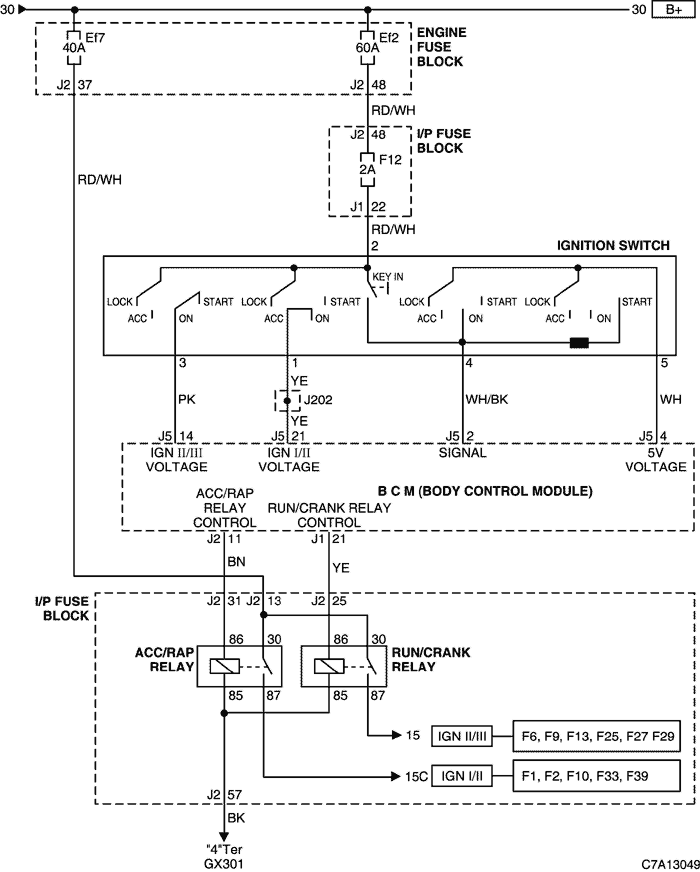

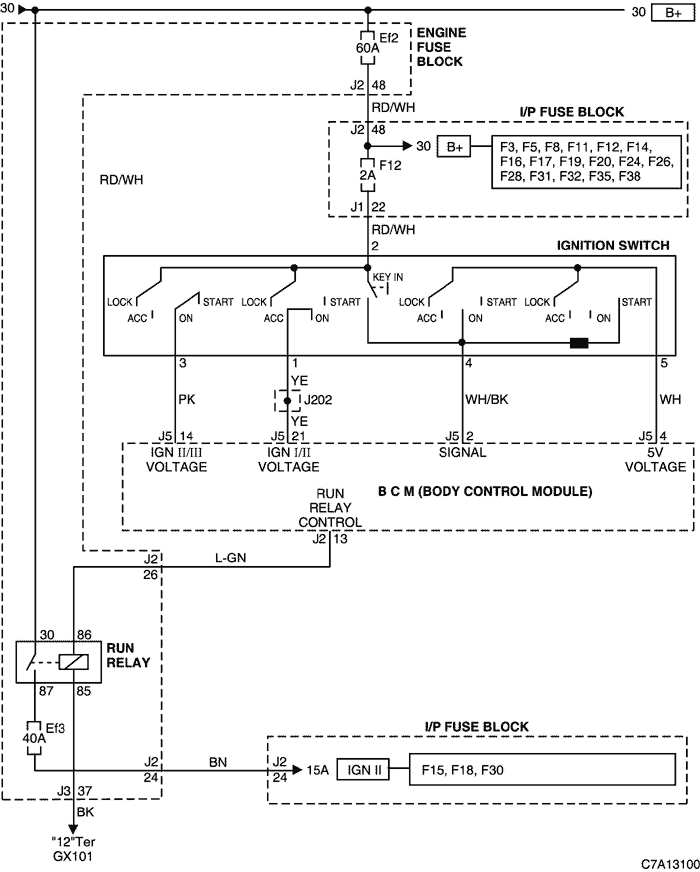

1) BATTERY & IGN II CIRCUIT

Display graphicTranslations of text in graphics


2) IGN I/II & IGN II/III CIRCUIT

Display graphicTranslations of text in graphics

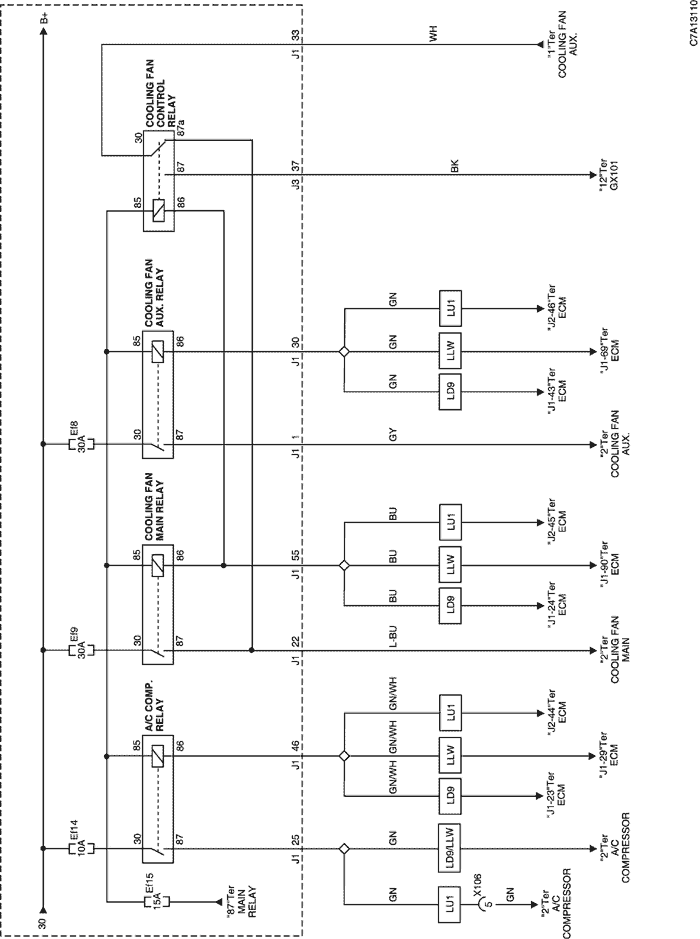

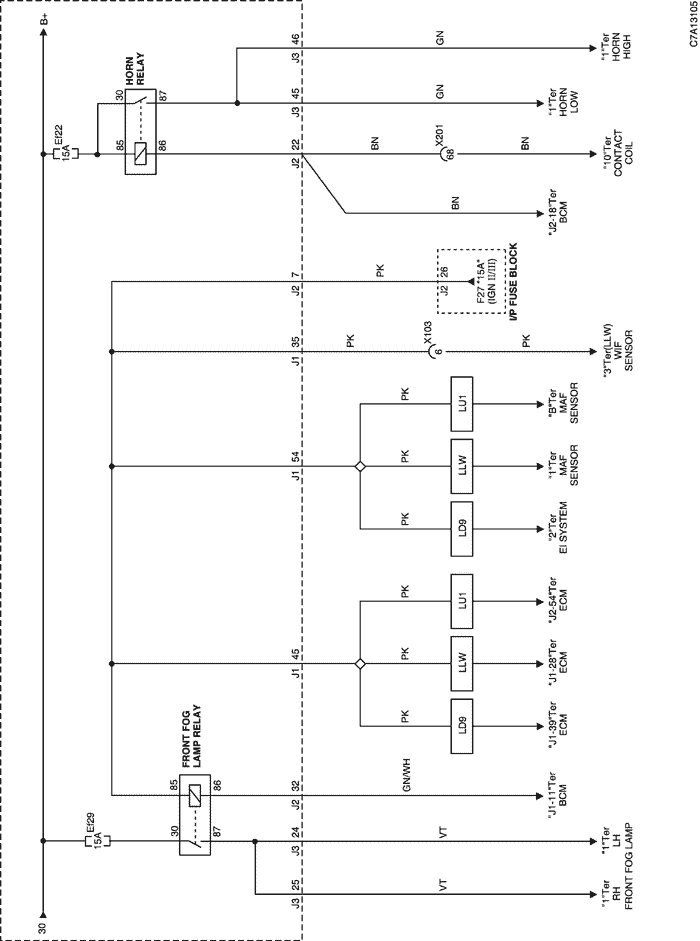

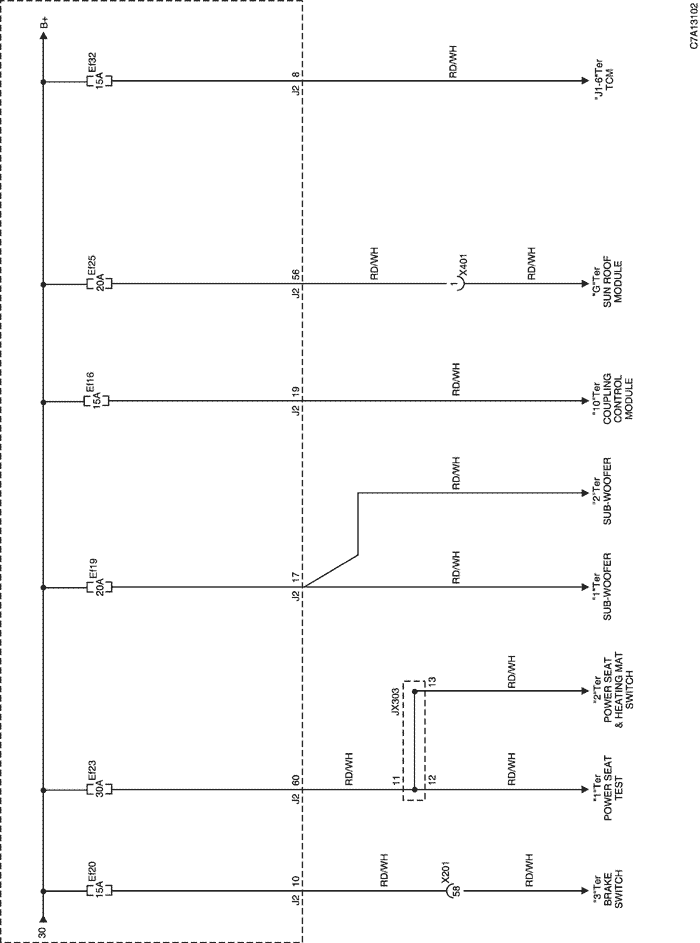

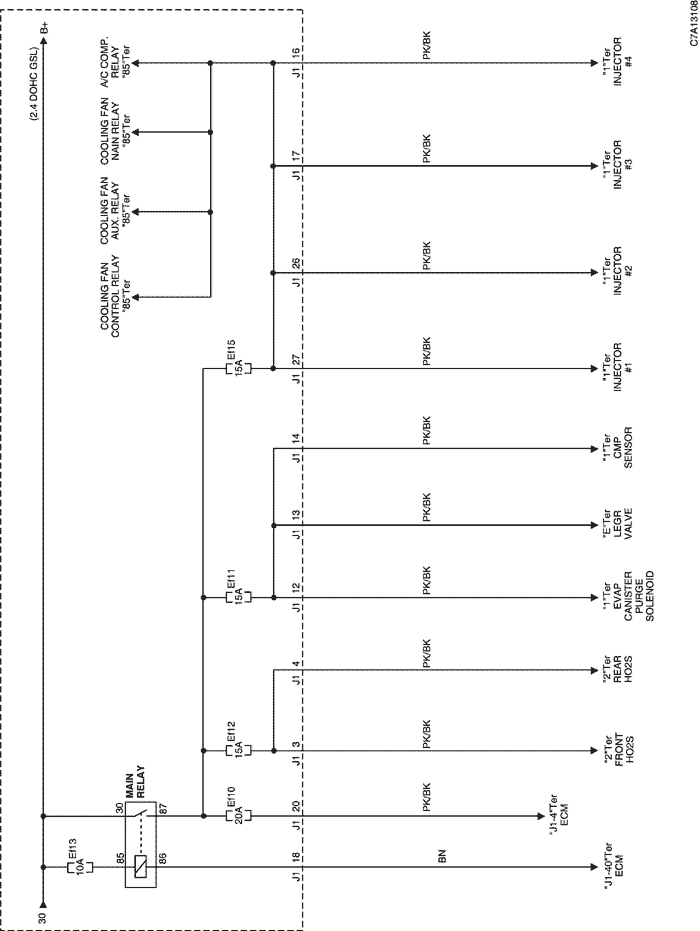

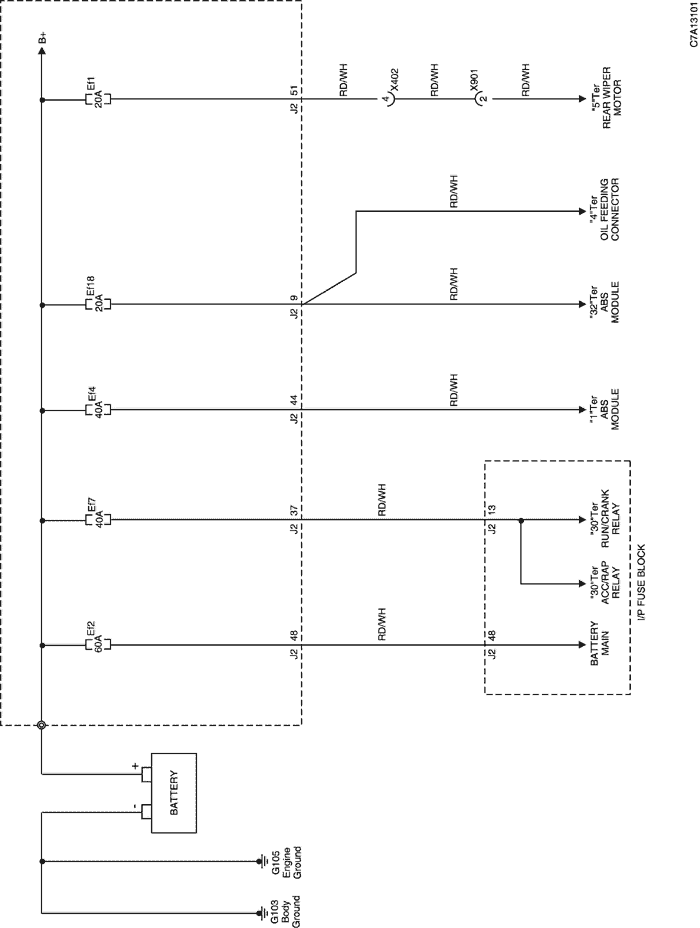

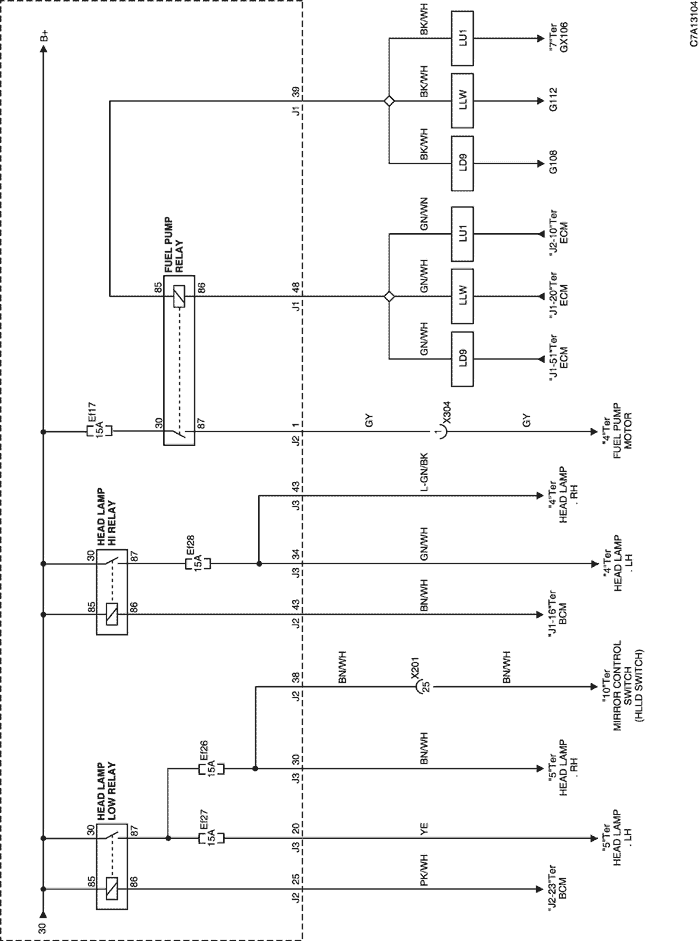

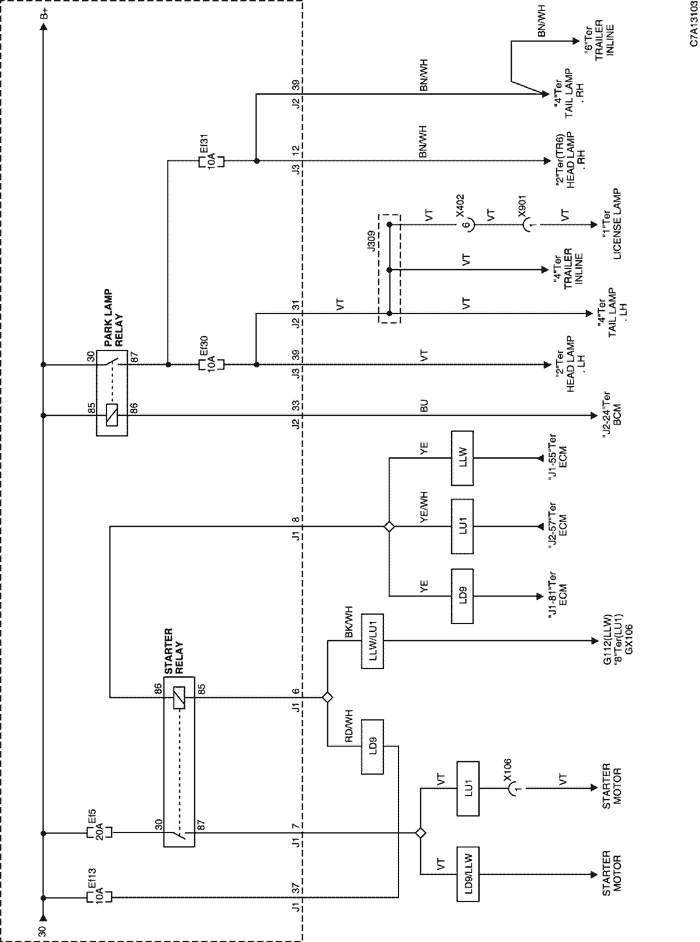

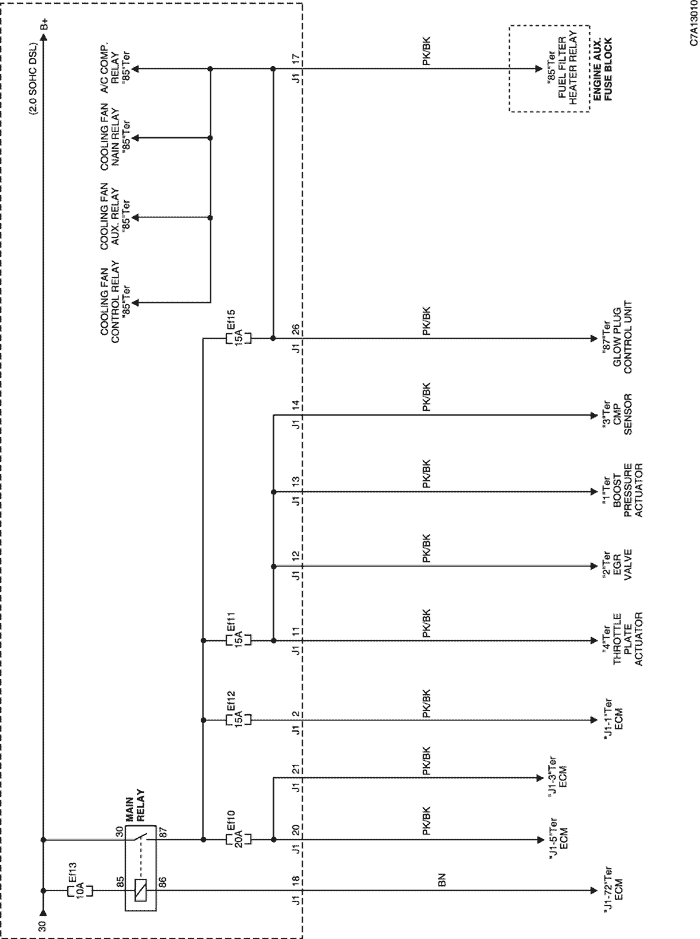

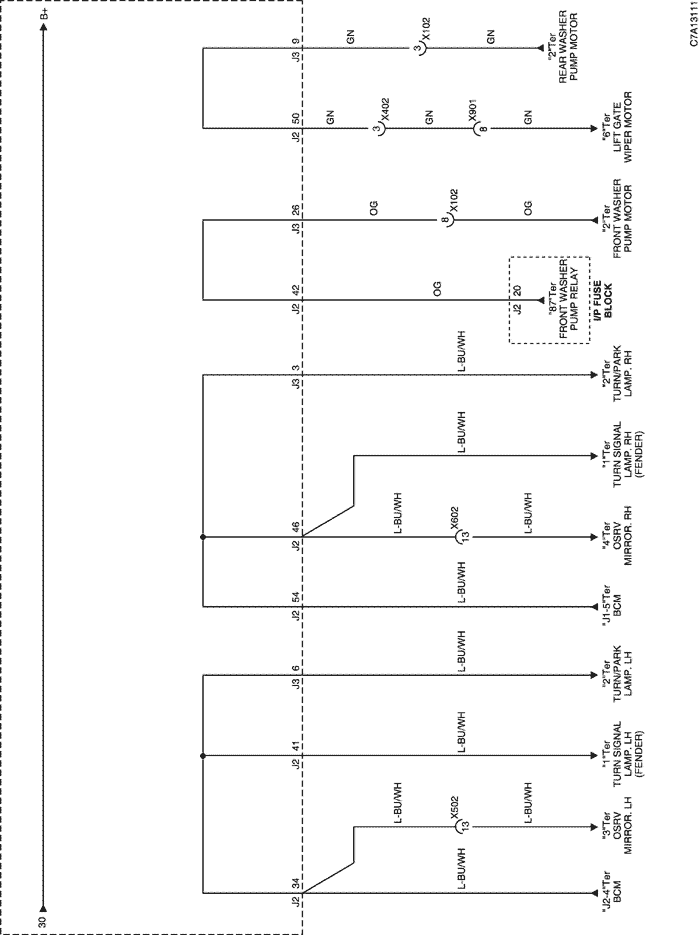

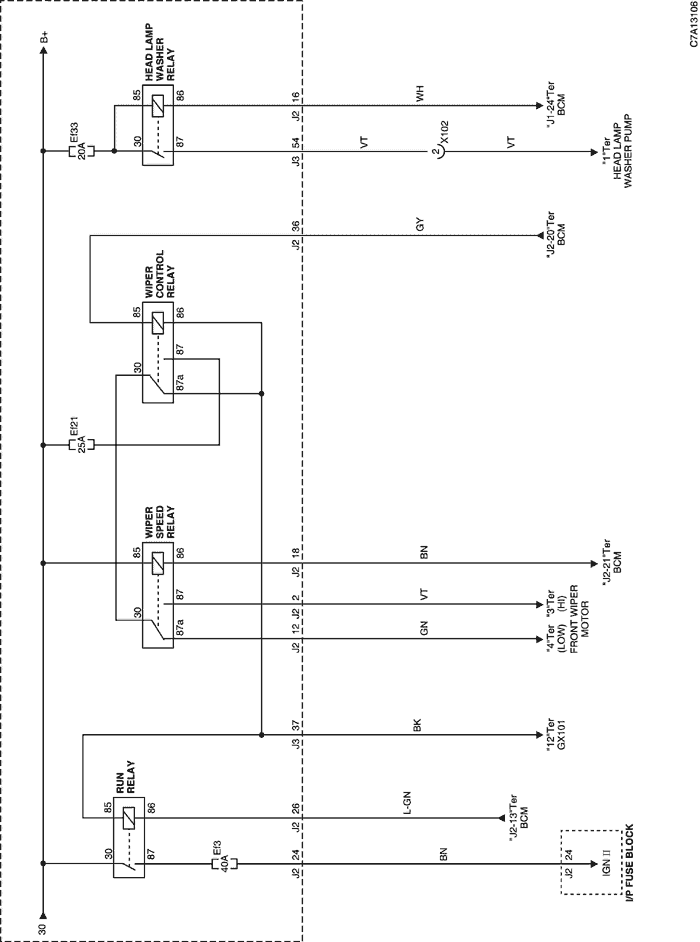

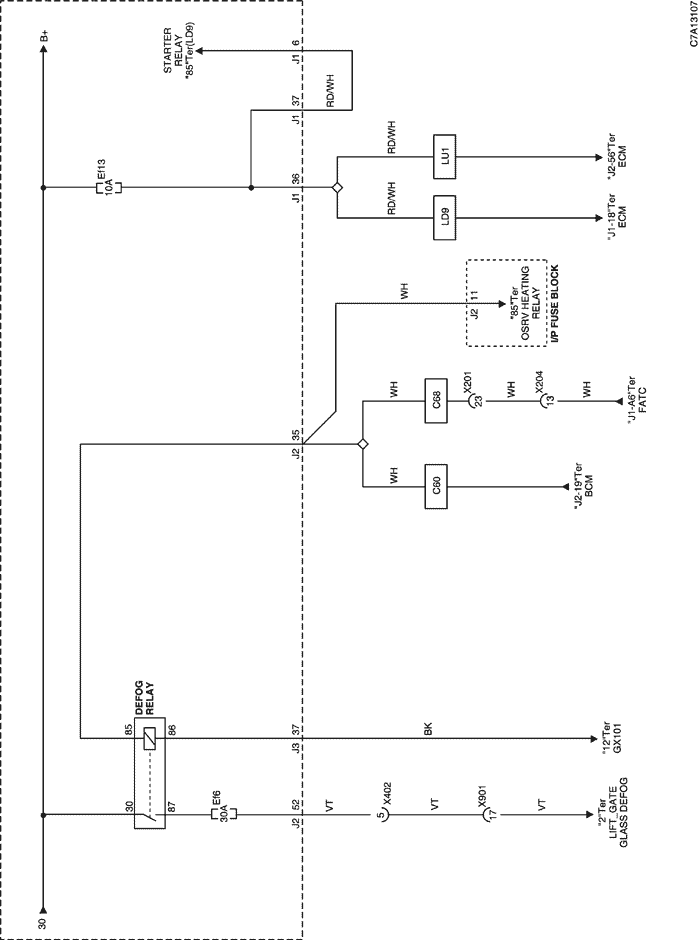

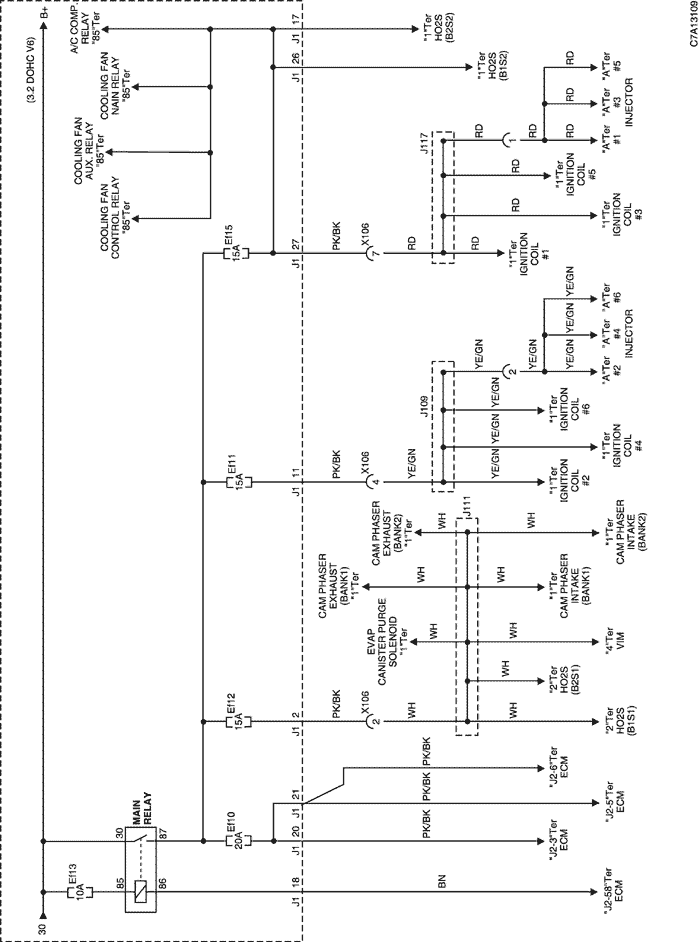

2. ENGINE FUSE BLOCK CIRCUIT

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics

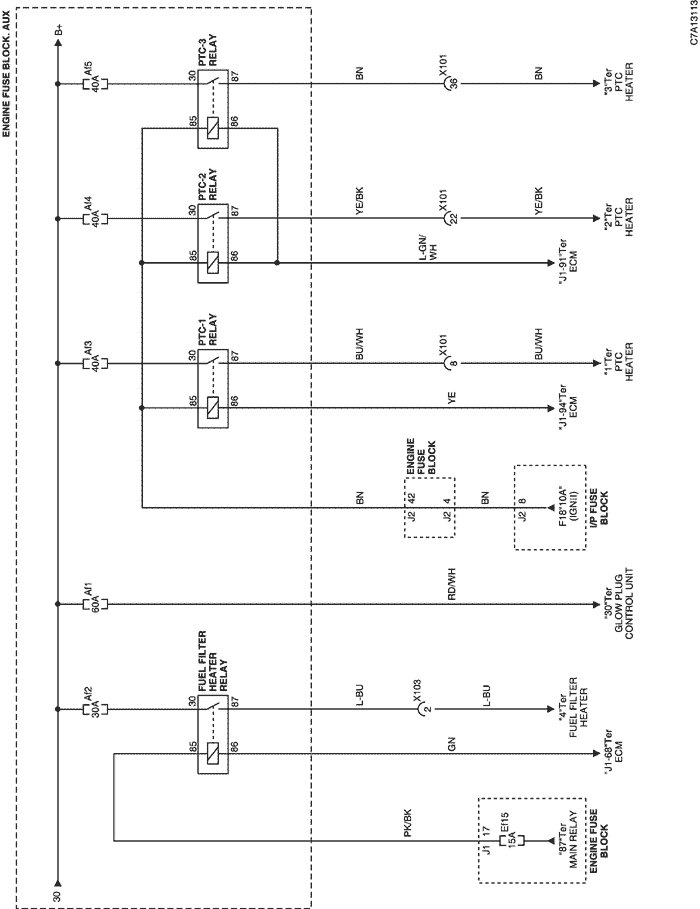

3. ENGINE FUSE BLOCK. AUX CIRCUIT

Display graphicTranslations of text in graphics

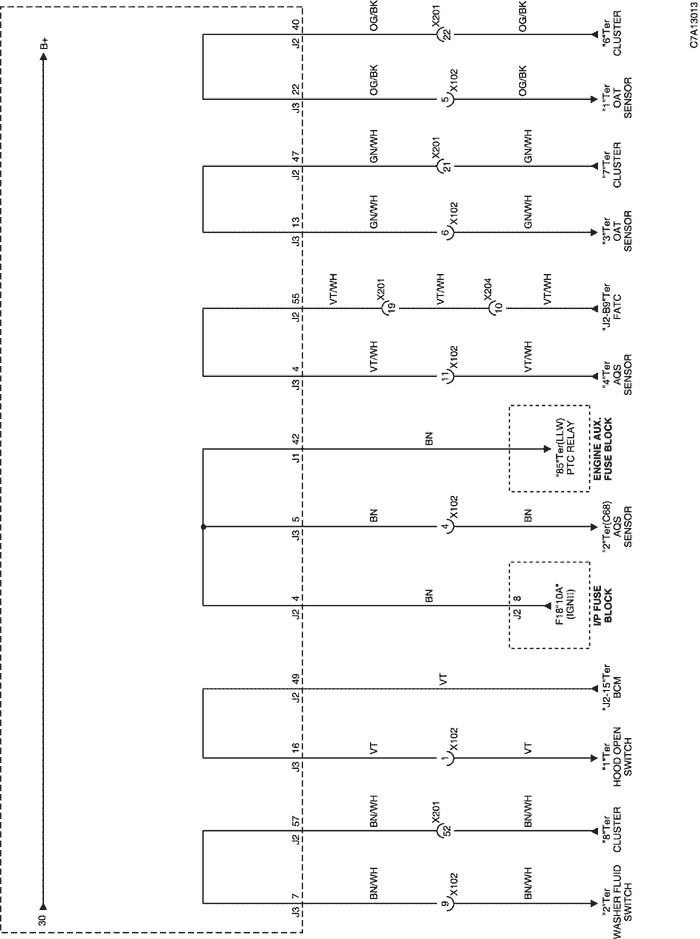

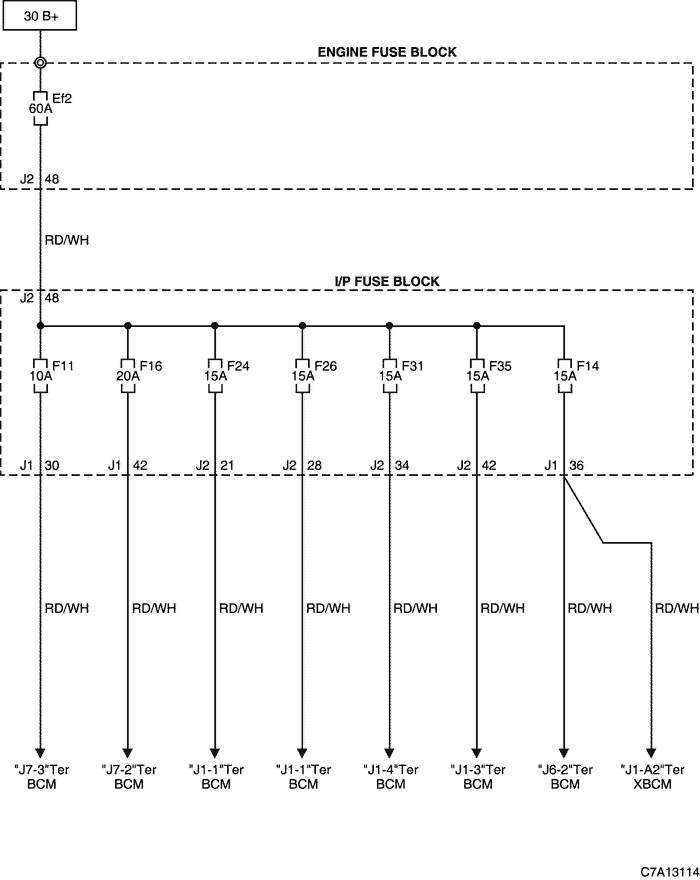

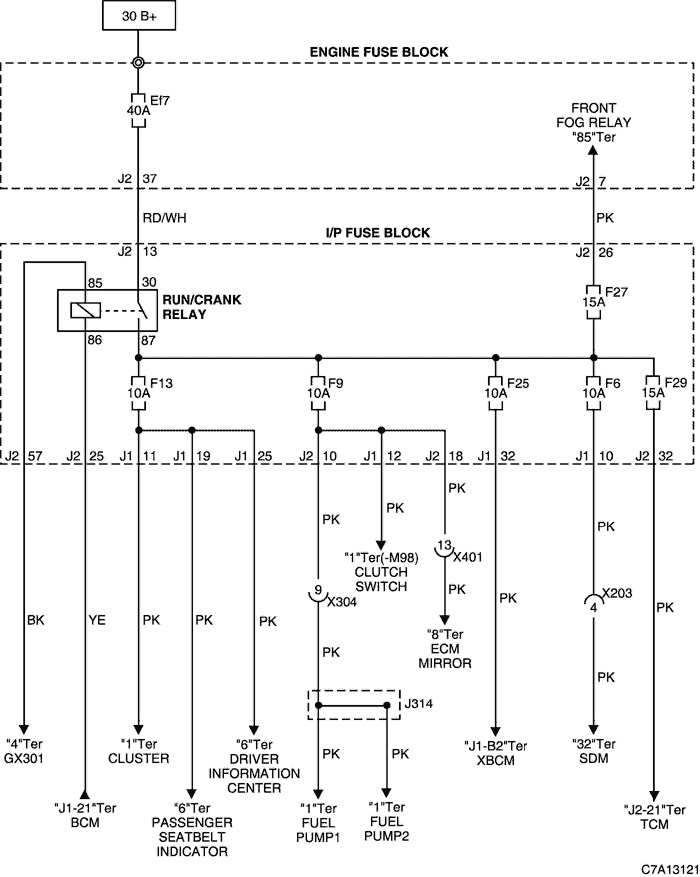

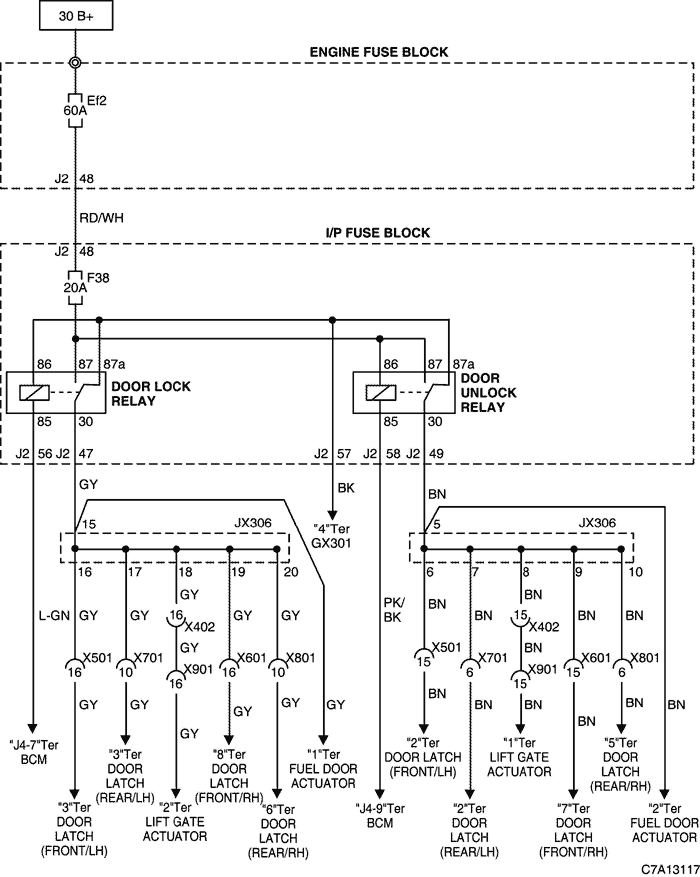

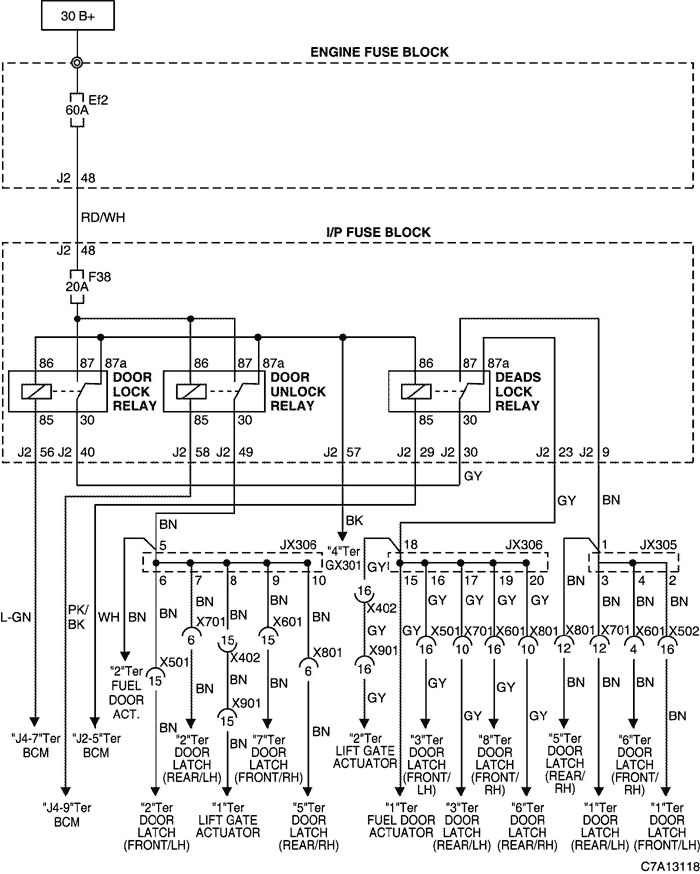

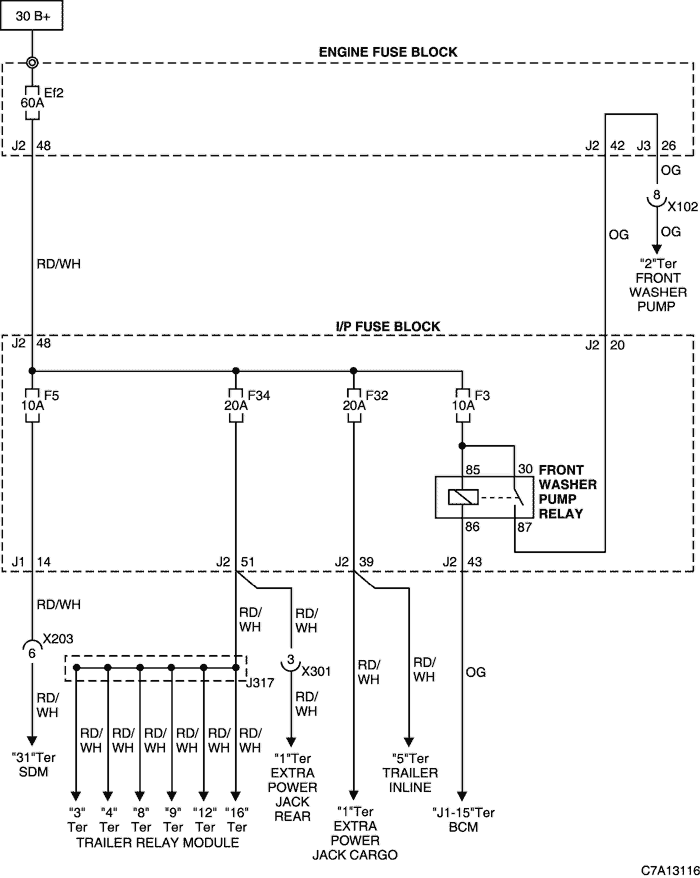

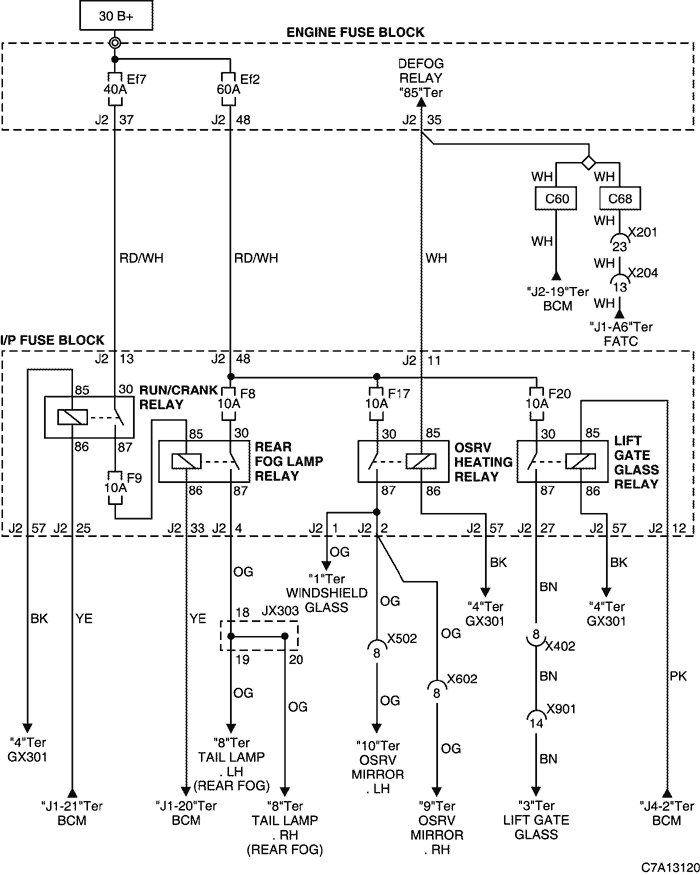

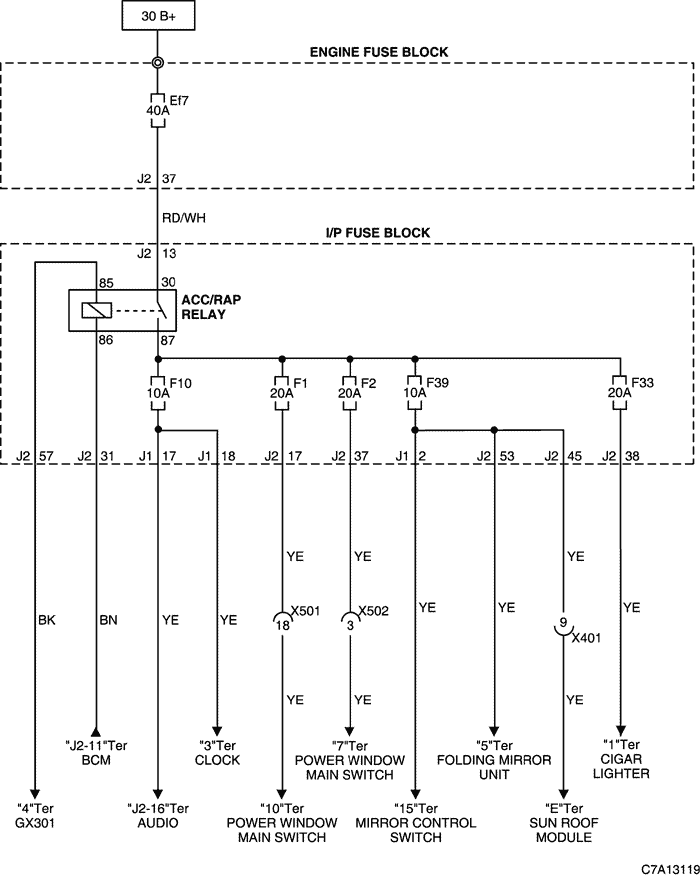

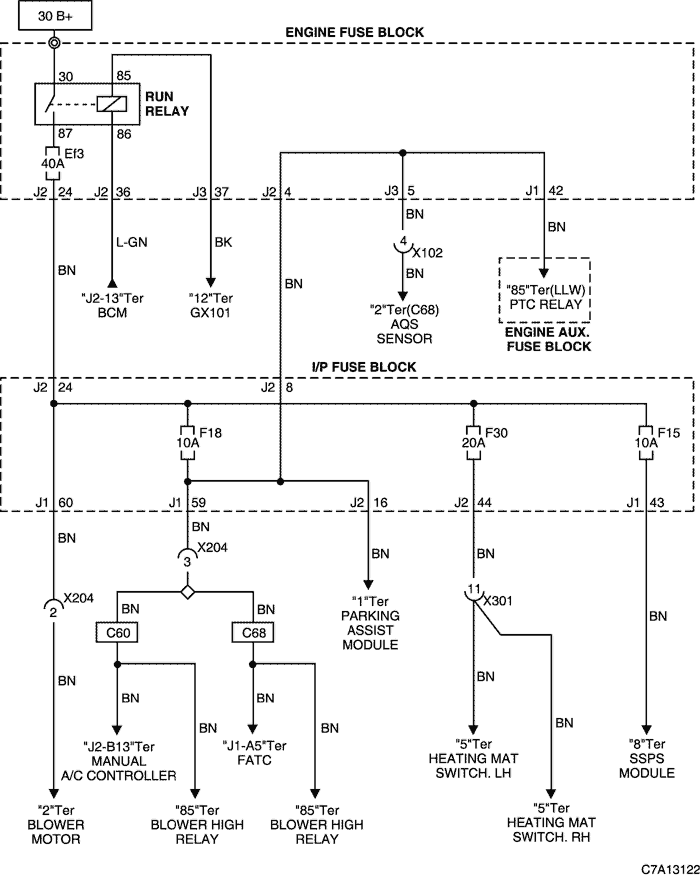

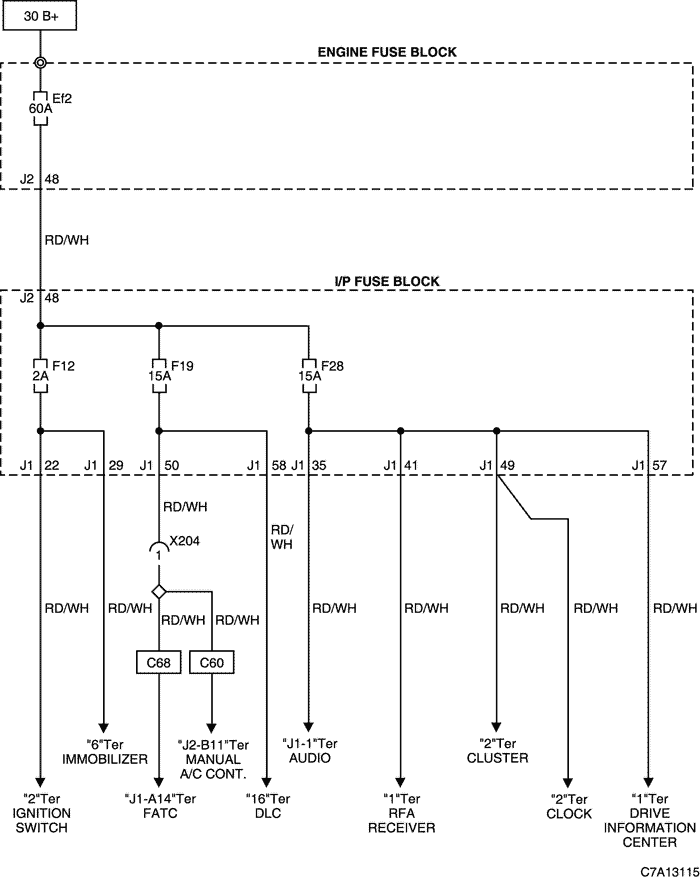

4. I/P FUSE BLOCK CIRCUIT

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics

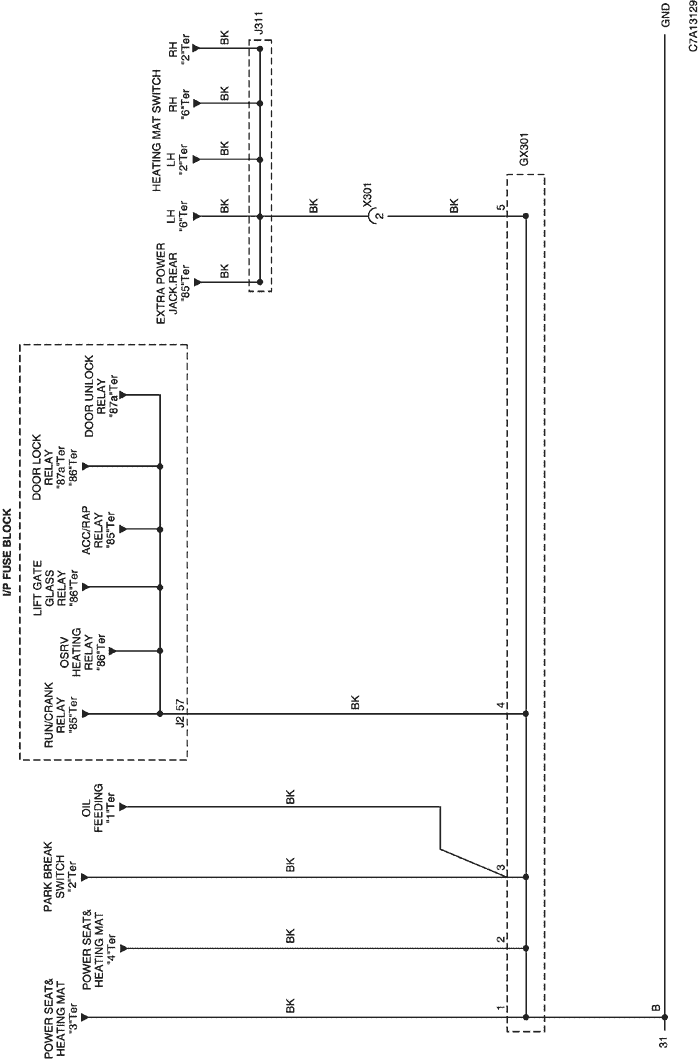

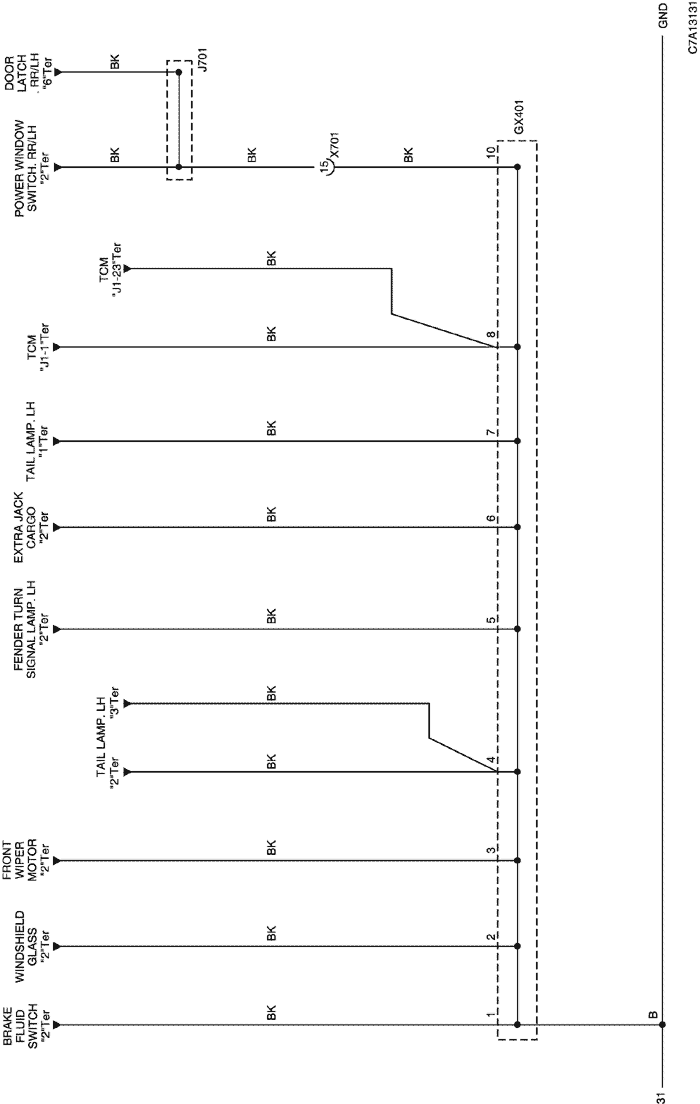

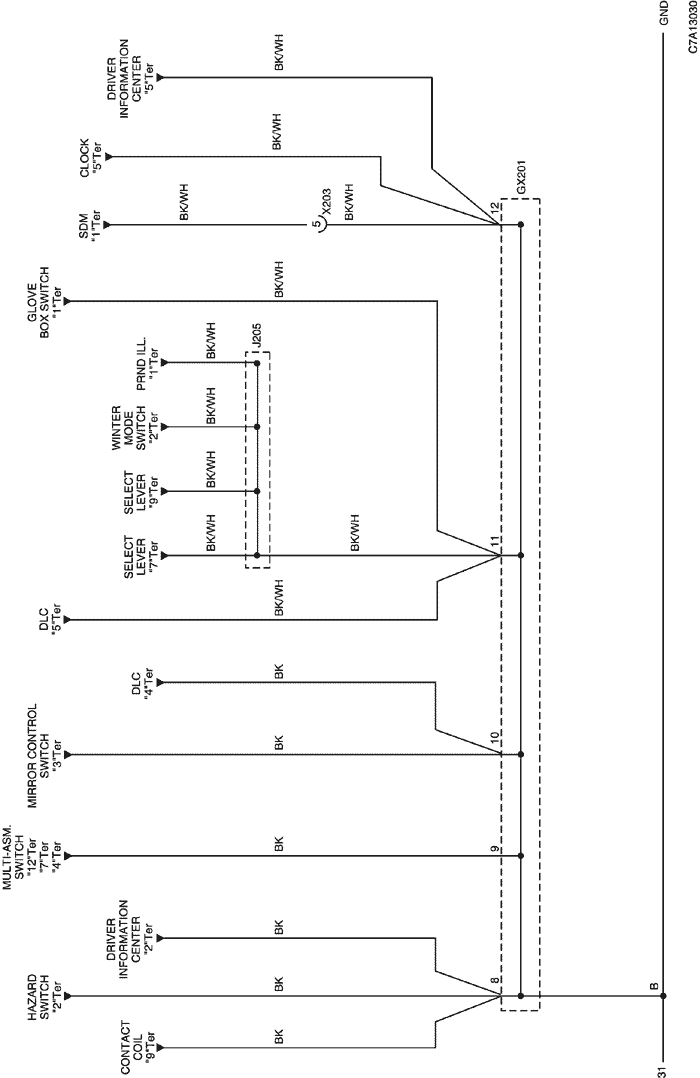

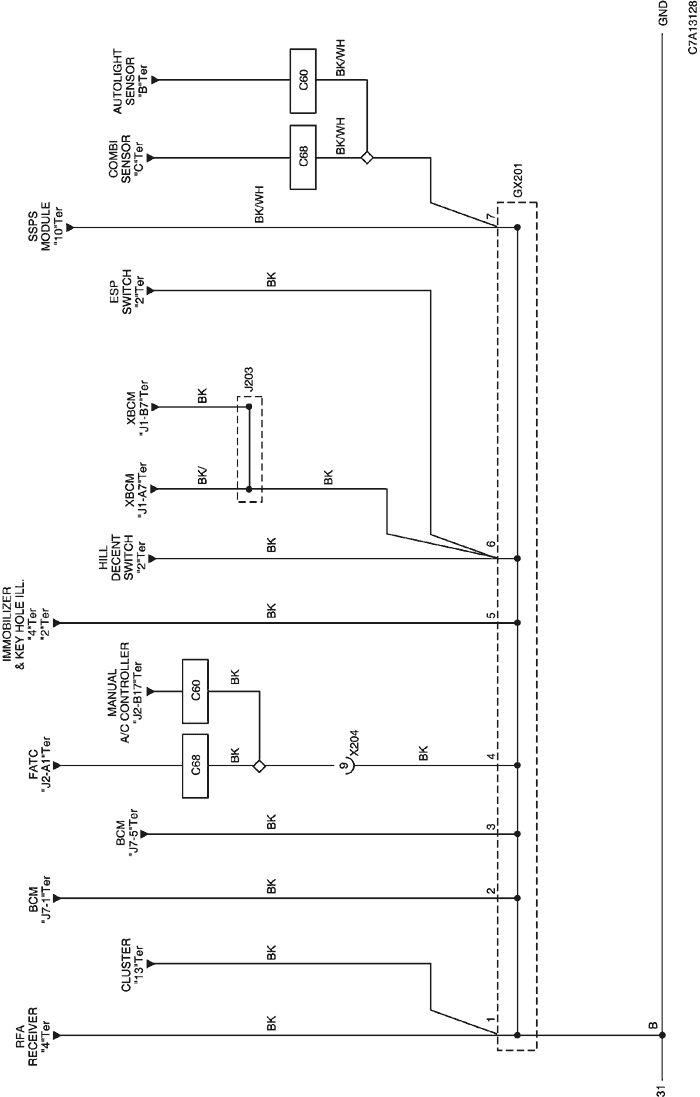

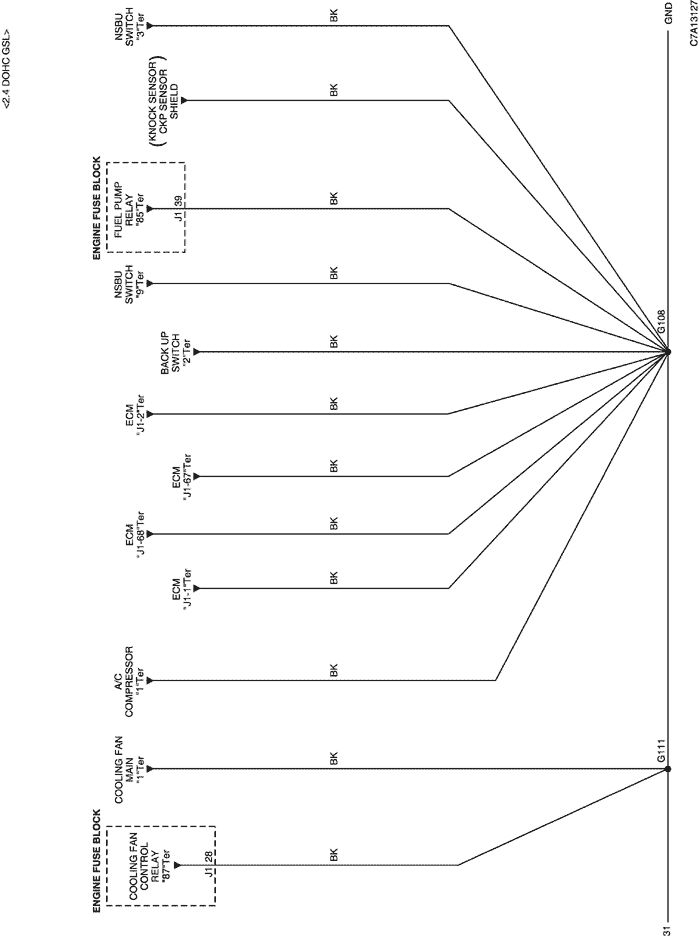

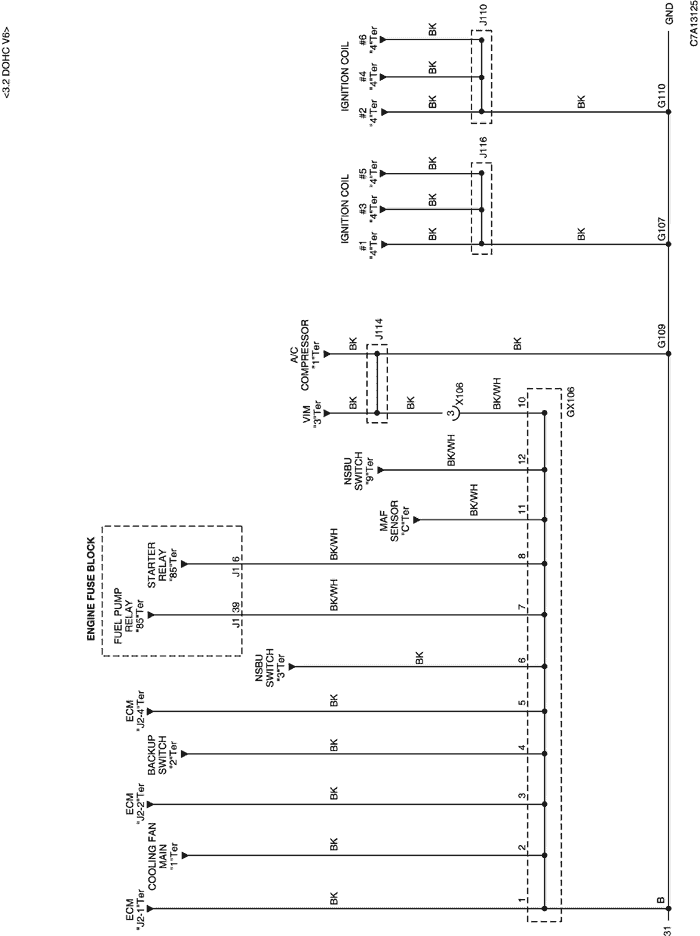

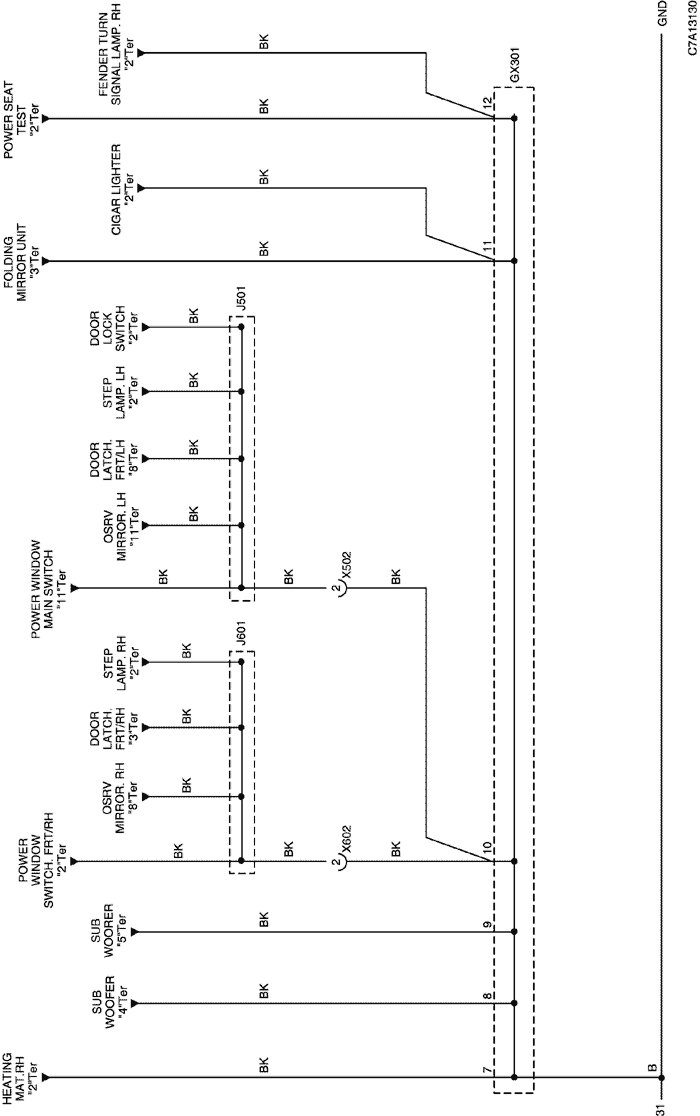

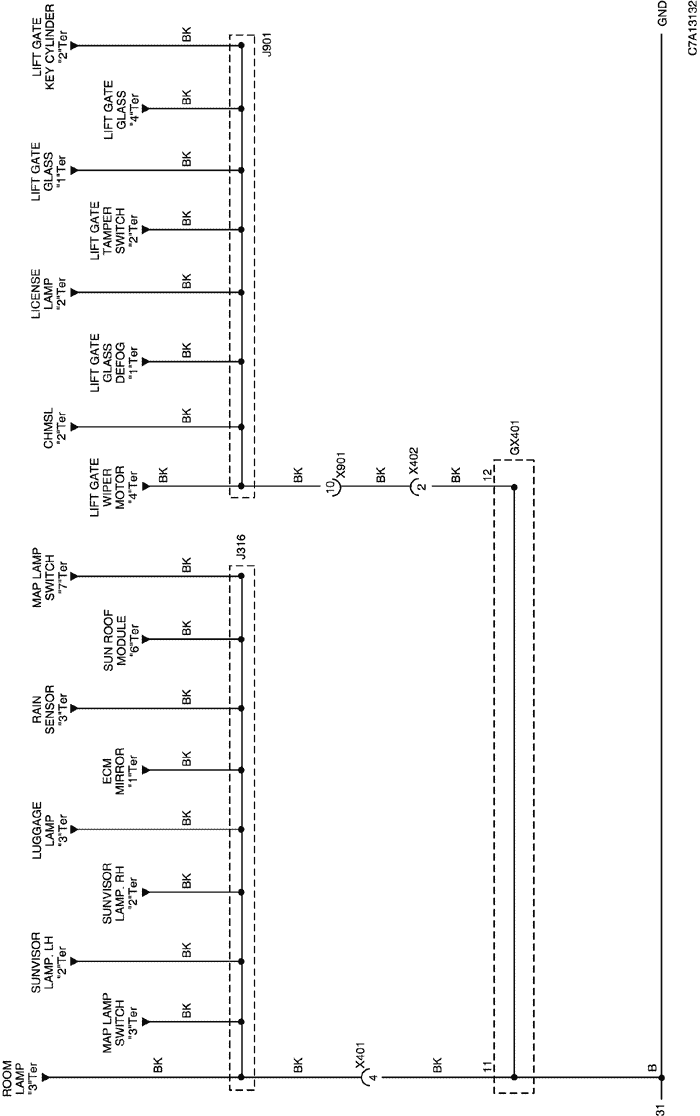

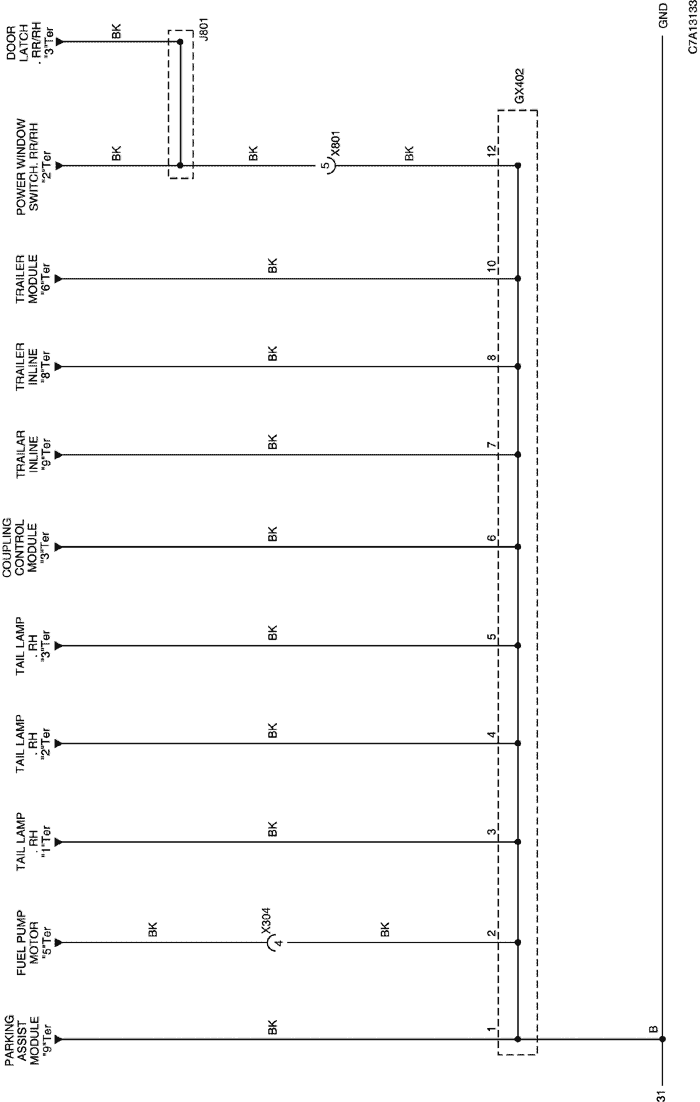

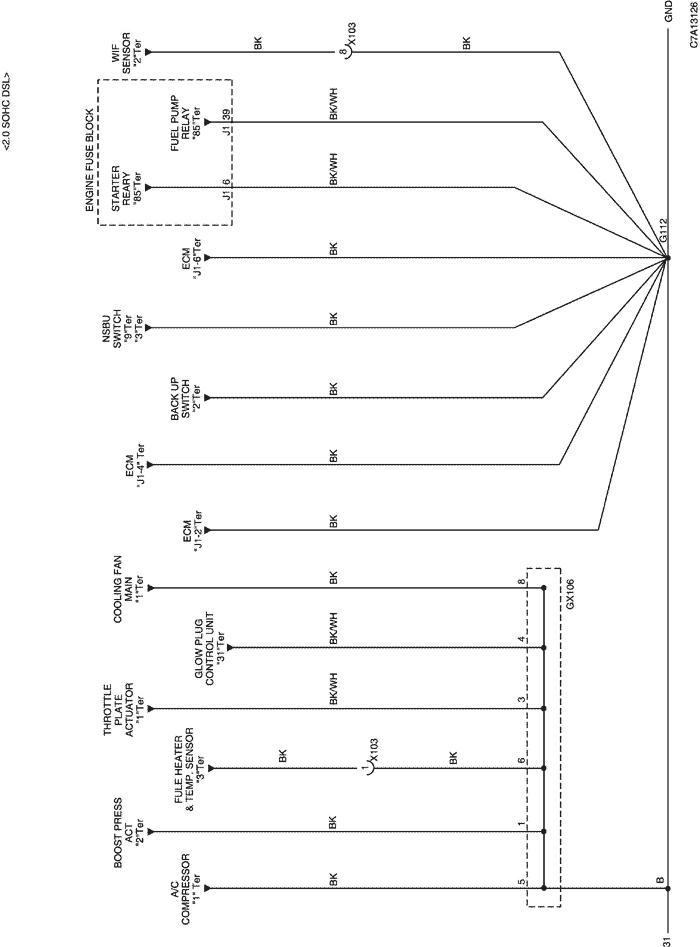

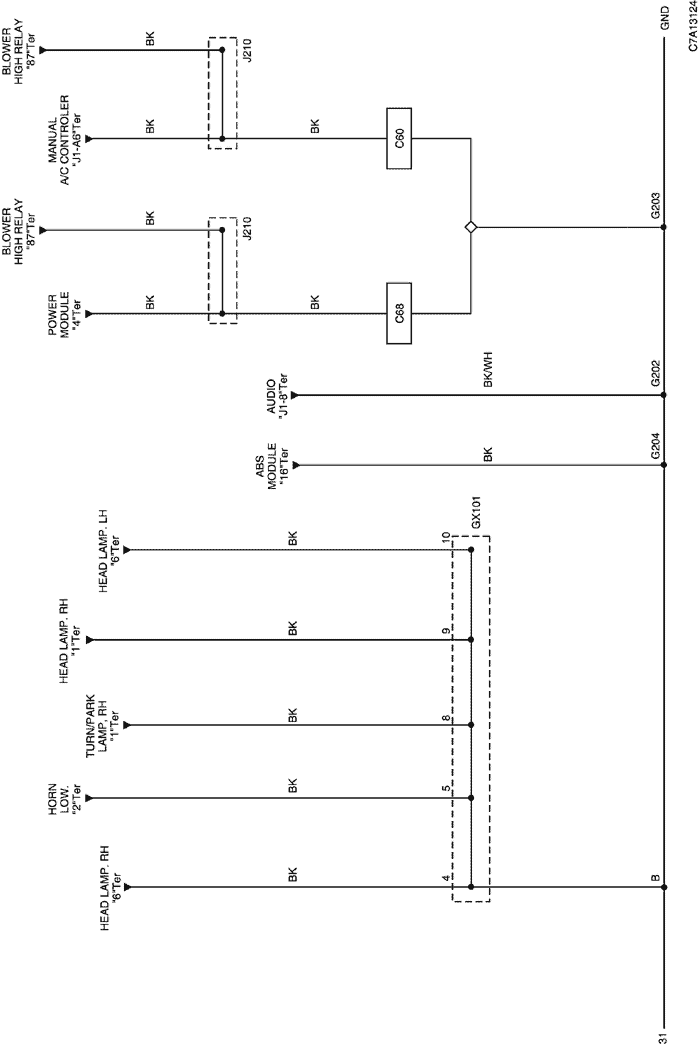

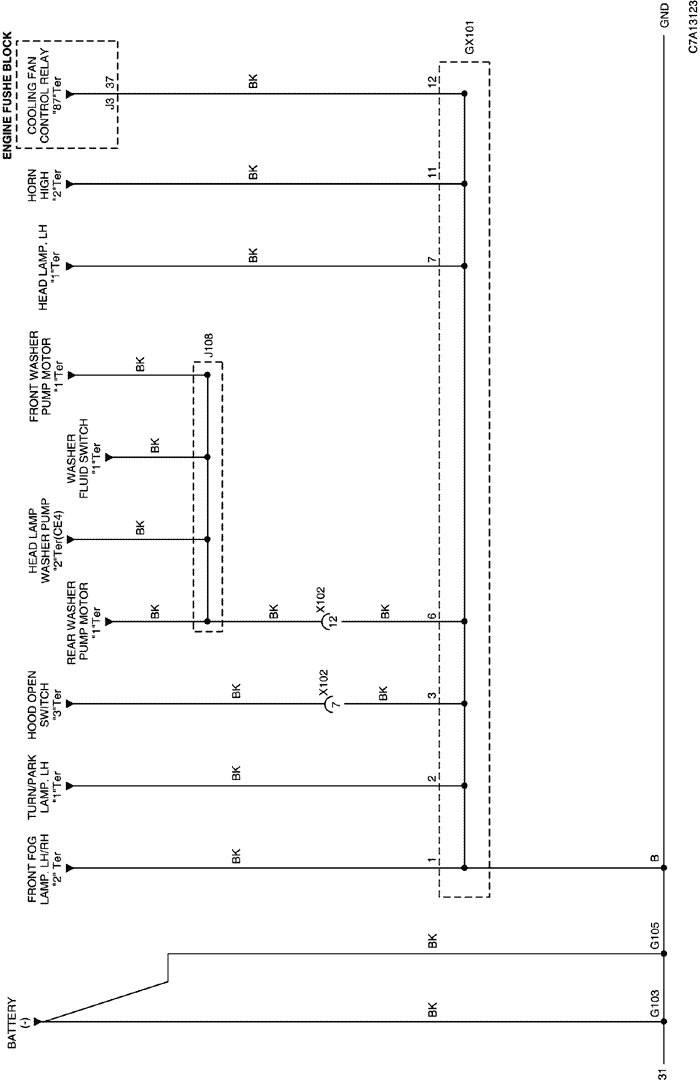

5. GROUND & GROUND PACK

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics
