Cruze

Engine Mount Replacement

1. Remove the engine sight shield. Refer to Engine Sight Shield Replacement .
2. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
3. Install the engine lifter to the engine lift rear bracket.

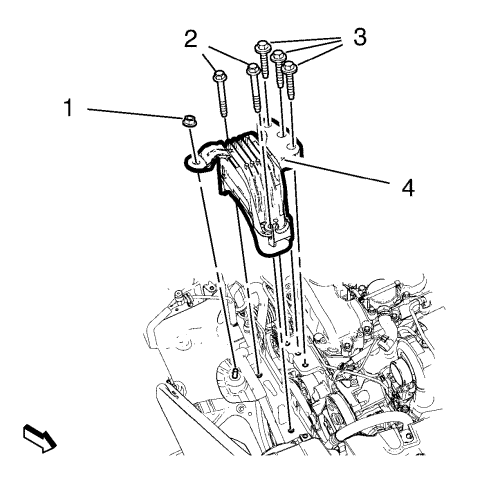

4. Remove the 5 engine mount bolts (2, 3) and the engine mount nut (1).
5. Remove the engine mount (4).

1. Install the engine mount (4).

Note: Do not tighten the bolts.

2. Install the 3 engine mount to bracket bolts (3). DO NOT reuse the engine mount to bracket bolts (3) to install the mount (4). Use NEW bolts only.

Caution: Refer to Fastener Caution in the Preface section.

3. Install the 2 engine mount to body bolts (2) and the engine mount to body nut (1).

•	Tighten the 2 engine mount to body bolts (2) to 62 N·m (46 lb ft).

•	Tighten the engine mount to body nut (1) to 62 N·m (46 lb ft).

•	Tighten the 3 NEW engine mount to bracket bolts (3) to 50 N·m + 60° - 75° (37 lb ft + 60° - 75°).

4. Remove the engine lifter from the rear engine lift bracket.
5. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
6. Install the engine sight shield. Refer to Engine Sight Shield Replacement .
