Crankshaft Pulley Removal

Special Tools

    • EN-50432 Adaptor Flywheel Fixing
    • EN-50436 Remover-Crankshaft Pulley Bolt .

For equivalent regional tools, refer to Special Tools .


    2373376

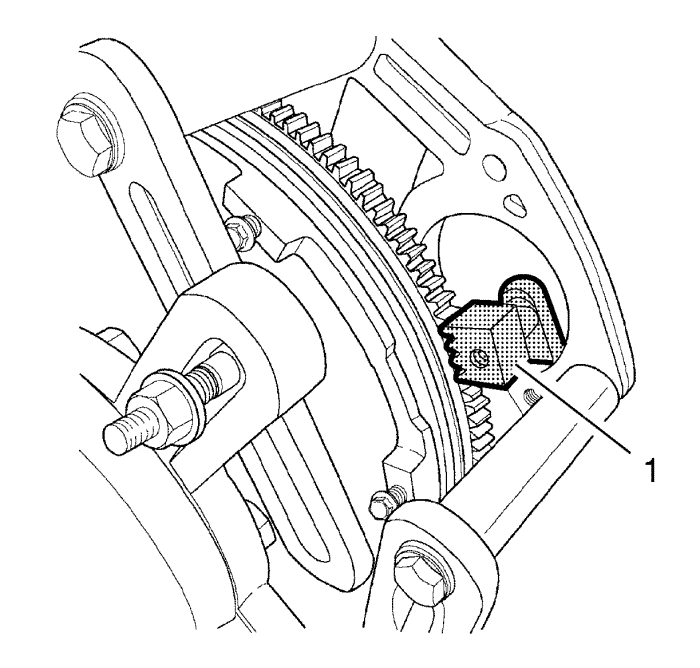

  1. Install the EN-50432 flywheel fixing (1).

    2. 2373377

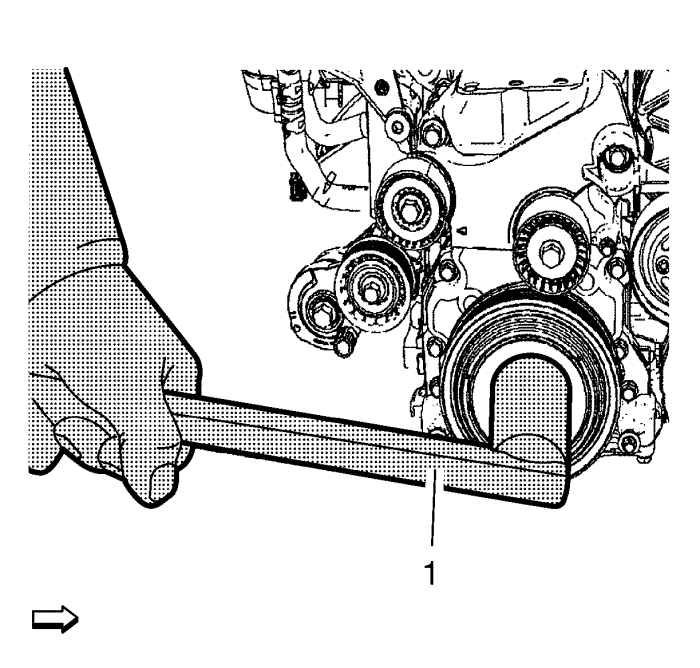

  2. Loosen the crankshaft pulley bolt with EN-50436 remover (1).

    3. 2373199

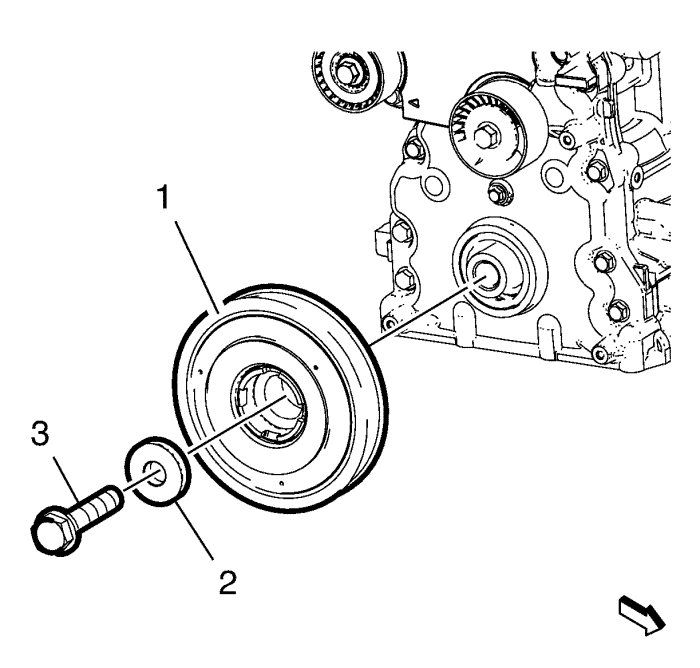

  3. Remove the crankshaft pulley bolt (3) and washer (2).
  4. Remove the crankshaft pulley (1).
  5. Remove the EN-50432 flywheel fixing .
