Service Information

Cruze

Air Conditioning Compressor Bracket Replacement — 1.4L LUJ

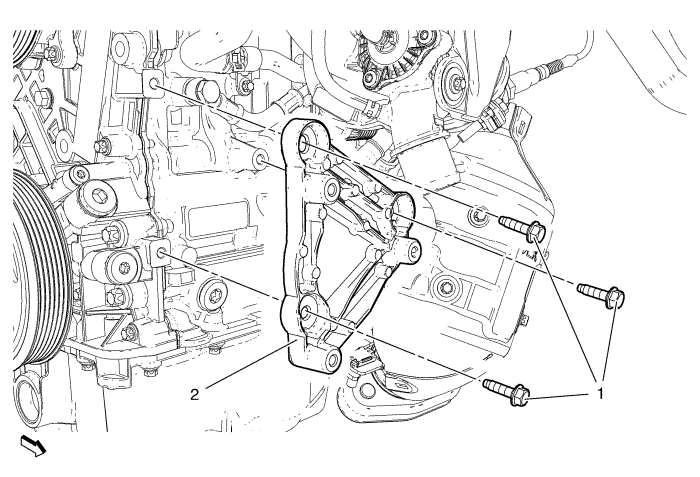

Callout	Component Name
Preliminary Procedures Remove air conditioning compressor. Refer to Air Conditioning Compressor Replacement : LNP → LUJ → LXT, L2W → LDE, LFH, LLU, LXV, and 2H0 → LLW .
1	Air Conditioning Compressor Bracket Bolt (Qty: 3) Caution: Refer to Fastener Caution in the Preface section. Tighten 22 N·m (16 lb ft)
2	Air Conditioning Compressor Bracket

Callout

Component Name

Remove air conditioning compressor. Refer to Air Conditioning Compressor Replacement : LNP → LUJ → LXT, L2W → LDE, LFH, LLU, LXV, and 2H0 → LLW .

Air Conditioning Compressor Bracket Bolt (Qty: 3)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
22 N·m (16 lb ft)

Air Conditioning Compressor Bracket
