Preliminary Procedure

1. Open the bonnet.
2. Drain the cooling system. Refer to Cooling System Draining and Filling .

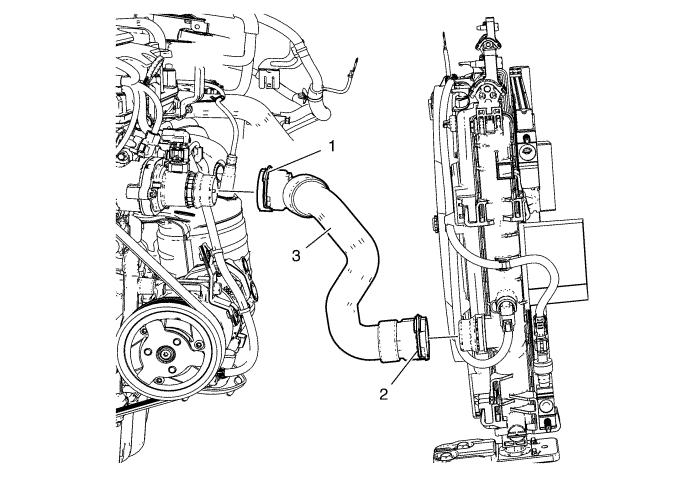

1

Radiator Outlet Hose Connector

Procedure

1. Place a drain pan below the vehicle.
2. Unlock radiator outlet hose connector.

2

Radiator Outlet Hose Connector

Procedure

Unlock the radiator outlet hose connector.

3

Radiator Outlet Hose
