Preliminary Procedures

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
2. Remove the tyre and wheel assemblies. Refer to Tyre and Wheel Removal and Installation .
3. For vehicles with electric parking brake, remove parking brake cable from support. Refer to Handbrake Cable Replacement : Conventional Handbrake .
4. Remove the equalizing beam centre link. Refer to Equalizer Beam Centre Link Replacement .

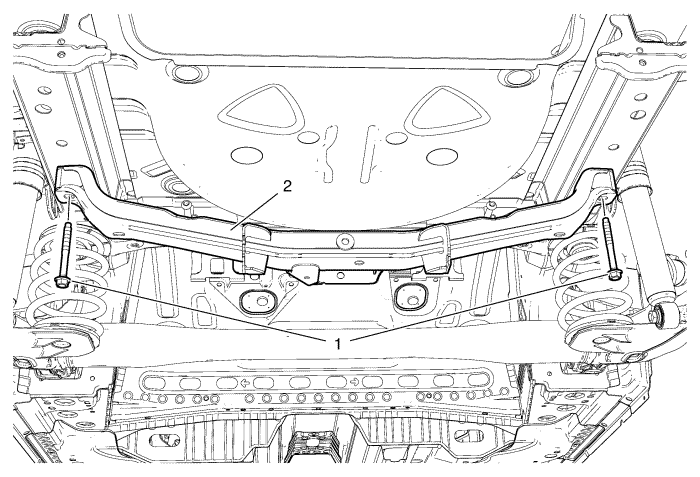

1

Equaliser Beam Support Bolts (Qty: 2)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
100 N·m (74 lb ft)

2

Equaliser Beam Support
