Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

1

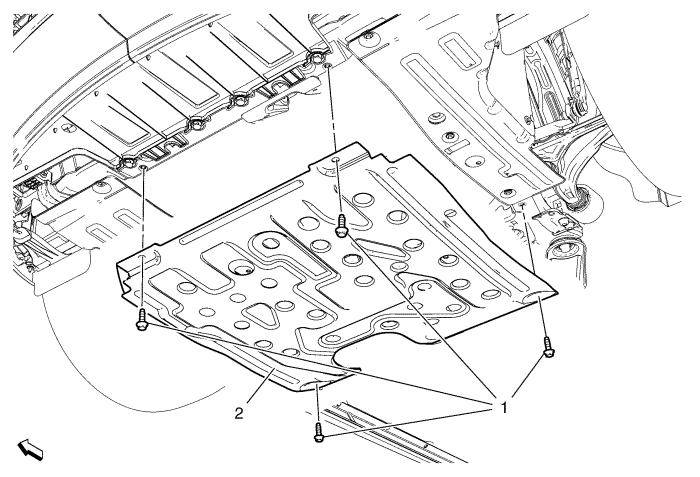

Engine Shield Bolt (Qty: 4)

Caution : Refer to Fastener Caution in the Preface section.

Tighten
40 N·m (30 lb ft)

2

Engine Shield
