Cruze |
||||||||
|
|
|
|||||||

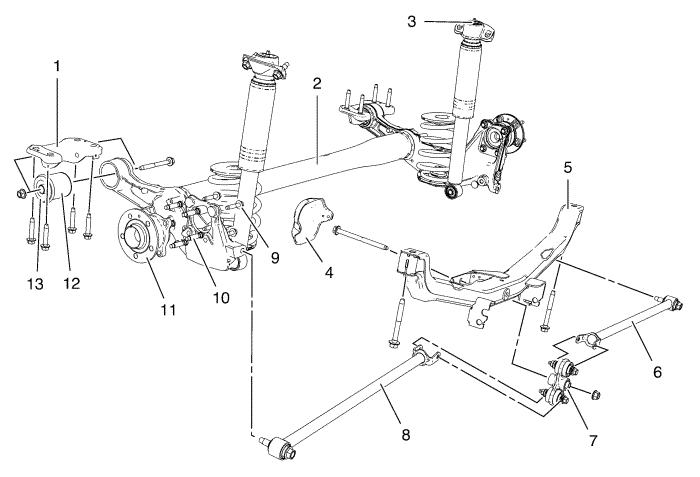

| (1) | Rear Axle Bracket |
| (2) | Rear Axle |
| (3) | Rear Shock Absorber |
| (4) | Equaliser Beam Heat Shield |
| (5) | Equaliser Beam Support |
| (6) | Right Equaliser Beam Link |
| (7) | Centre Equaliser Beam Link |
| (8) | Left Equaliser Beam Link |
| (9) | Wheel Hub and Bearing Assembly Bolt |
| (10) | Wheel Stud |
| (11) | Wheel Hub and Bearing Assembly |
| (12) | Rear Axle Bushing |
| (13) | Rear Axle Bushing Alignment Mark |
