Service Information

Cruze

Manifold Absolute Pressure Sensor Replacement - 1.8L 2H0 and LUW

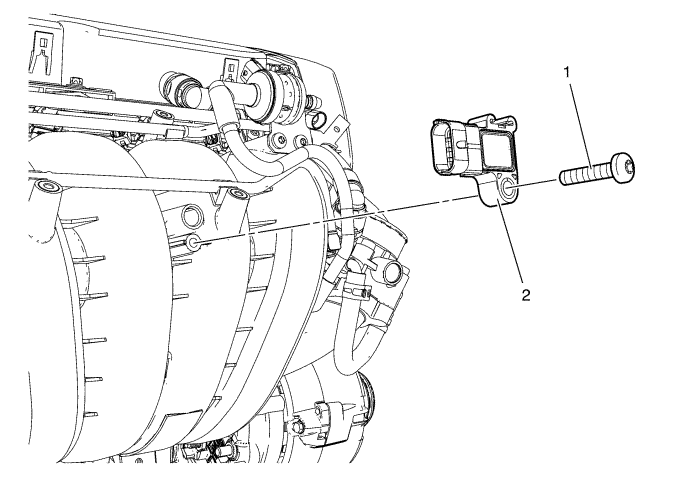

Callout	Component Name
1	Manifold Absolute Pressure Sensor Bolt Caution: Refer to Fastener Caution in the Preface section. Tighten 6 N·m (53 lb in)
2	Manifold Absolute Pressure Sensor Procedure Disconnect the electrical connector.

Callout

Component Name

Manifold Absolute Pressure Sensor Bolt

Caution: Refer to Fastener Caution in the Preface section.

Tighten
6 N·m (53 lb in)

Manifold Absolute Pressure Sensor

Disconnect the electrical connector.
