Preliminary Procedures

Remove the rear backrest - right hand side. Refer to Rear Seat Replacement : 60 Percent Seat → 40 Percent Seat .

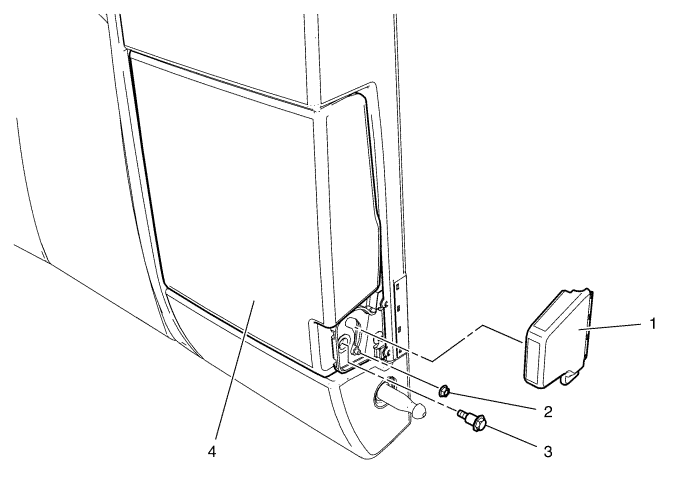

1

Rear Seat Armrest Hinge Cover

Procedure

Release four tabs and carefully slide the cover forward.

2

Rear Seat Armrest Hinge Nut

Caution: Refer to Fastener Caution in the Preface section.

Tighten
4.5 N·m (40 lb in)

3

Rear Seat Armrest Hinge Bolt

Tighten
9 N·m (80 lb in)

4

Rear Seat Armrest

Procedure

Position the stud so that it could pass the armrest bracket.
