Service Information

Cruze

Manifold Absolute Pressure Sensor Replacement

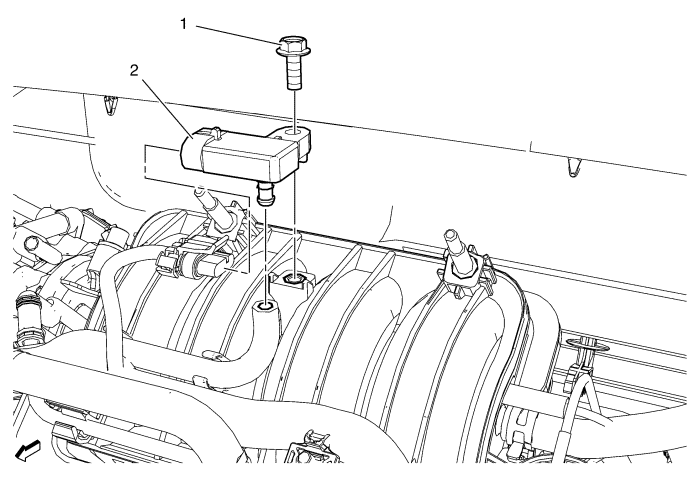

Callout	Component Name
Preliminary Procedure Remove the engine sight shield. Refer to Engine Sight Shield Replacement .
1	Manifold Absolute Pressure Sensor Bolt Caution: Refer to Fastener Caution in the Preface section. Tighten: 8 N·m (7 lb in)
2	Manifold Absolute Pressure Sensor

Callout

Component Name

Remove the engine sight shield. Refer to Engine Sight Shield Replacement .

Manifold Absolute Pressure Sensor Bolt

Caution: Refer to Fastener Caution in the Preface section.

Tighten:
8 N·m (7 lb in)

Manifold Absolute Pressure Sensor
