Clutch Actuator Cylinder Installation

Table 1:	Clutch Actuator Cylinder Pipe Installation
Table 2:	Clutch Actuator Cylinder Installation
Table 3:	Clutch Actuator Cylinder Pipe Screw Installation

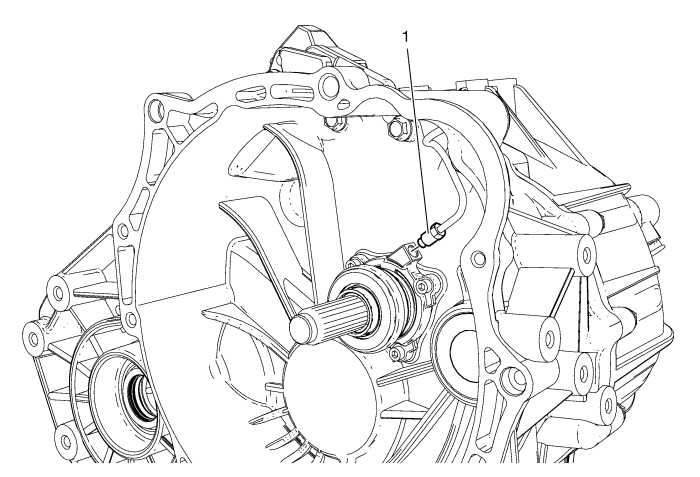

Callout	Component Name
1	Clutch Actuator Cylinder Connector
2	Clutch Actuator Cylinder Pipe

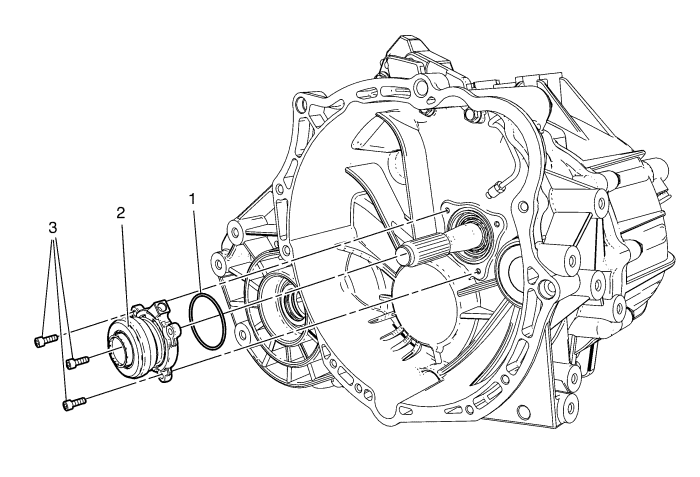

Callout	Component Name
1	Clutch Actuator Cylinder Seal
2	Clutch Actuator Cylinder
3	Clutch Actuator Cylinder Bolt (Qty: 3) Caution: Refer to Fastener Caution in the Preface section. Tighten 7 N·m (62 lb in)

Callout

Component Name

Clutch Actuator Cylinder Seal

Clutch Actuator Cylinder

Clutch Actuator Cylinder Bolt (Qty: 3)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
7 N·m (62 lb in)

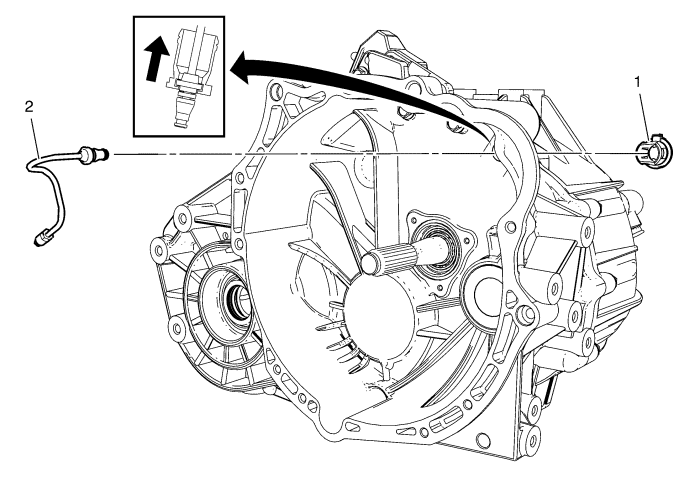

Callout	Component Name
1	Clutch Actuator Cylinder Pipe Screw Tighten 18 N·m (13 lb in)
