Clutch and Differential Housing

Tip

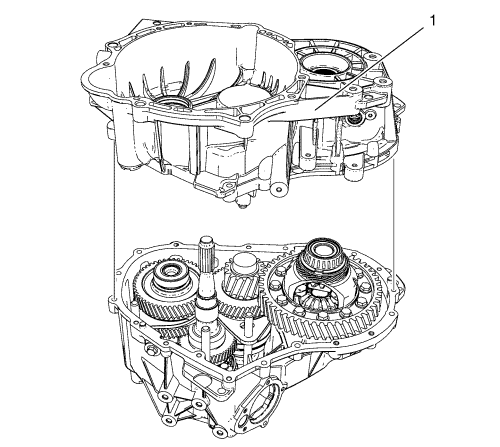

Apply sealer (LOCTITE 5203) to the transmission case to clutch and differential housing mating surface.

Tip
The input and output shaft must engage in its bearing in the clutch and differential housing.

Tip
The gear selector forks sit in their opposing bearings in the clutch and differential housing.

1

Old Intermediate Shaft Bearing Retainer

Tip

Special Tools

DT-48225 Input Shaft Holder

1

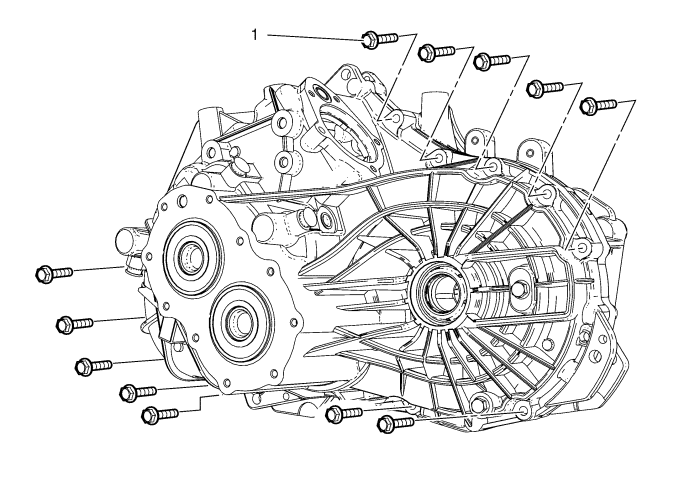

Transmission Case Bolts (Qty: 8)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
20-25 N·m (15-18 lb ft)

2

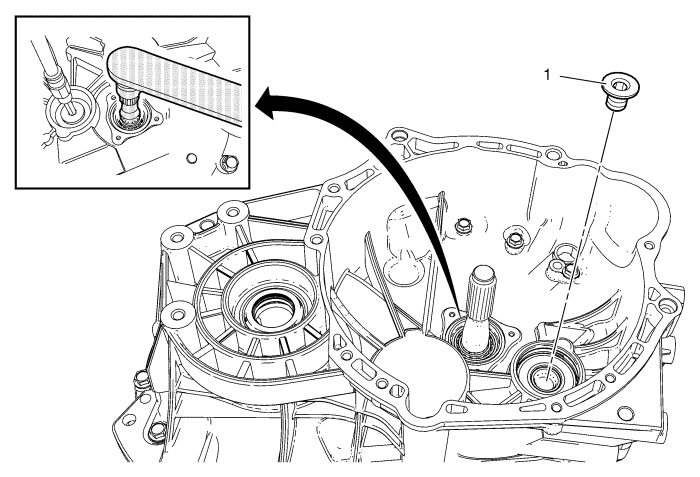

Intermediate Shaft Bearing Retainer

Procedure

1. Remove the old intermediate shaft bearing retainer.
2. Install a new intermediate shaft bearing retainer.
3. Remove the DT-48225 input shaft holder.

Tighten
90-100 N·m (66-74 lb ft)

1

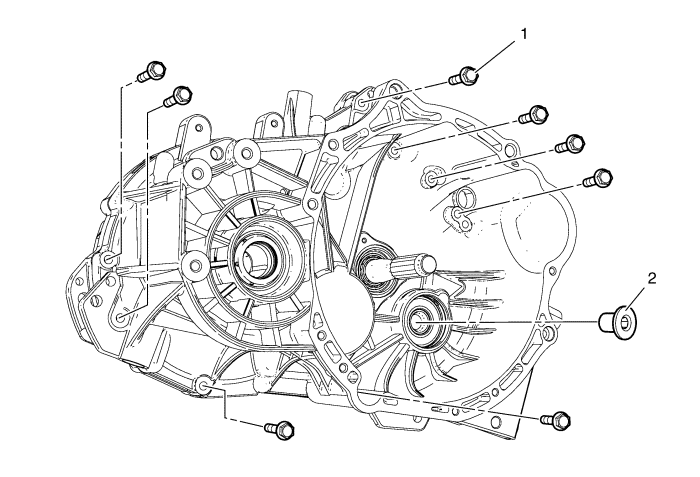

Transmission Case Bolts (Qty: 12)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
20-25 N·m (15-18 lb ft)

1

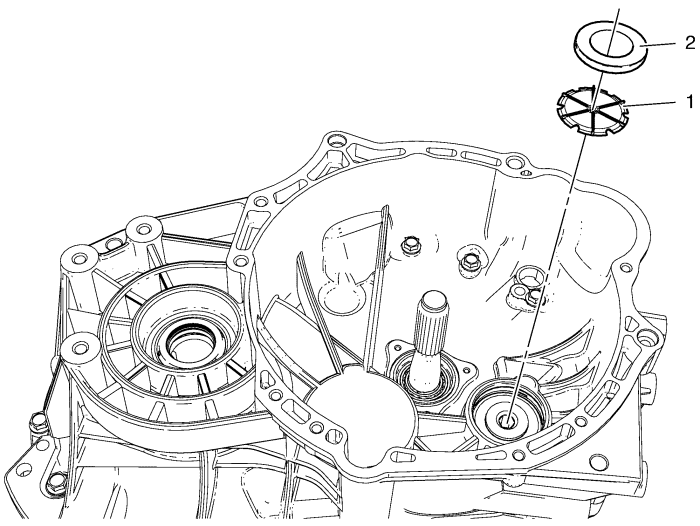

Intermediate Shaft Bearing Oil Slinger

2

Intermediate Shaft Plug
