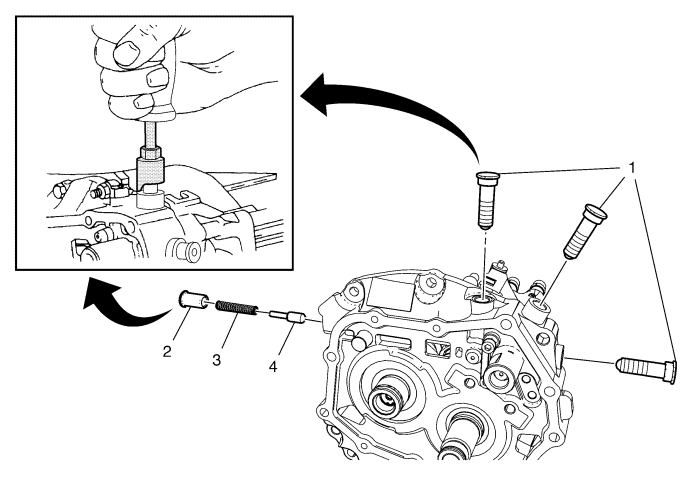

Shift Shaft Detent Removal


2188692

Callout

Component Name

1

Shift Shaft Detents (Qty: 3)

Special Tools

    • DT-7004 Sliding Hammer
    • DT-42469 Selector Rod Remover

2

Shift Shaft Detent Spring Cover

Special Tools

    • DT-7004 Sliding Hammer
    • DT-42469 Selector Rod Remover

3

Reverse Shift Shaft Detent Spring

4

1st and Reverse Gear Synchroniser Retainer
